8x10 Garden Shed
- Size
- 8′ W × 10′ D
- Peak Height
- 8′
- Roof Style
- Gable
- Build Time
- 1-2 weekends
- Est. Material Cost
- $1,200 - $1,900
- Square Footage
- 80 sq ft
- Roof Pitch
- 4/12 gable
- Wall Height
- 7'-0"
- Door
- 3' panelled entry door
- Foundation
- Pressure-Treated Skid
- Windows
- 1
- Snow Load
- 40 psf (standard residential)
- Wind Rating
- 110 mph (Exposure B)
An 8x10 gable garden shed with a panelled entry door and side window — beginner-friendly, full 3D-rendered plan set.
Instant PDF Download
Get your plans immediately after purchase — no waiting, no shipping.
Plan Drawings & Blueprints
Professional architectural drawings included with this plan

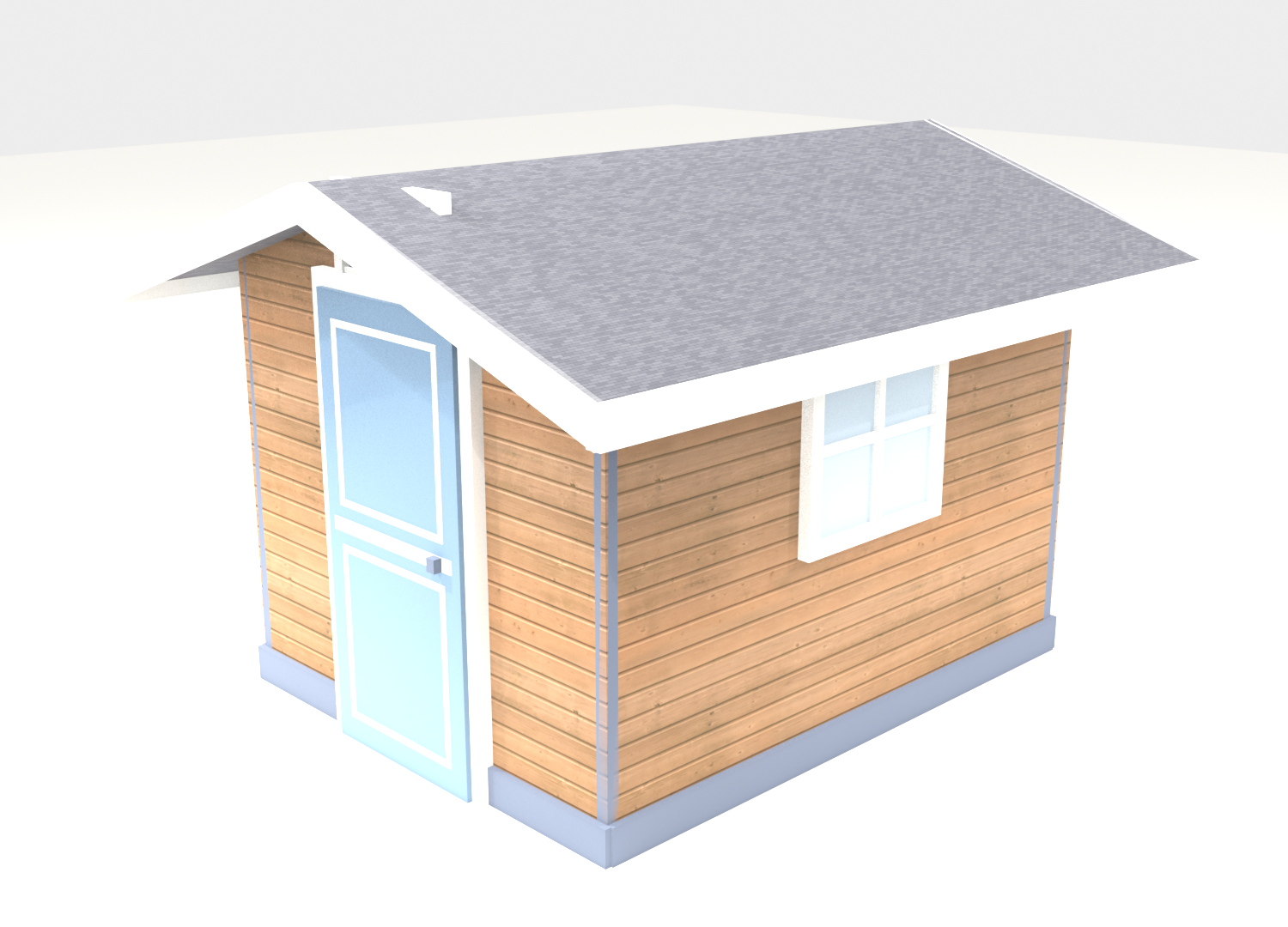

render3D Render - 8x10 garden shed with panelled door and cedar siding

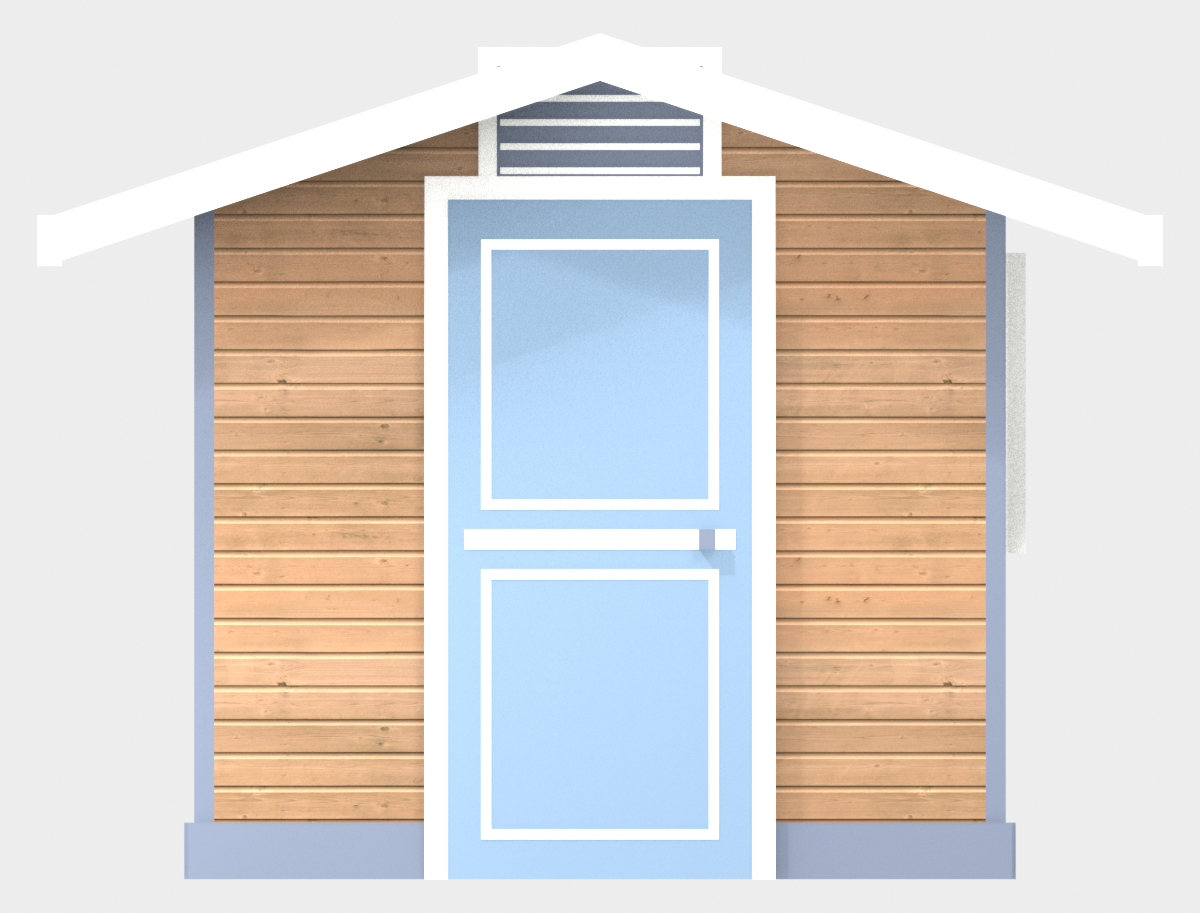

blueprintLeft Elevation - 3ft panelled entry door and gable vent

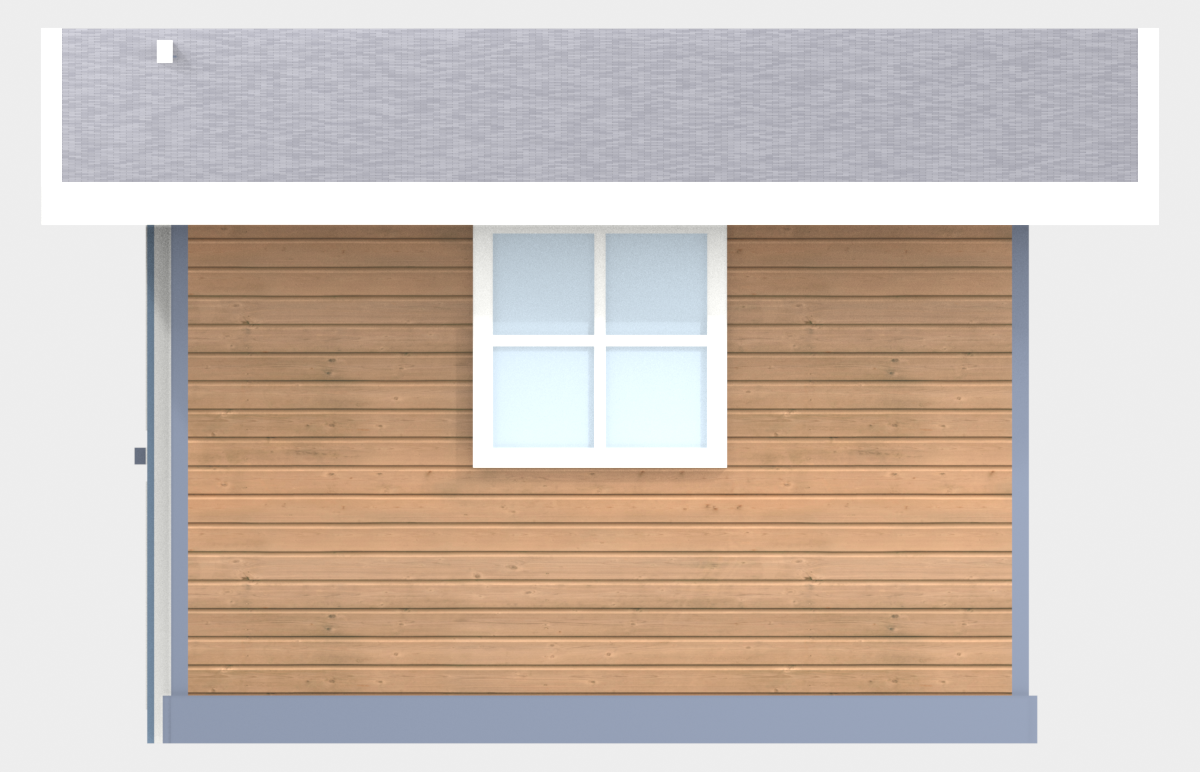

blueprintFront Elevation - side window on the 10ft eave wall
blueprintRight Elevation - solid back gable end

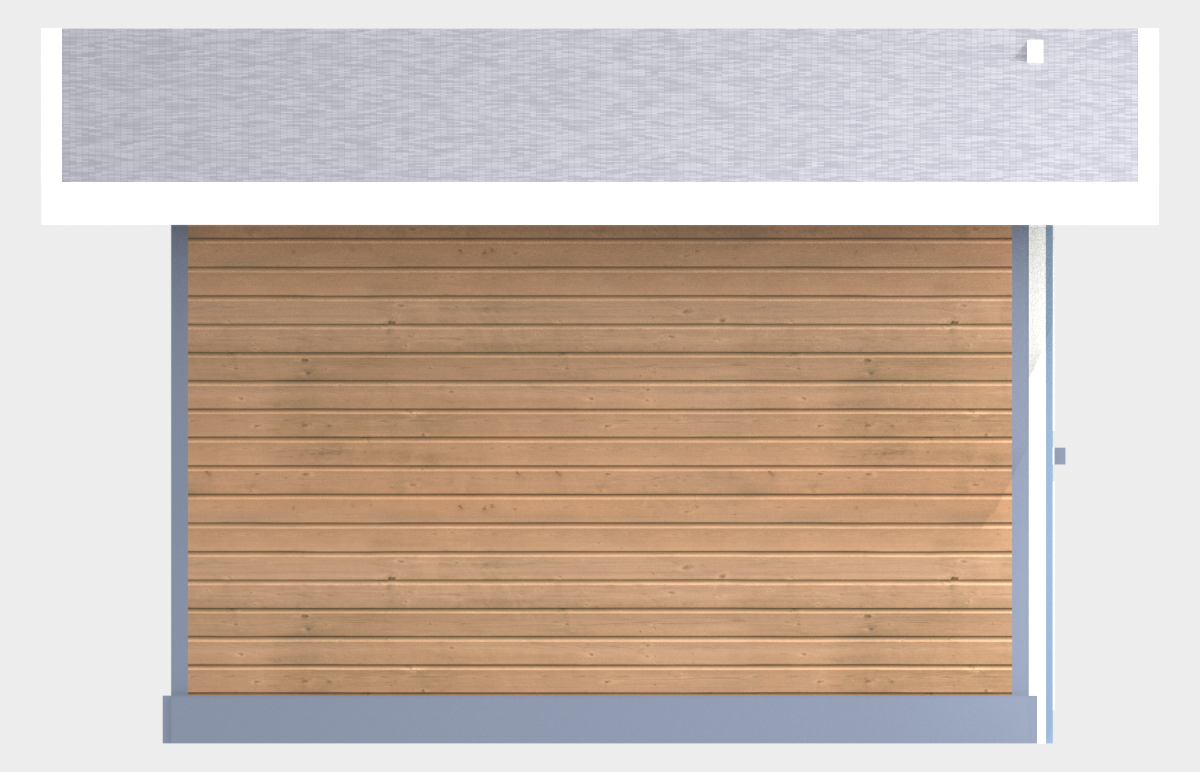

blueprintBack Elevation - solid 10ft eave wall

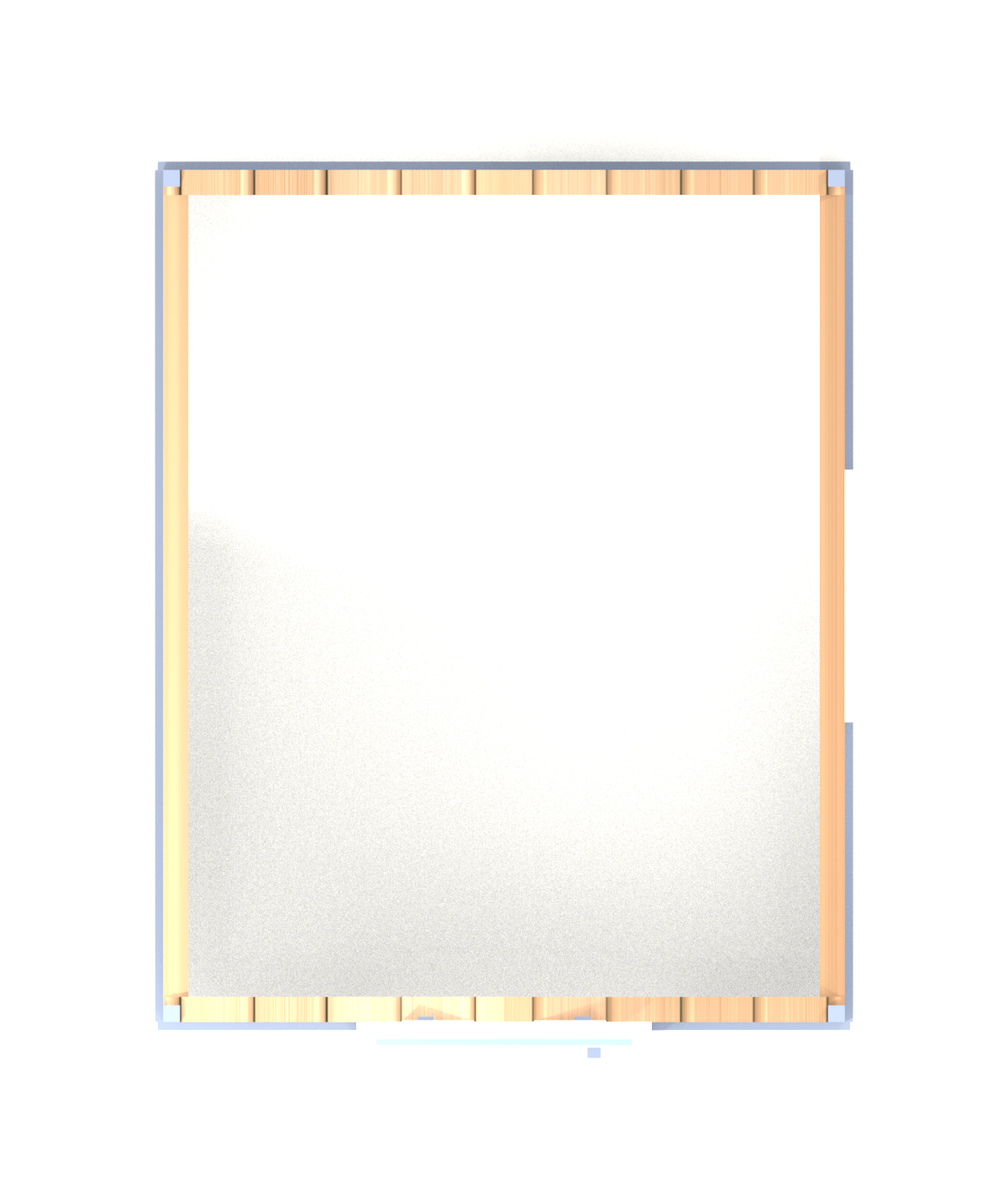

blueprintFloor Plan - 8ft x 10ft footprint
Description
A compact 8x10 gable garden shed with a panelled entry door on the gable end and a bright side window — the perfect first build for tools, a mower, and potting supplies. The design uses simple, common-lumber framing: 2x4 walls at a comfortable 7-foot height, 2x6 rafters at a low, neighbourly 4/12 pitch, and an asphalt-shingle roof over plywood sheathing on a pressure-treated skid foundation. Cedar lap siding, corner boards, a base skirt, and a louvered gable vent give it a finished look. Every view in the plan set — front, back, both gable ends, and the floor plan — was modeled and rendered in 3D so you can see exactly what you are building before the first cut.
Building Overview
The Perfect First Build
This 8x10 garden shed packs 80 square feet of storage under a low, neighbourly gable roof — ideal for garden tools, a push or small riding mower, wheelbarrows, and potting supplies. A single 3-foot panelled entry door on the gable end and a bright side window keep the interior usable and welcoming. The proportions and detailing follow a standard ShedPlans-style layout, so the framing is beginner-friendly and uses common lumber dimensions throughout.
Framing & Structure
The shed sits on a simple pressure-treated skid foundation over a compacted gravel pad, with a 2x6 floor frame decked in 3/4-inch plywood. Walls are framed from 2x4 studs at 16 inches on center with 4x4 corner posts, standing a comfortable 7 feet to the eave. The window and door openings use 2x6 headers. The roof is built from eighteen 2x6 rafters at a gentle 4/12 pitch on a full-length ridge board, sheathed with plywood and finished with building paper and asphalt shingles over a metal drip edge.
Finish & Ventilation
Cedar lap siding, corner boards, and a base skirt give the shed a finished, residential look, while a louvered gable vent above the door keeps air moving through the roof space. The included plan set shows every exterior face — front, back, and both gable ends — plus a dimensioned floor plan, all generated from a true 3D model so the drawings match what you build.
Features
- 3 ft panelled entry door on the gable end
- Side window for natural daylight
- Low 4/12 gable roof with louvered gable vent
- Cedar lap siding with corner boards and base skirt
- Simple 2x4 wall framing on a pressure-treated skid base
- Full 3D-rendered elevations and floor plan
Complete Material List
Every board, nail, and shingle — nothing left to guess
5Foundation & Floor
| Item | Qty | Size | Notes |
|---|---|---|---|
| 4x4 Pressure Treated Skids | 3 | 10' lengths | Run front-to-back under the floor |
| Gravel Base | 1.5 cubic yards | N/A | Compacted pad under skids |
| 2x6 Pressure Treated | 10 | 8' lengths | Floor joists, 16" on center |
| 2x6 Pressure Treated | 2 | 10' lengths | Floor rim joists |
| 3/4" Plywood Sheathing | 3 sheets | 4' x 8' | Floor deck |
5Wall Framing
| Item | Qty | Size | Notes |
|---|---|---|---|
| 2x4 Pressure Treated | 32 | 8' lengths | Wall studs, all four walls, 16" OC |
| 4x4 Pressure Treated | 4 | 8' lengths | Corner posts |
| 2x4 Pressure Treated | 8 | 10' lengths | Top and bottom plates, long walls |
| 2x4 Pressure Treated | 4 | 8' lengths | Top and bottom plates, gable walls |
| 2x6 Pressure Treated | 3 | 8' lengths | Door and window headers |
3Roof Framing
| Item | Qty | Size | Notes |
|---|---|---|---|
| 2x6 Pressure Treated | 18 | 8' lengths | Rafters, ~4'-9" long, 4/12 pitch |
| 2x6 Pressure Treated | 1 | 10' length | Ridge board |
| 2x4 Pressure Treated | 4 | 8' lengths | Collar ties |
5Roofing
| Item | Qty | Size | Notes |
|---|---|---|---|
| 1/2" Plywood Sheathing | 5 sheets | 4' x 8' | Roof deck |
| Building Paper (Felt) | 1 roll | 36" x 144' | Roof underlayment |
| Asphalt Shingles | 4 bundles | Standard | Approx 120 sq ft coverage |
| Metal Drip Edge | 46 ft | 6" width | All roof edges |
| Ridge Cap Shingles | 1 bundle | Standard | Ridge line |
4Siding & Trim
| Item | Qty | Size | Notes |
|---|---|---|---|
| Cedar Lap Siding | 14 pieces | 8-1/4" x 10' | Exterior walls |
| 1x4 Trim Boards | 10 pieces | 8' lengths | Corner boards and casing |
| 1x6 Fascia | 4 pieces | 10' lengths | Eave fascia and rake boards |
| Wood Square Louver Gable Vent | 1 | Approx 12" x 8" | Door gable end |
2Doors & Windows
| Item | Qty | Size | Notes |
|---|---|---|---|
| Pre-hung Entry Door | 1 | 36" x 80" | Gable end, panelled |
| Fixed Window + Glass & Beading | 1 | 30" x 30" | Side eave wall, 4-lite |
6Hardware & Fasteners
| Item | Qty | Size | Notes |
|---|---|---|---|
| Door Hinges | 3 | 4" | Entry door |
| Door Handle Set | 1 | Standard | Entry door |
| Window Lock | 1 | Standard | Side window |
| Galvanized Nails | 8 lbs | Assorted | Framing and siding |
| Wood Screws | 4 lbs | 3" | General assembly |
| Exterior Stain / Paint | 3 gallons | N/A | 2 coats all exterior surfaces |
Cut List
Pre-calculated cuts — take this list straight to the lumber yard
Floor Frame
Material: 2x6 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 10'-0" | 2 | Square | Rim joists |
| 7'-9" | 8 | Square | Floor joists, 16" OC |
Door-End Wall Frame (Gable)
Material: 2x4 / 4x4 / 2x6 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 6'-8 1/4" | 4 | Square | 2x4 studs |
| 6'-8 1/4" | 2 | Square | 4x4 corner studs |
| 6'-10" | 2 | Square | 2x4 door jack studs |
| 3'-3" | 2 | Square | 2x6 door header |
| 8'-0" | 2 | Square | Top/bottom plates |
Back-End Wall Frame (Gable)
Material: 2x4 / 4x4 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 6'-8 1/4" | 6 | Square | 2x4 studs |
| 6'-8 1/4" | 2 | Square | 4x4 corner studs |
| 8'-0" | 2 | Square | Top/bottom plates |
Window Wall Frame (Eave)
Material: 2x4 / 2x6 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 6'-8 1/4" | 6 | Square | 2x4 studs |
| 3'-6" | 2 | Square | 2x4 cripple / sill studs |
| 2'-9" | 2 | Square | 2x6 window header |
| 10'-0" | 2 | Square | Top/bottom plates |
Back Wall Frame (Eave)
Material: 2x4 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 6'-8 1/4" | 8 | Square | 2x4 studs |
| 10'-0" | 2 | Square | Top/bottom plates |
Roof Frame
Material: 2x6 Pressure Treated
| Length | Qty | Angle | Notes |
|---|---|---|---|
| 4'-9" | 18 | 4/12 pitch birdsmouth and plumb cuts | Rafters, 9 pairs |
| 10'-0" | 1 | Square | Ridge board |
What's Included
- Printable PDF plan set (7 pages)
- Front, back, and both gable-end elevations
- Top-down floor plan with dimensions
- Complete material list
- Cut list with board counts and lengths
- Foundation and framing guidance
Specifications
- Floor Area
- 80 sq ft
- Roof Pitch
- 4/12 gable
- Wall Height
- 7'-0"
- Door
- 3' panelled entry door
- Windows
- 1
- Foundation
- Pressure-Treated Skid
- Roofing
- Asphalt Shingles
- Siding
- Cedar Lap Siding
- Floor
- 3/4" Plywood on 2x6 Joists
- Snow Load
- 40 psf (standard residential)
- Wind Rating
- 110 mph (Exposure B)
Estimated Material Cost
$2,488 – $3,512
Based on 8′×10′ footprint · Midwest avg. pricing
- Framing Lumber
- $718
- Roofing
- $369
- Siding
- $755
- Foundation
- $184
- Hardware
- $265
- Doors & Windows
- $386
- Paint / Stain
- $250
- Mid-range Total
- $2,927
Estimate uses mid-2026 US avg. prices. Adjust region, roofing, siding, and foundation in the full calculator.
