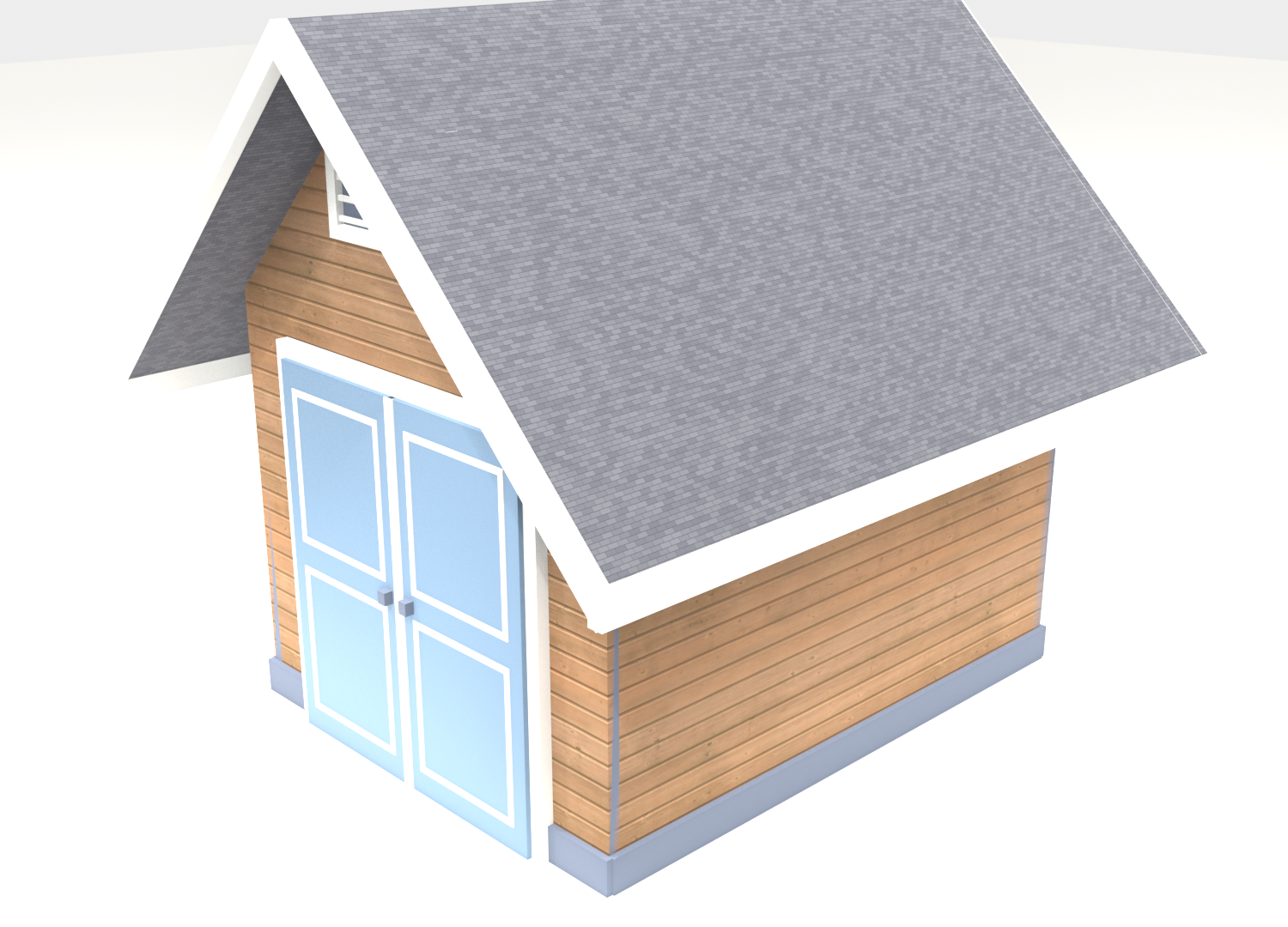

3D Render - 8x10 storage shed with double doors and cedar siding

8x10 Storage Shed

Small Shedbeginner

Size: 8′ W × 10′ D
Peak Height: 11′
Roof Style: Gable
Build Time: 1-2 weekends
Est. Material Cost: $1,200 - $1,900

Square Footage: 80 sq ft
Roof Pitch: 12/12 gable
Wall Height: 7'-0"
Door: 5'-4" double doors
Foundation: Concrete Footing + Brick, or PT Skids
Windows: 0
Snow Load: 40 psf (standard residential)
Wind Rating: 110 mph (Exposure B)

An 8x10 gable storage shed with a 5ft-4in double-door opening and steep 12/12 roof — full 3D-rendered plan set.

Instant PDF Download

Get your plans immediately after purchase — no waiting, no shipping.

Blueprints

Plan Drawings & Blueprints

Professional architectural drawings included with this plan

render

3D Render - 8x10 storage shed with double doors and cedar siding

blueprint

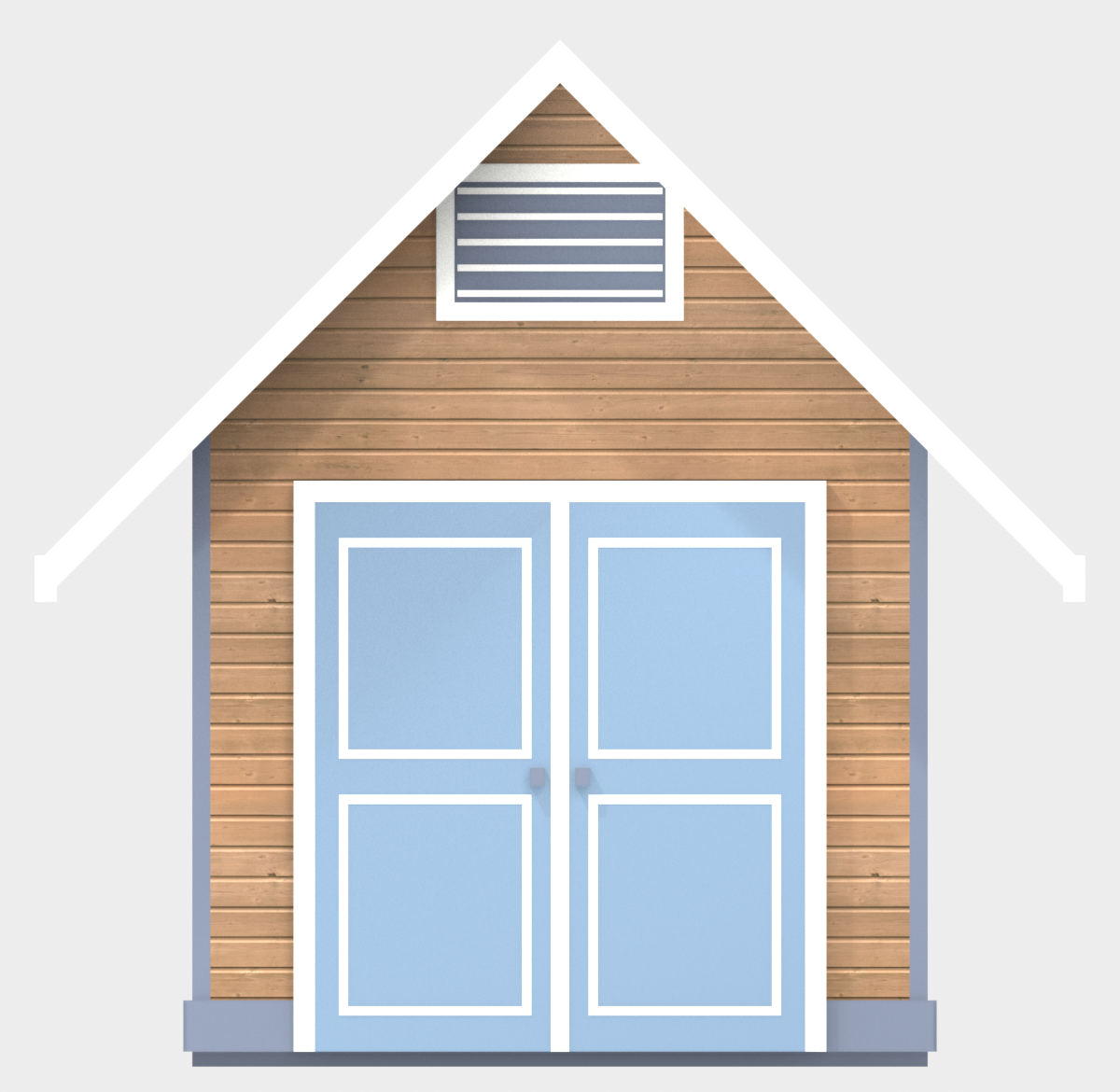

Left Elevation - double doors and gable vent

blueprint

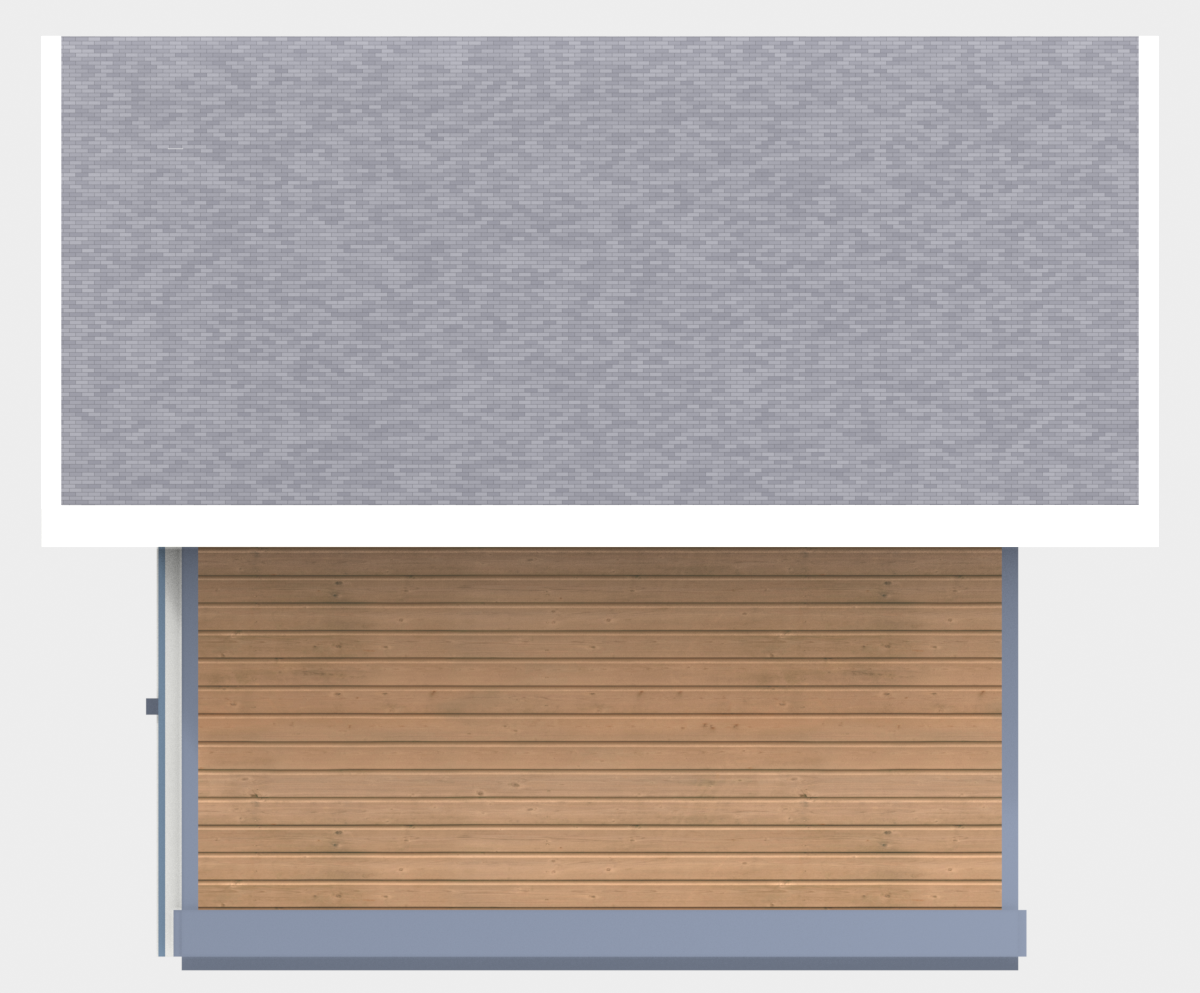

Front Elevation - solid 10ft eave wall

blueprint

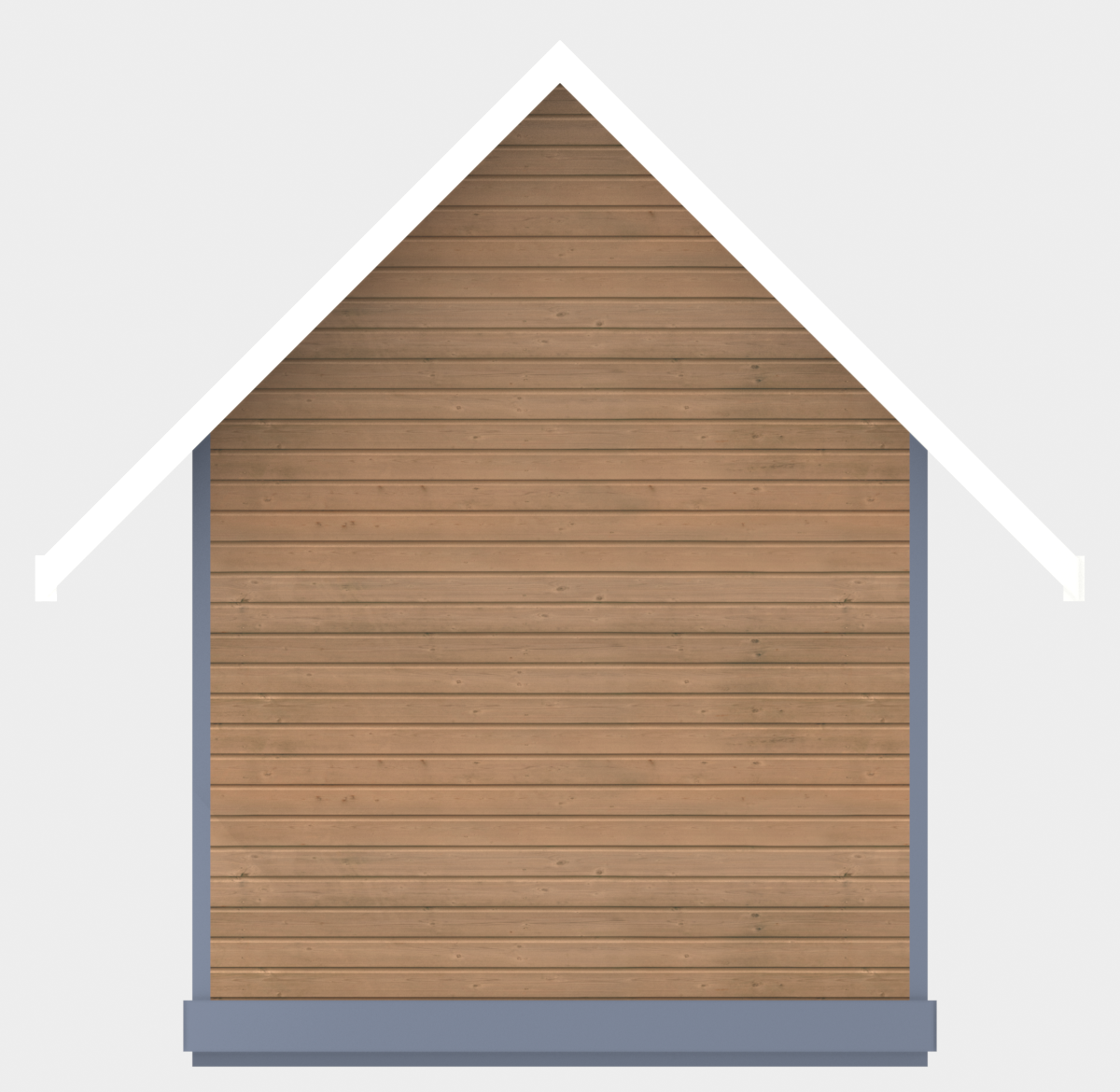

Right Elevation - solid back gable end

blueprint

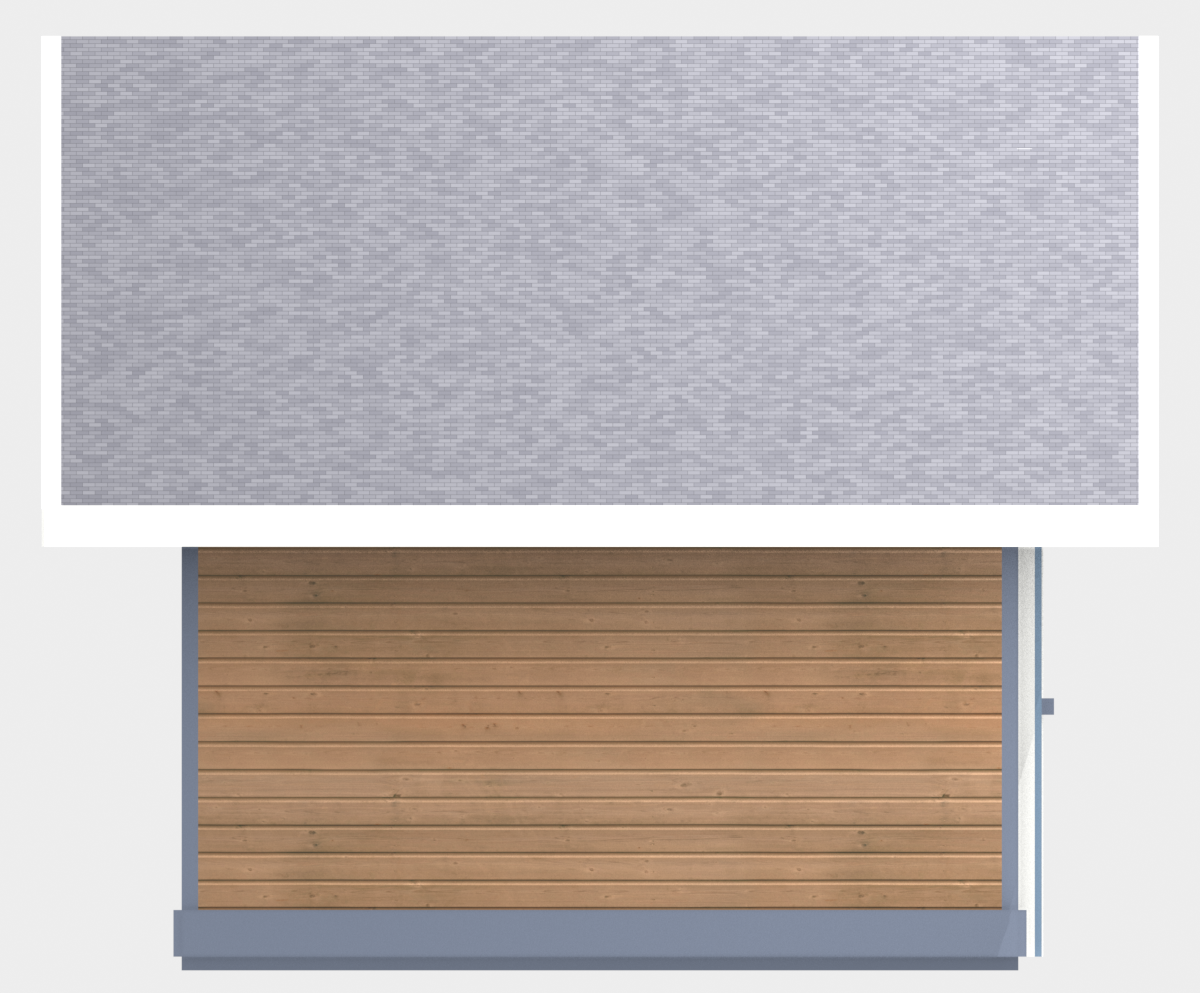

Back Elevation - solid 10ft eave wall

blueprint

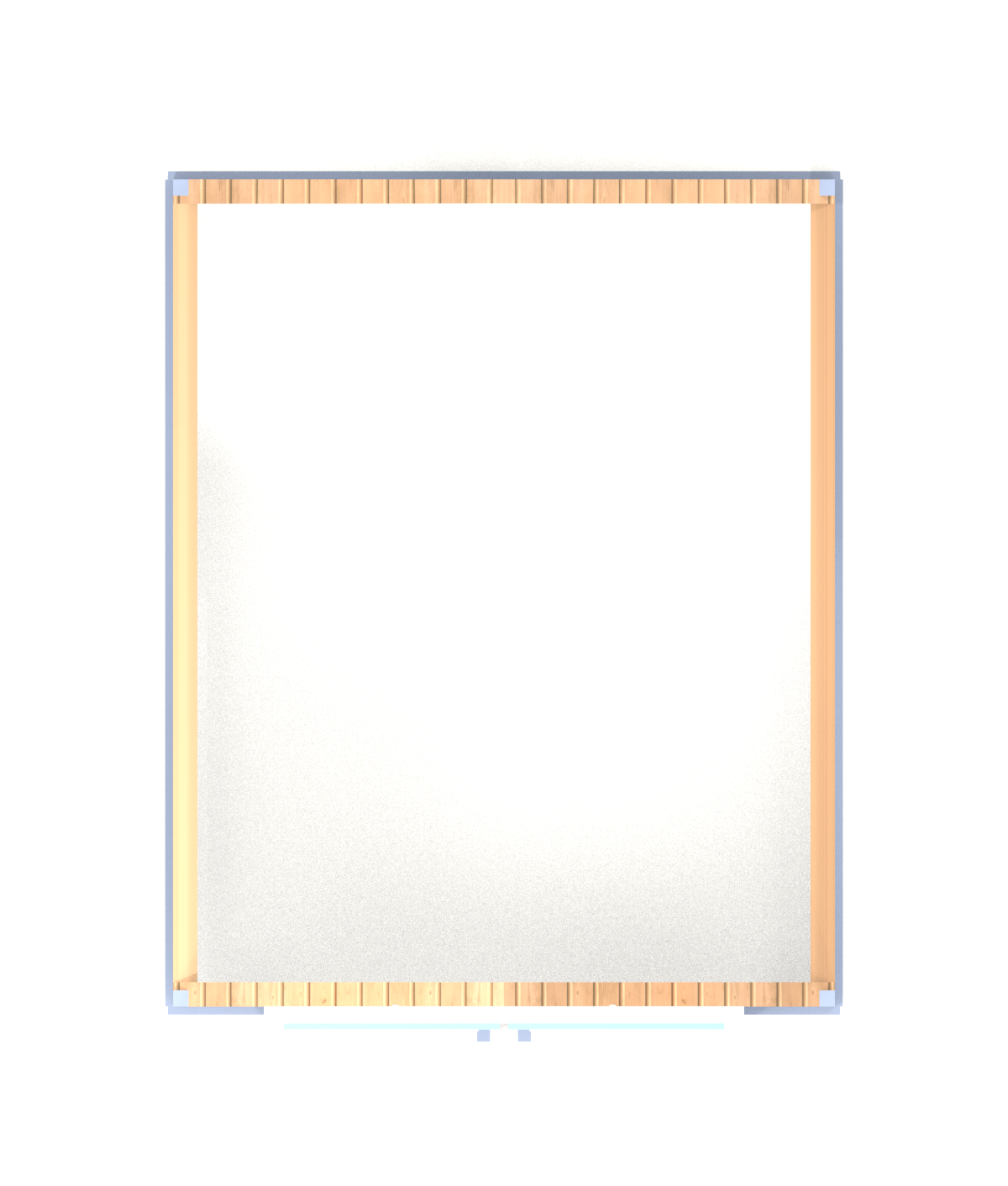

Floor Plan - 8ft x 10ft footprint

Description

A compact 8x10 gable storage shed built from the classic ShedPlans free design: a pair of panelled double doors on the gable end (a 5-foot-4-inch opening) swings wide for a mower, wheelbarrow, or bikes, with a louvered vent in the gable peak for ventilation. The steep 12/12 gable roof gives it real character and a tall interior. The framing is straightforward — 1-1/2x3-1/2 (2x4) treated wall studs about 7 feet to the eave, eighteen rafters at a 12/12 pitch on a full-length ridge board, and an asphalt-shingle roof over plywood sheathing. Cedar lap siding, corner boards, and a base skirt finish it off. Every view in the plan set — front, back, both gable ends, and the floor plan — was modeled and rendered in 3D so you can see exactly what you are building before the first cut.

Building Overview

Compact, Wide-Open Access

This 8x10 storage shed packs 80 square feet under a striking 12/12 gable roof, with a pair of panelled double doors on the gable end that open to a 5-foot-4-inch clear span — wide enough for a push mower, a wheelbarrow, bikes, or bulky seasonal gear. A louvered vent in the gable peak keeps air moving. It is based on the popular ShedPlans free design, so the framing is beginner-friendly and uses common lumber dimensions.

Framing & Structure

The walls are framed from 2x4 studs cut to 6 feet 11 inches, standing about 7 feet to the eave, over a floor frame of eight 2x8 joists. The double-door opening is spanned by a 5-foot-4-inch header. The steep roof is built from eighteen rafters (nine pairs) cut to 5 feet 10-1/4 inches at a 12/12 pitch on a full-length ridge board, tied with collar ties, then sheathed with plywood and finished with building paper and asphalt shingles over a metal drip edge.

Finish & Ventilation

Wood lap siding, corner boards, and a base skirt give the shed a clean, finished look, while the louvered gable vent keeps the roof space ventilated. The included plan set shows every exterior face — front, back, and both gable ends — plus a dimensioned floor plan, all generated from a true 3D model so the drawings match what you build.

Features

Panelled double doors on the gable end (5 ft 4 in opening)
Louvered gable vent above the doors
Steep 12/12 gable roof for a tall interior
Cedar lap siding with corner boards and base skirt
Standard 2x4 / 4x4 pressure-treated wall framing
Full 3D-rendered elevations and floor plan

Complete Material List

Every board, nail, and shingle — nothing left to guess

4Foundation & Floor

Item	Qty	Size	Notes
Ready-Mix Concrete	1 cubic yard	1' wide x 1' deep trench	Perimeter footing
Standard Bricks	120	Standard	Laid across the cured footing
2x8 Pressure Treated	8	8' lengths	Floor joists, cut to 7'-9"
3/4" Plywood Sheathing	3 sheets	4' x 8'	Floor deck

5Wall Framing

Item	Qty	Size	Notes
2x4 Pressure Treated	32	8' lengths	Wall studs, all four walls, cut to 6'-11"
4x4 Pressure Treated	2	8' lengths	Door-end corner / king studs
2x4 Pressure Treated	6	10' lengths	Top and bottom plates, eave walls
2x4 Pressure Treated	4	8' lengths	Top and bottom plates, gable walls
2x6 Pressure Treated	2	8' lengths	Double-door header, cut to 5'-4"

3Roof Framing

Item	Qty	Size	Notes
2x6 Pressure Treated	18	8' lengths	Rafters, 5'-10 1/4" long, 12/12 pitch
2x4 Pressure Treated	7	8' lengths	Collar ties, cut to 5'-11 3/4"
3/4" x 7-1/4" PT Board	1	10' length	Ridge board

5Roofing

Item	Qty	Size	Notes
1/2" Plywood Sheathing	5 sheets	4' x 8'	Roof deck
Building Paper (Felt)	1 roll	36" x 144'	Roof underlayment
Asphalt Shingles	5 bundles	Standard	Approx 130 sq ft coverage
Metal Drip Edge	44 ft	6" width	All roof edges
Ridge Cap Shingles	1 bundle	Standard	Ridge line

4Siding & Trim

Item	Qty	Size	Notes
1/2" x 6" Wood Siding	90 boards	8' lengths	Exterior lap siding, all walls
1x4 Trim Boards	8 pieces	8' lengths	Corner boards and door casing
1x6 Fascia	4 pieces	10' lengths	Eave fascia and rake boards
Wood Square Louver Gable Vent	1	Approx 16" x 10"	Door gable end

2Doors

Item	Qty	Size	Notes
Double Doors (pair)	1 pair	Two 2'-7 3/4" x 5'-11 3/4" leaves	Gable end, 9/16" plywood + battens
2 1/2" x 3/4" Door Trim	4 pieces	Cut to fit	Two 2'-2 3/4", two 5'-11 3/4"

6Hardware & Fasteners

Item	Qty	Size	Notes
Door Hinges	6	3"	Double doors, 3 per leaf, 6x1" screws
Door Pulls	2	6"	Double doors
Surface Bolts	2	4"	Door hold-open / lock
Galvanized Nails	8 lbs	Assorted	Framing and siding
Wood Screws	5 lbs	Assorted	General assembly
Exterior Stain / Paint	3 gallons	N/A	2 coats all exterior surfaces

Cut List

Pre-calculated cuts — take this list straight to the lumber yard

Floor Frame

Material: 2x8 Pressure Treated

Length	Qty	Angle	Notes
7'-9"	8	Square	Floor joists

Front (Door-End) Wall Frame (Gable)

Material: 2x4 / 4x4 / 2x6 Pressure Treated

Length	Qty	Angle	Notes
6'-11"	8	Square	2x4 studs
5'-4"	1	Square	2x6 door header
11"	3	Square	Cripple studs
2'-4"	2	Square	Bottom plates (door split)
10'-0"	1	Square	Top plate

Back Wall Frame (Gable)

Material: 2x4 Pressure Treated

Length	Qty	Angle	Notes
6'-11"	9	Square	2x4 studs
10'-0"	2	Square	Top and bottom plates

Left & Right Wall Frames (Eave)

Material: 2x4 Pressure Treated

Length	Qty	Angle	Notes
6'-11"	14	Square	2x4 studs, 7 per wall
7'-5"	4	Square	Top and bottom plates, 2 per wall

Roof Frame

Material: 2x6 / 2x4 / PT Board

Length	Qty	Angle	Notes
5'-10 1/4"	18	12/12 pitch plumb and birdsmouth cuts	Rafters, 9 pairs
5'-11 3/4"	7	Square	Collar ties
10'-0"	1	Square	Ridge board (3/4 x 7-1/4)

Doors

Material: 9/16" Plywood + 1x4 Trim

Length	Qty	Angle	Notes
2'-7 3/4" x 5'-11 3/4"	2	Square	Door leaves
5'-11 3/4"	2	Square	Vertical girts
2'-3/4"	2	Square	Horizontal girts

What's Included

Printable PDF plan set (7 pages)
Front, back, and both gable-end elevations
Top-down floor plan with dimensions
Complete material list
Cut list with board counts and lengths
Foundation and framing guidance

Specifications

Floor Area: 80 sq ft
Roof Pitch: 12/12 gable
Wall Height: 7'-0"
Door: 5'-4" double doors
Windows: 0
Foundation: Concrete Footing + Brick, or PT Skids
Roofing: Asphalt Shingles
Siding: Wood Lap Siding
Floor: 3/4" Plywood on 2x8 Joists
Snow Load: 40 psf (standard residential)
Wind Rating: 110 mph (Exposure B)

Estimated Material Cost

$3,254 – $4,594

Based on 8′×10′ footprint · Midwest avg. pricing

Framing Lumber: $718
Roofing: $369
Siding: $1,656
Foundation: $184
Hardware: $265
Doors & Windows: $386
Paint / Stain: $250
Mid-range Total: $3,828

Customize Estimate

Estimate uses mid-2026 US avg. prices. Adjust region, roofing, siding, and foundation in the full calculator.

Ready to build?

Download includes all blueprints, material list, cut list, and step-by-step instructions.
