10x10 Storage Shed Plans
A 10x10 timber gable shed with double doors, continuous side-wall siding, complete framed vents and three treated skids over gravel.
Actual footprint: 120 x 120 in (10 x 10 ft)
Construction details to resolve: Site bearing, drainage, frost and anchorage; floor and roof loads; wall bracing, header and rafter connections; roof restraint and weatherproofing require project-specific completion. Original-reference dimensions and model differences are flagged beside affected drawings. Purchased vent internals and hardware are schematic. Check materials and cut sizes against the actual assembly. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 10 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 21-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 17 | 38 |
| Illustrated build steps | 10 selected steps | All 21 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

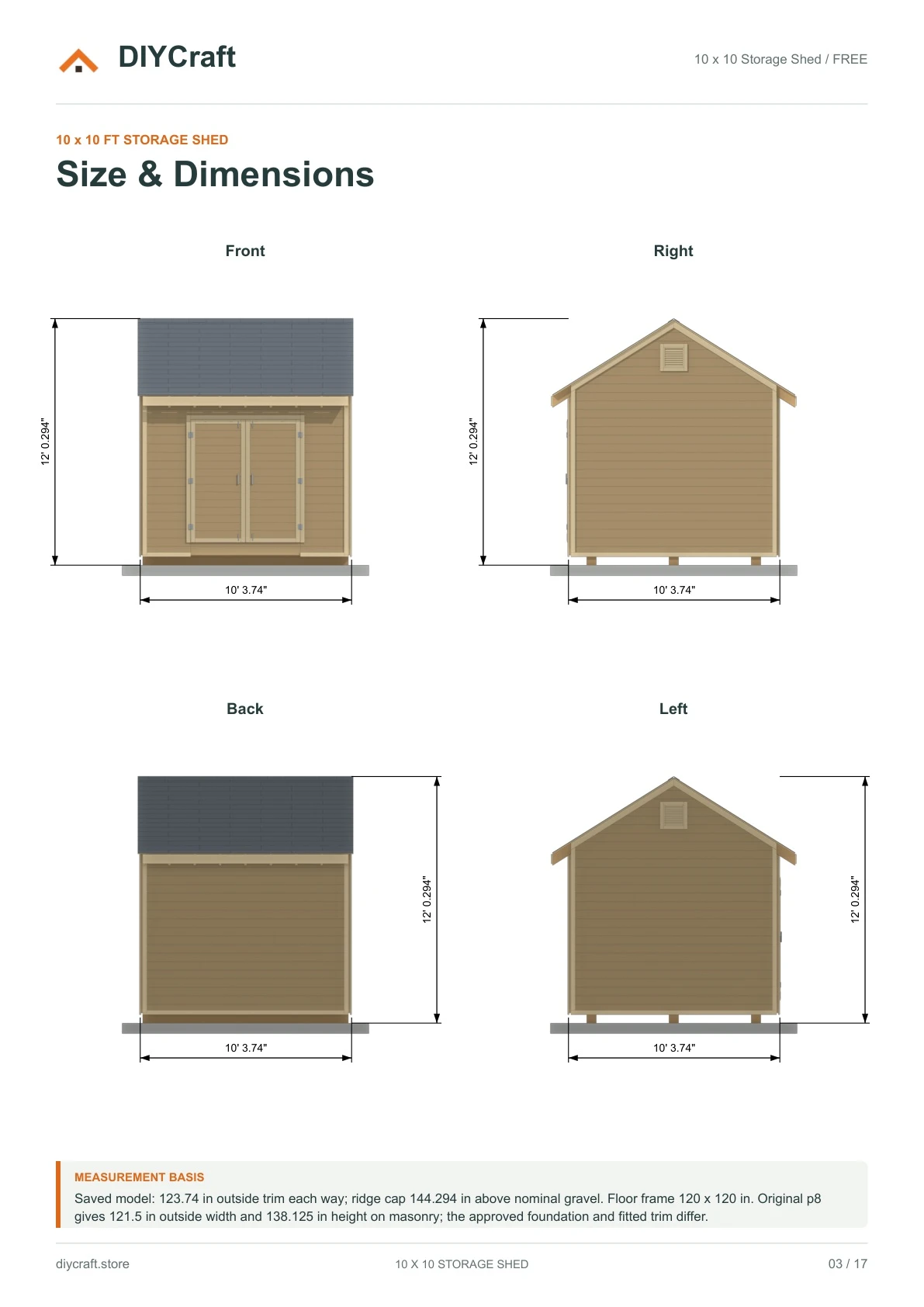

Free page 3: front, right, rear and left views

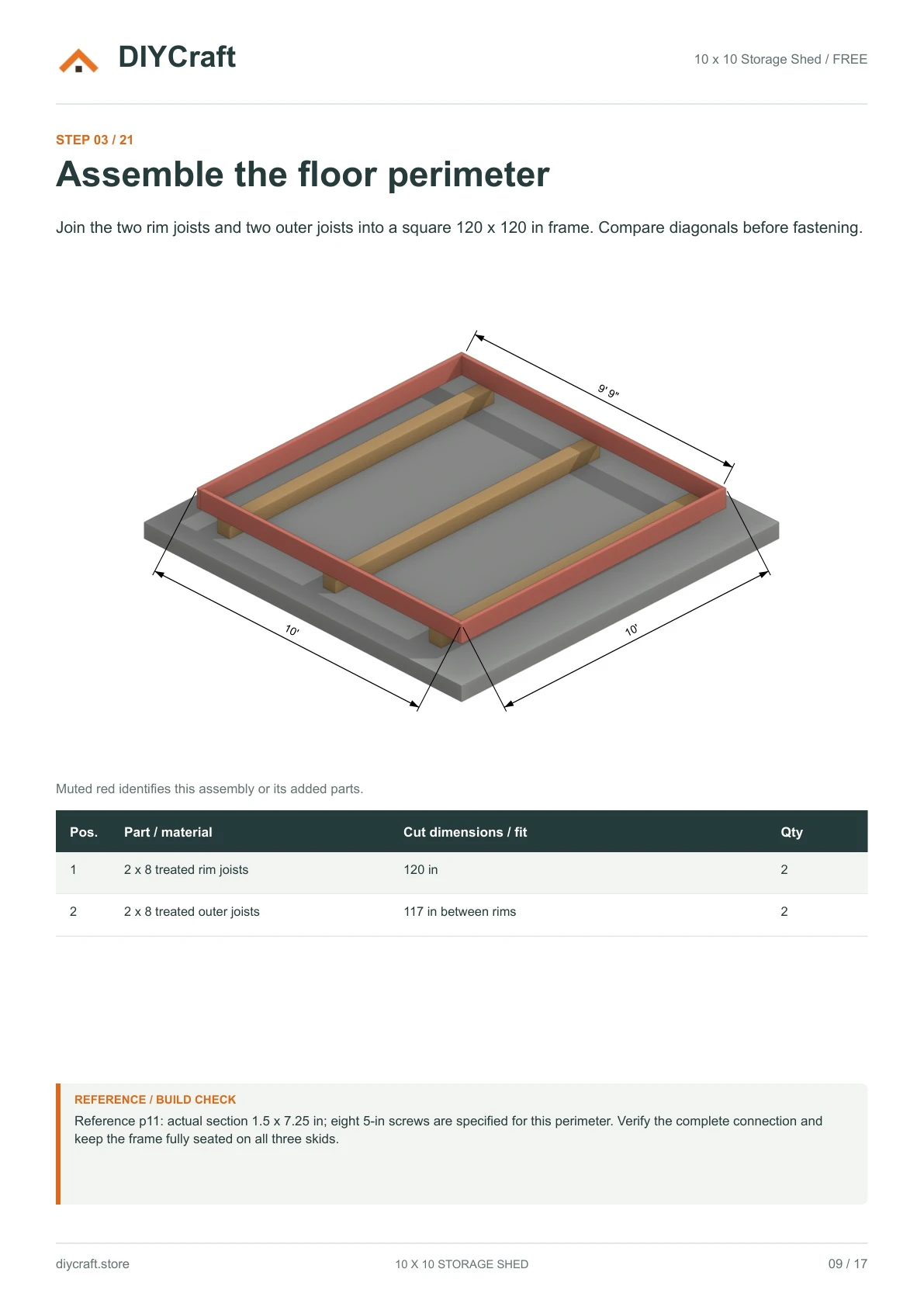

Free page 9: assemble the floor frame

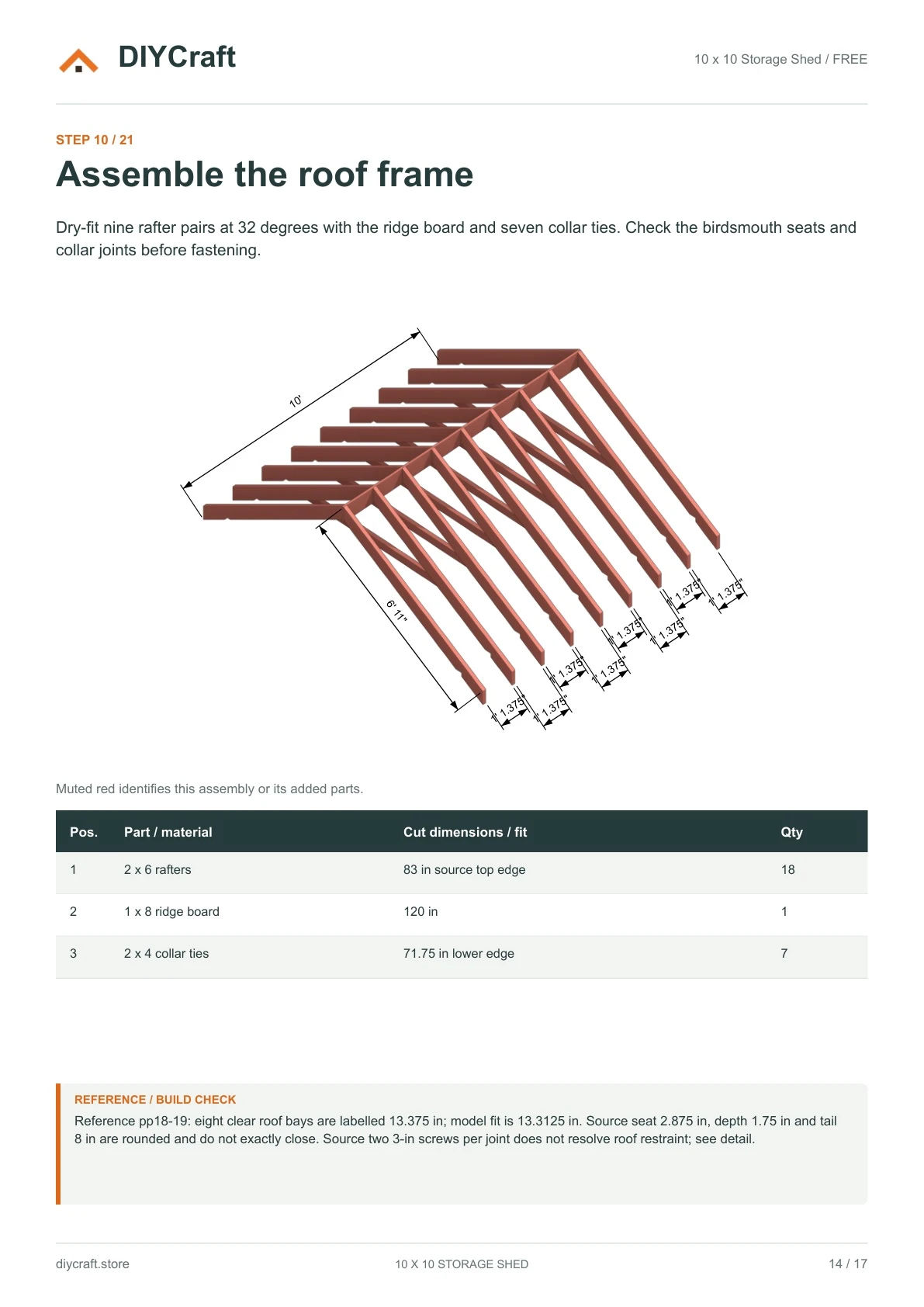

Free page 14: gable roof framing
Dimensions that match the drawing
- Structural floor frame
- 120 x 120 in (10 x 10 ft)
- Gravel pad
- 144 x 144 in; 6 in modeled compacted depth
- Skids
- Three nominal 6x6 runners, each 120 in long, at 48 in centres
- Door rough opening
- 64 x 72 in
- Roof pitch
- 32 degrees
- Gable vents
- Two nominal 12 x 12 in units; 16 x 16 in outside trim
- Revision
- October 5, 2026 / Approved continuous side siding, framed vents, skids and woodland hero
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
