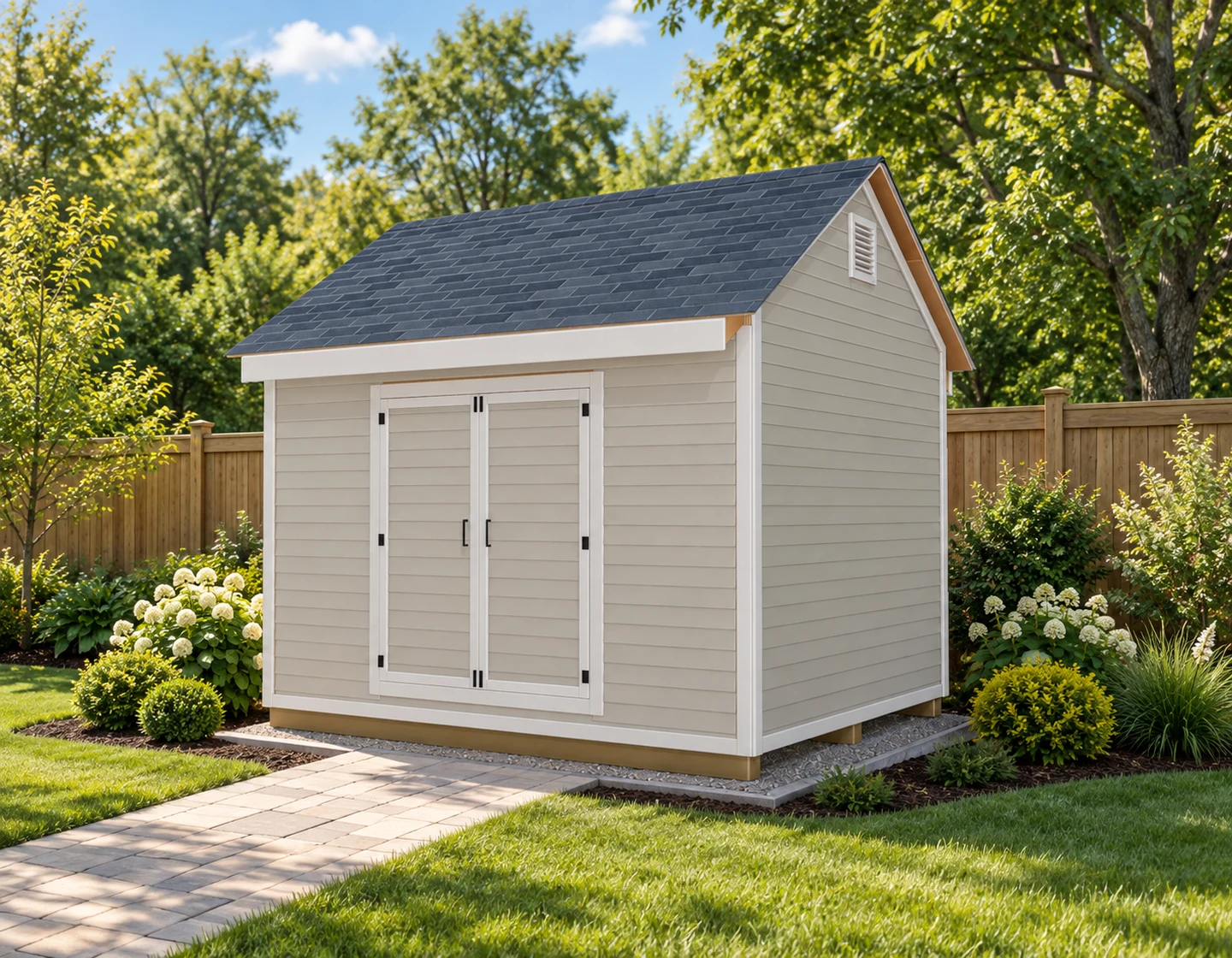

Design visualization. Landscaping and paving are not included. Select the image to enlarge it.
See actual pages from the PDFFree + premium editions
10x12 Storage Shed Plans
A gable storage shed with centered double doors, horizontal siding and a timber floor on treated skids over gravel.
Actual footprint: 144 x 120 in (12 x 10 ft)
Construction details to resolve: Foundation and anchors, door header and wall bracing, rafter seats and thrust restraint, and gable overhang support remain unresolved. Original-reference dimensions are retained, with source arithmetic and model differences flagged beside affected drawings. Door construction includes model-derived details. Materials and cutting lists require checking against the actual assembly. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 13 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 26-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 19 | 42 |
| Illustrated build steps | 13 selected steps | All 26 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

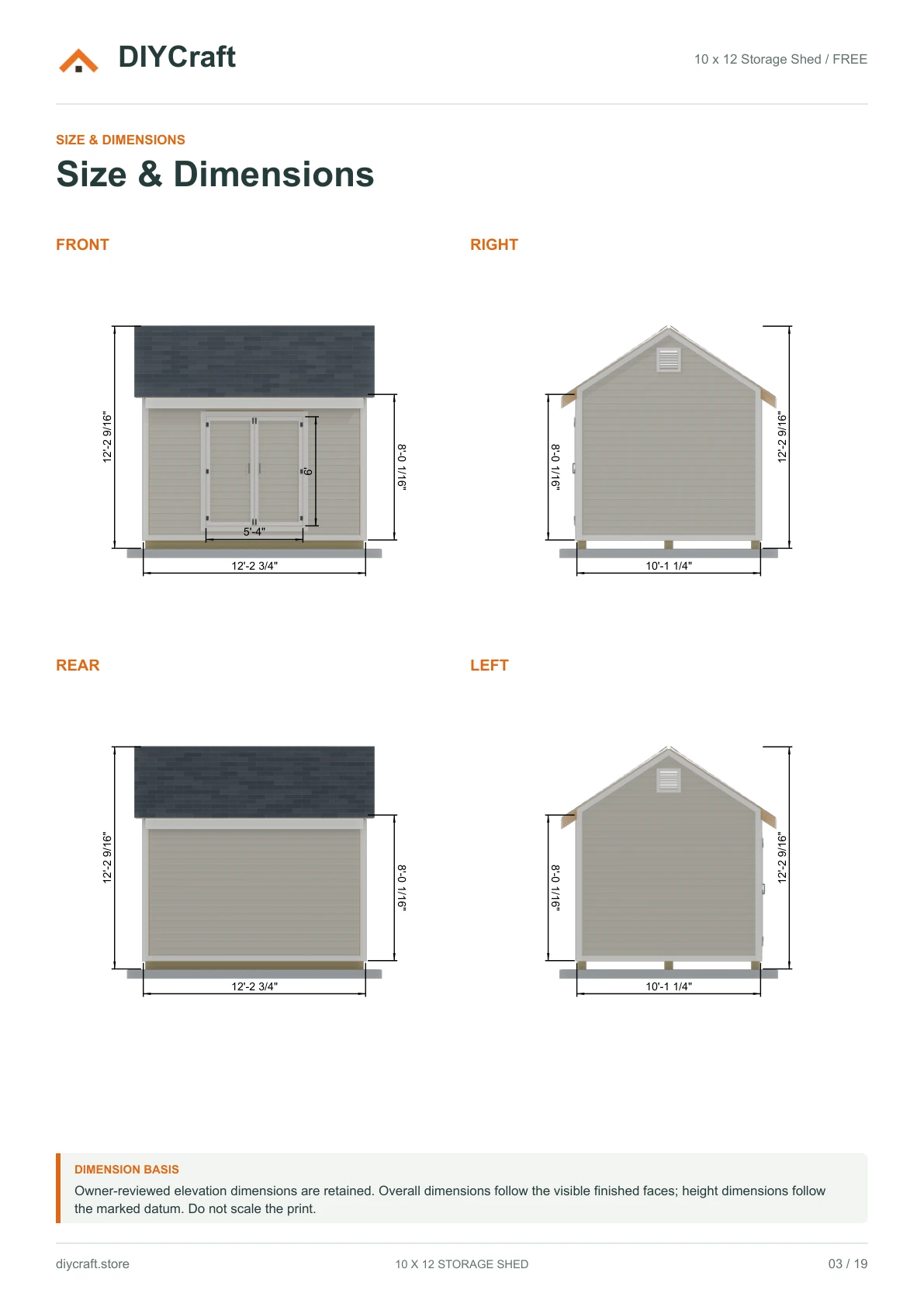

Free page 3: front, right, rear and left views

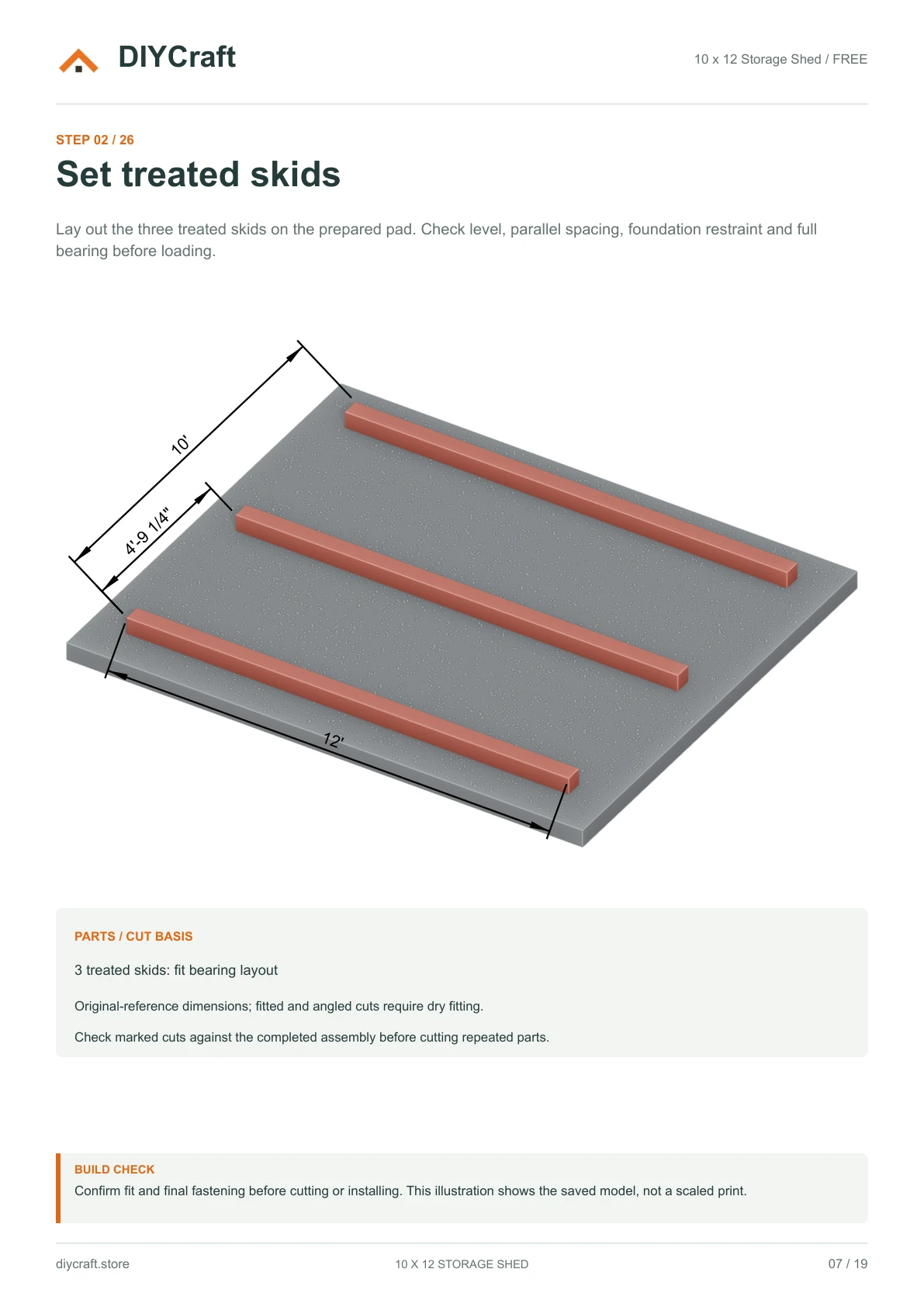

Free page 7: skid length and spacing

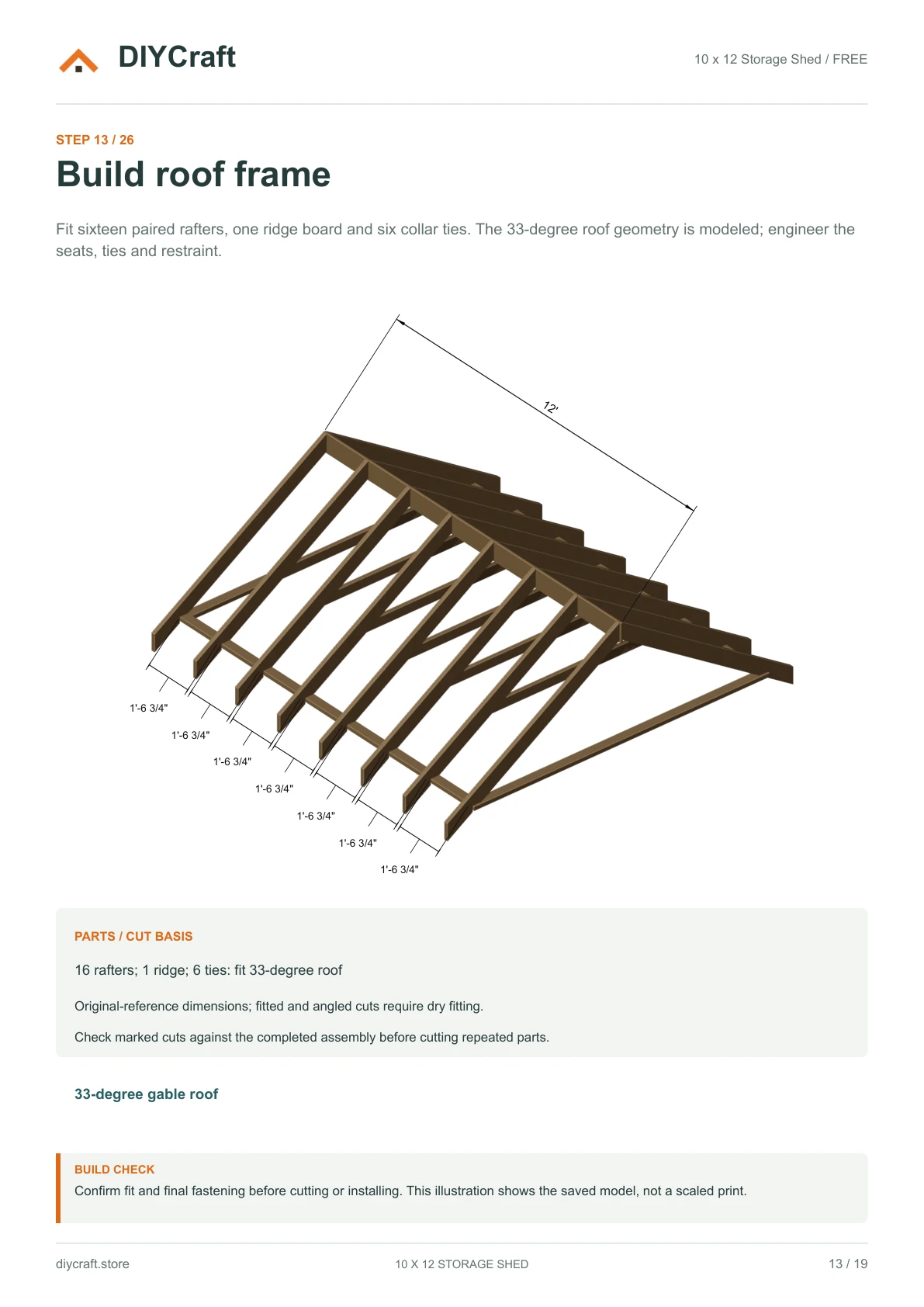

Free page 13: rafters, ridge and collar ties
Dimensions that match the drawing
- Structural floor frame
- 144 x 120 in (12 x 10 ft)
- Door opening
- 64 x 72 in above the raised bottom plate
- Roof pitch
- 33 degrees
- Roof deck
- 157 x 83 1/4 in per slope
- Gable vents
- Two 12 x 12 in modeled clear openings
- Revision
- September 30, 2026 / Reviewed dimension overlays and selected free steps
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
