6x10 Lean-to Storage Shed Plans
A 6x10 timber lean-to shed with one front door, a front window, two framed side vents and two treated skids over gravel.
Actual footprint: 120 x 72 in (10 x 6 ft)
Construction details to resolve: Site bearing, drainage, frost and anchors; floor and roof loads; wall bracing, header and rafter connections; roof restraint, low-slope weatherproofing and sheet-edge support require project-specific completion. The paid reference shows a nominal 9 in front rafter seat, but the saved 9-degree assembly fits a 5.706 in front seat and 3.5 in rear seat. The 0.75 in front-base/side-corner trim overlap remains unresolved; detail and dry-fit that corner before cutting or fixing trim. Purchased hardware and vent internals are schematic. Check all fitted cuts against the actual assembly. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
The free overview explains the sequence. Premium separates the assemblies and adds part schedules and detail drawings.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 22 | 38 |
| Illustrated stages | 15 | 21 |
| Dimensioned assembly views | Included | Included |
| Materials | Overview | Stock + cut schedules |
| Assembly sequence | Grouped overview | Separate stages and checks |
| Roof construction | Combined overview | Framing, sheathing, underlay + shingles |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

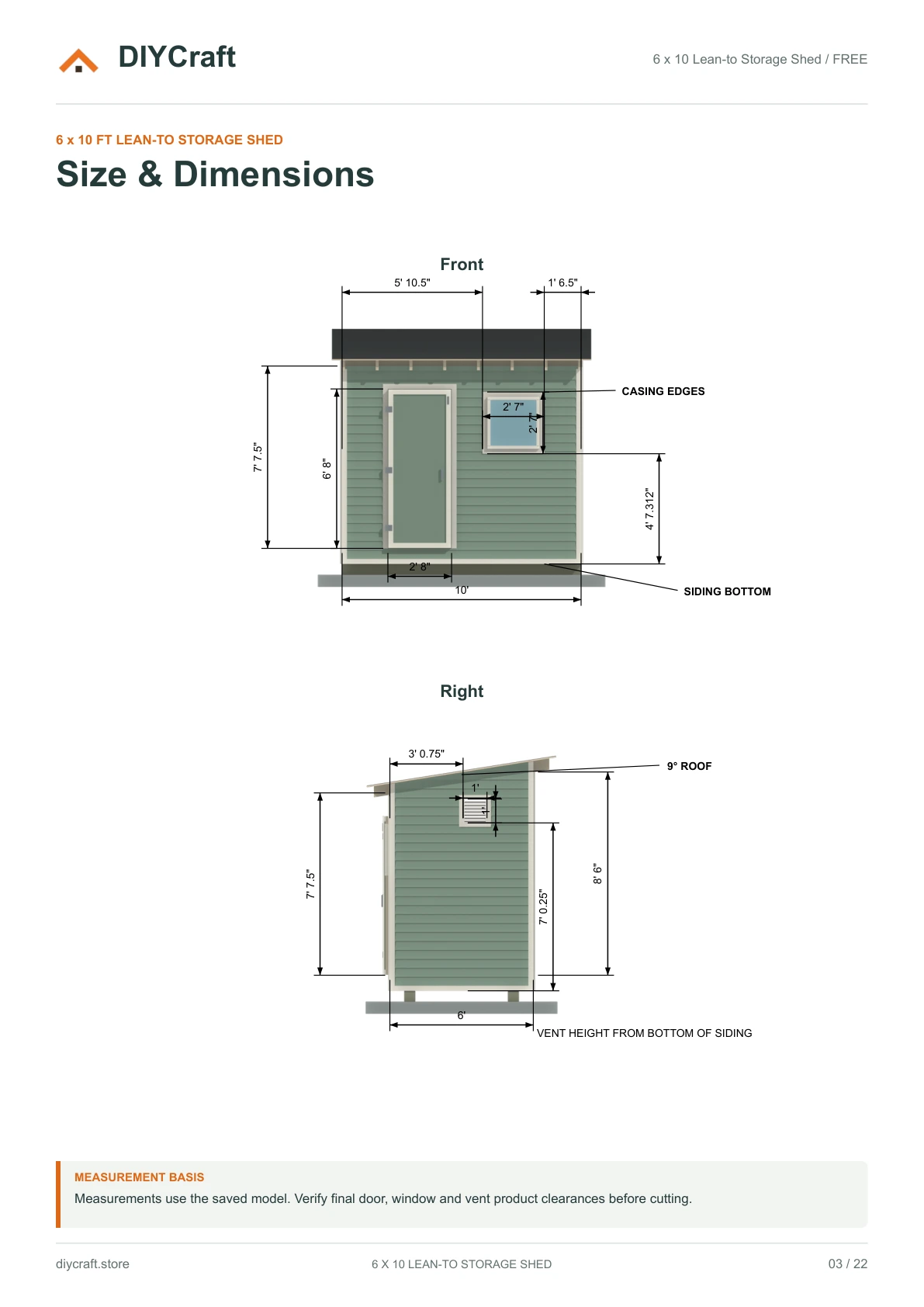

Free page 3: front and right views

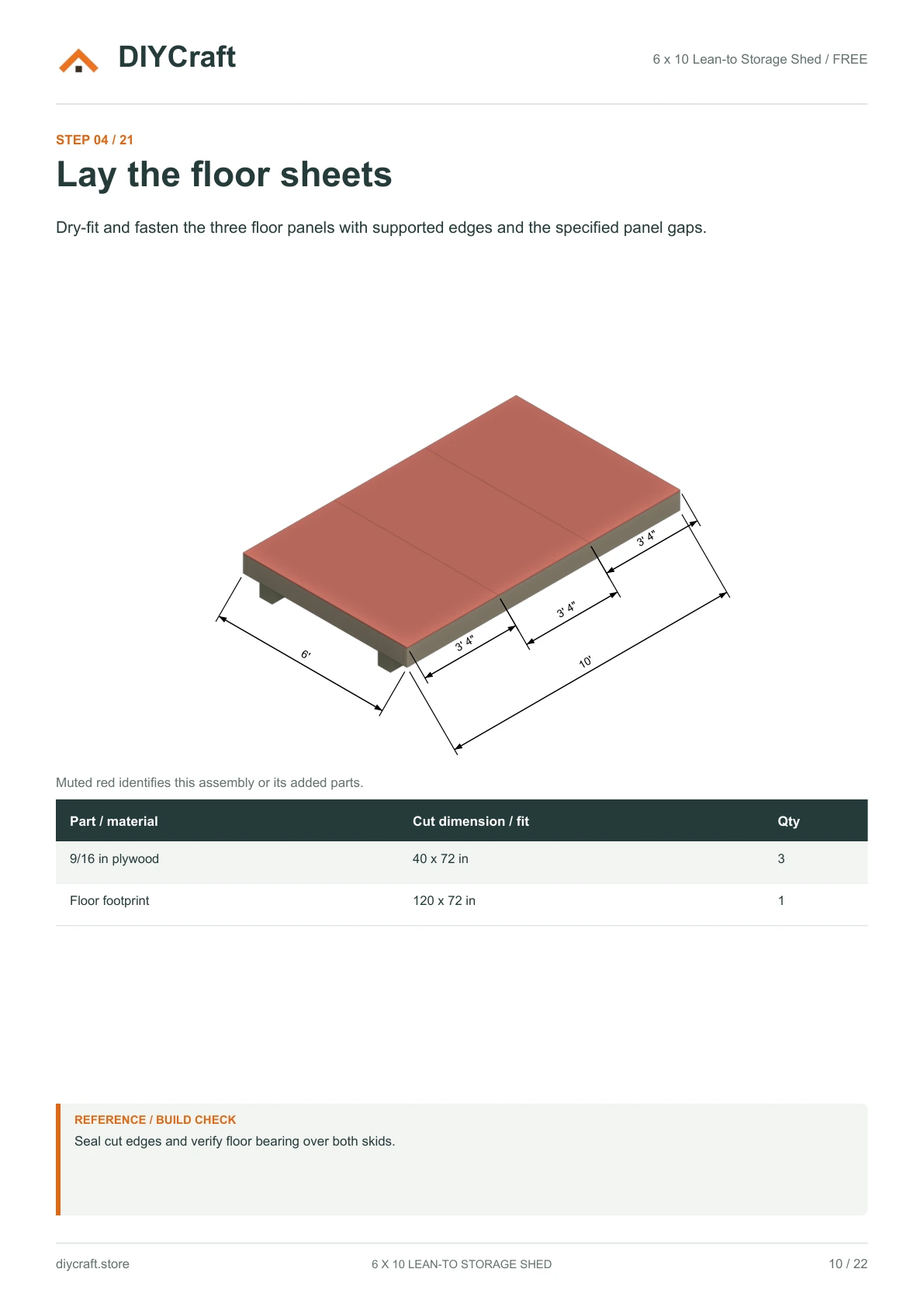

Free page 10: three separate 40 x 72 in panels

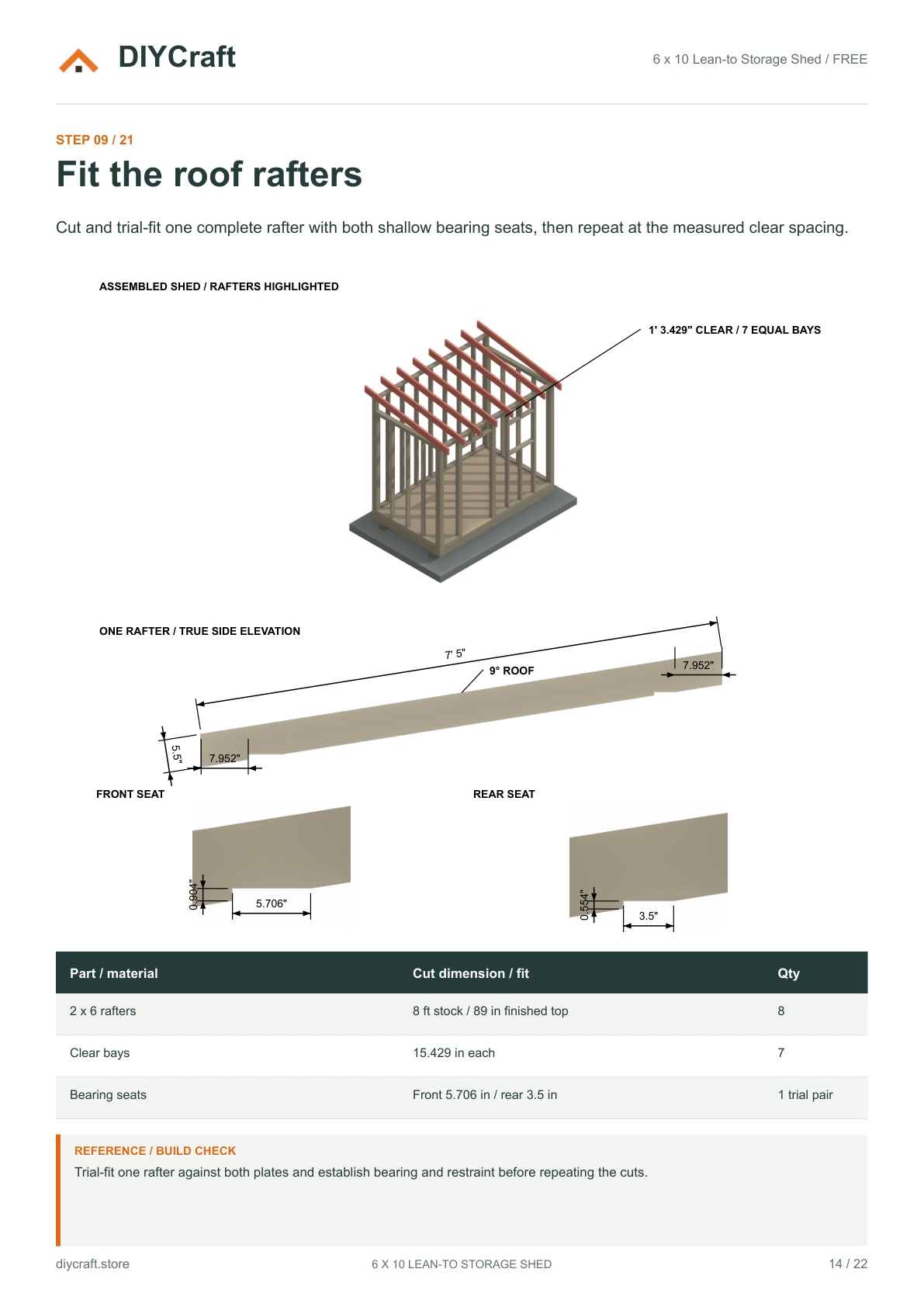

Free page 14: cumulative framing and fitted rafters
Dimensions that match the drawing
- Structural floor frame
- 120 x 72 in (10 x 6 ft)
- Gravel pad
- 144 x 96 in; 6 in modeled compacted depth
- Skids
- Two nominal 6x6 runners, each 120 in long, at 52 in centres
- Door rough opening
- 32 x 80 in above floor
- Front window rough opening
- 26 x 26 in
- Roof pitch
- 9 degrees
- Roof deck
- 130 x 96 in overall in the roof plane
- Side vents
- Two 12 x 12 in clear wall openings
- Revision
- October 7, 2026 / Approved shallow rafter seats, continuous front boards and orchard hero
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Inch dimensions control; metric conversions are approximate.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
