10x10 Garden Shed Plans
A garden shed with double doors, working side windows and shutters, a shingle roof and wall-mounted rainwater drainage. Detailed drawings and 3D assembly views share each step page.
Actual footprint: 120 x 120 in (10 x 10 ft)
Construction details to resolve: Check site bearing, drainage, frost and anchorage, floor and roof loads, wall bracing and connections for the intended location. Dry-fit the rafter seats and chosen hardware before final fixing. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 11 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 22-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 16 | 31 |
| Illustrated build steps | 11 selected steps | All 22 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

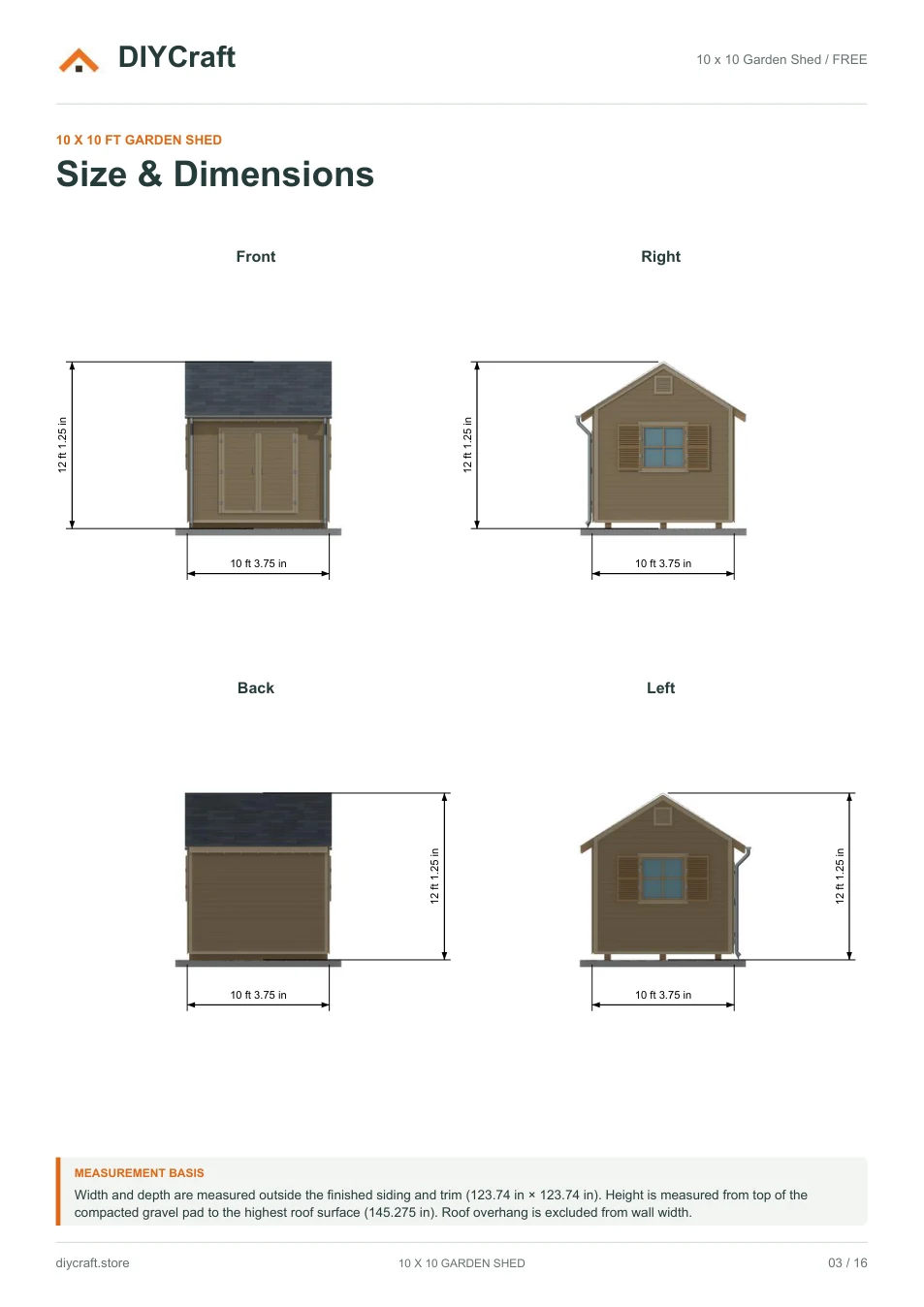

Free page 3: all four elevations

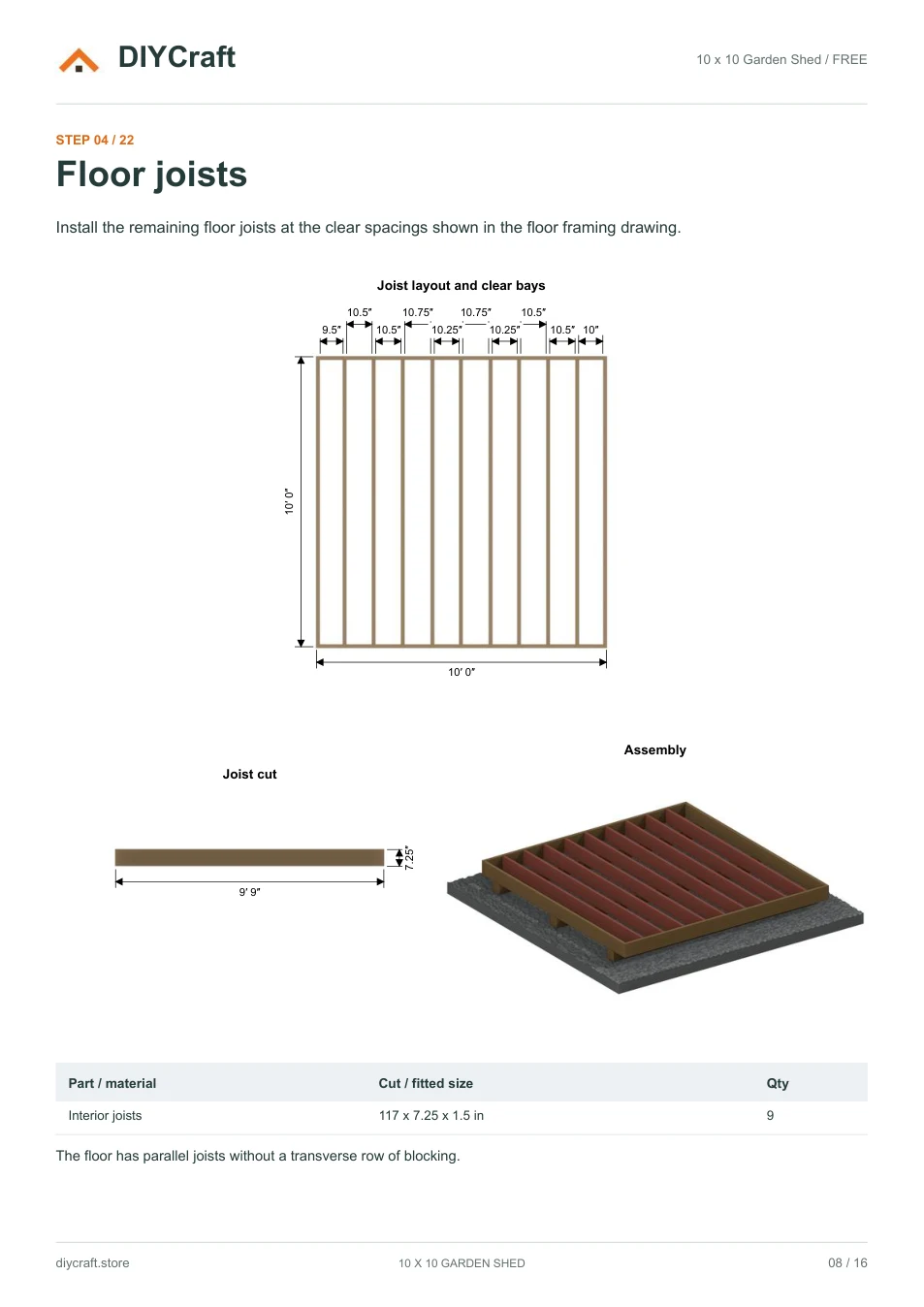

Free page 8: clear joist bays, cut and 3D assembly

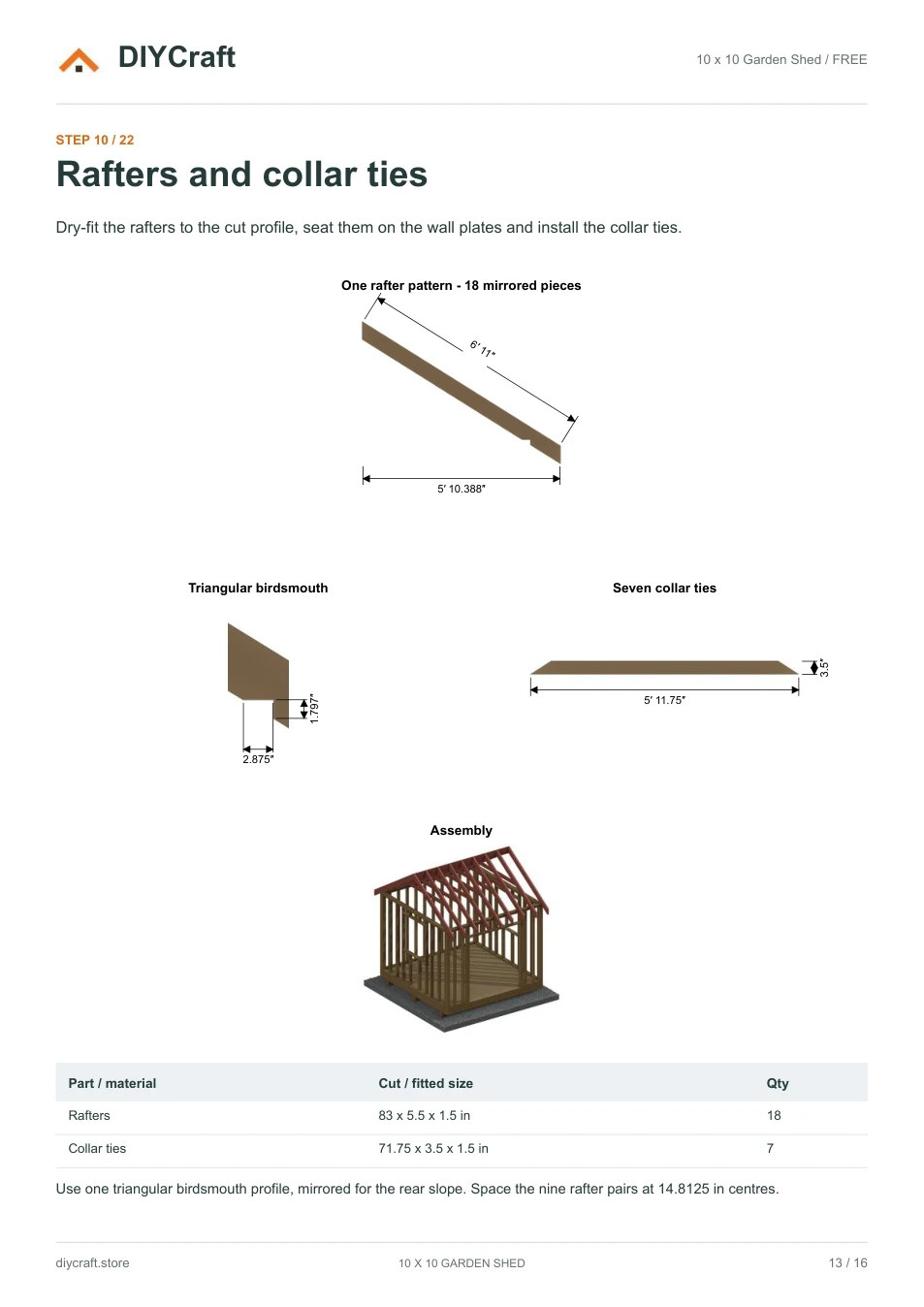

Free page 13: one rafter pattern and roof assembly
Dimensions that match the drawing
- Floor frame
- 120 x 120 in (10 x 10 ft)
- Gravel pad
- 144 x 144 x 6 in
- Foundation
- Three 120 in treated skids
- Door rough opening
- 64 x 72 in
- Side windows
- Two 40 x 40 in frames with four shutters
- Roof
- 32-degree pitch; two 125.75 x 84.327 in plywood slopes
- Gable vents
- Two raised 12 x 12 in clear openings
- Revision
- October 24, 2026 / Combined step pages, straight plywood edges, raised vents and updated hero
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
