10x14 Garden Shed Plans

A 10x14 garden shed with double doors, side windows and shutters, a shingle roof and a door ramp. Detailed drawings and 3D assembly views share each step page.

Actual footprint: 168 x 120 in (14 x 10 ft)

Premium PDF

$9.99

USD · One PDF edition

32 pages · 23 stages
Dimensioned drawings, materials and cutting lists, tools, hardware and additional construction details.

Illustrated design package. Structural verification, a complete connection schedule and site-specific foundation design are not included.

Get premium — $9.99

Continue to Payhip for secure checkout. After payment, Payhip provides your PDF and emails your download link. Any applicable taxes are shown at checkout.

Read the free edition before buying
14 pages · 9 stages · No account or email required.

Download free plan (PDF)
Construction details to resolve: Check site bearing, drainage, frost and anchorage, floor and roof loads, wall bracing and connections for the intended location. Select anchors, connectors and compatible fasteners for the site and follow their installation instructions. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.

One design. Two levels of detail.

Free includes 9 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 23-step sequence, materials and cutting lists, tools, hardware and additional details.

Compare the free and premium 10x14 Garden Shed PDFs
IncludedFreePremium
PDF pages1432
Illustrated build steps9 selected stepsAll 23 steps
Dimensioned drawings and model viewsIncludedIncluded
Full materials and cutting listNot includedIncluded
Tools listNot includedIncluded
Fasteners and hardware listNot includedIncluded
Additional construction and joint detailsNot includedIncluded
Full-page lumber-size referenceNot includedIncluded
Technical supportNot includedIncluded
Structural / site-specific designNot includedNot included

Look inside the plan

These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

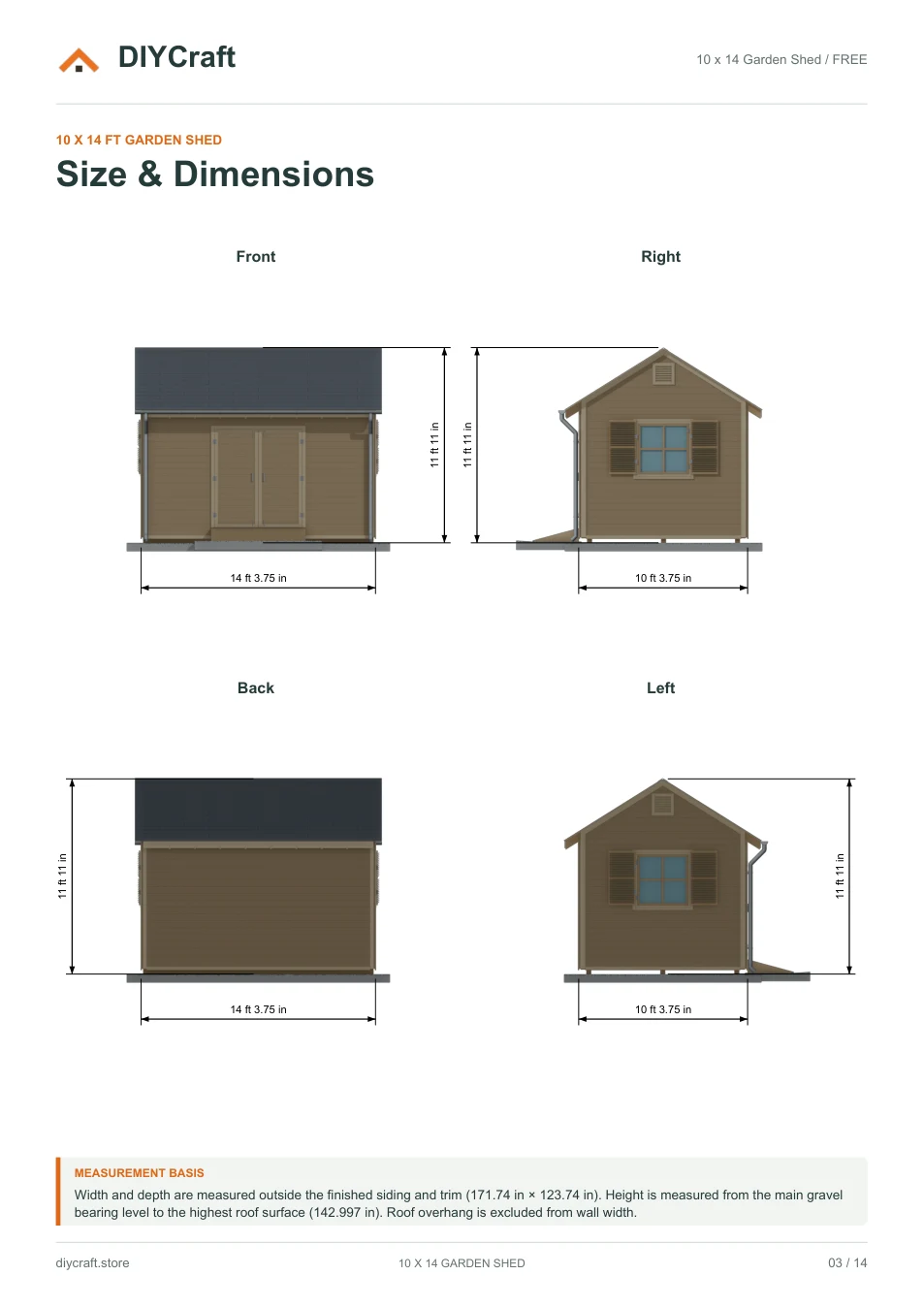

Size and dimensions: Free page 3: all four elevations from the free PDF
Size and dimensions
Free page 3: all four elevations

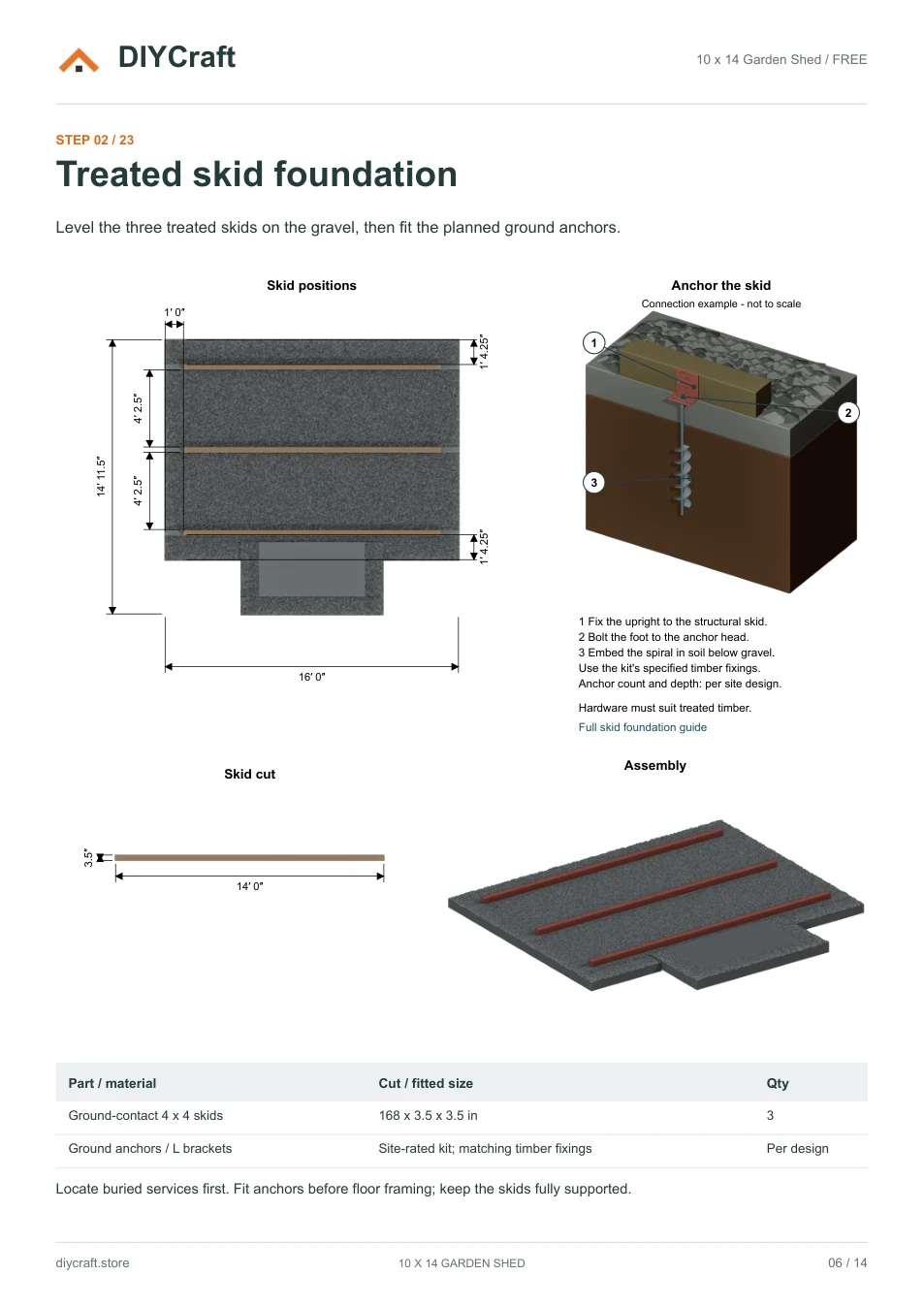

Treated skid foundation: Free page 6: skid layout, cut and ground-anchor connection from the free PDF
Treated skid foundation
Free page 6: skid layout, cut and ground-anchor connection

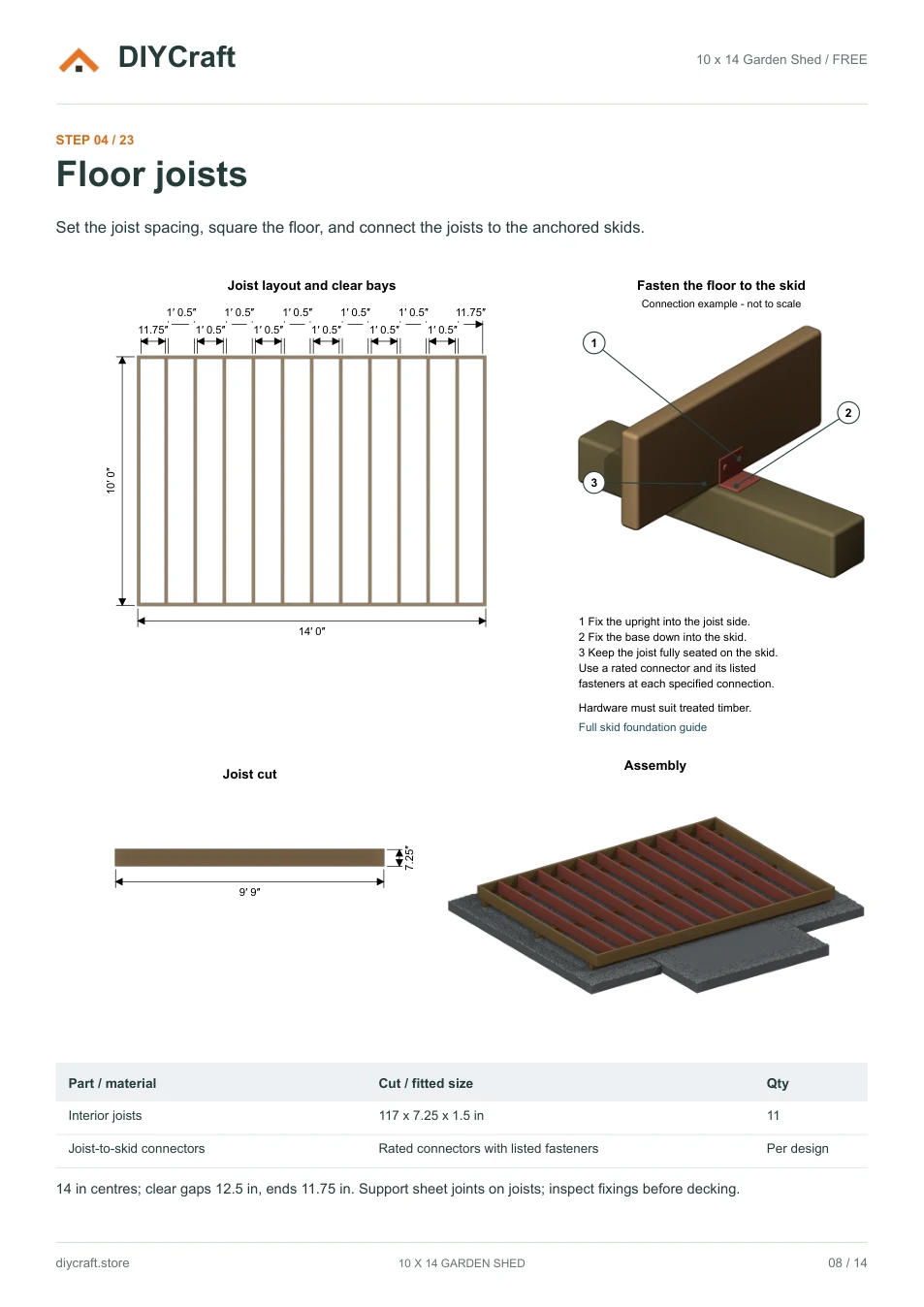

Floor joists: Free page 8: joist bays, cut and joist-to-skid connection from the free PDF
Floor joists
Free page 8: joist bays, cut and joist-to-skid connection

Dimensions that match the drawing

Floor frame
168 x 120 in (14 x 10 ft)
Foundation
Three 168 in ground-contact 4 x 4 skids
Side windows
Two 40 in frames with four shutters
Gable vents
Two 12 x 12 in rough openings; 11.5 in lined openings
Revision
October 25, 2026 / Combined step pages, reviewed framing, skid connections and updated ImageGen hero

Before you choose

  • This is a digital PDF, not a materials kit or a finished product.
  • Dimensions are shown in feet and inches.
  • Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
  • Build time and material budget have not yet been verified in a physical build.
  • Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
  • Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.

What the 10x14 Garden Shed takes to build

28 material lines and 23 illustrated build steps, 9 of them in the free PDF. Quantities below are from the plan itself; the cut sizes for every part are in the premium edition.

Structure

PartQty
Compacted gravel3.99 yd3
Ground-contact 4 x 4 skids3
Floor joists / end members13
Floor rims2
Floor plywood, 9/16 in4
Wall framing: 2 x 464 cuts / 391 ft
Wall posts / headers: 4 x 44 cuts / 28 ft
Continuous top plates4
Rafters20
Collar ties8
Gable framing / backing38
Ramp frames / connectors1 set
Foundation connection hardwarePer design

Enclosure and finish

PartQty
Exterior plywood359 sq ft
Interior plywood310 sq ft
Wall weather barrier359 sq ft
Roof plywood, 9/16 in10
Wood siding345 sq ft
Roof underlay / shingles211 sq ft
Fascia / wall trim1 set
Drip edges / ridge caps1 set
Louver vents2
Windows / glazing2 sets
Shutters / hinges4 sets
Door frames / faces / hardware1 set
Gutter / drainage1 set
Ramp plywood1 set
Fasteners / sealantsAs needed

Build steps

  1. 1Compacted gravel padFree PDF
  2. 2Treated skid foundationFree PDF
  3. 3Floor perimeterFree PDF
  4. 4Floor joistsFree PDF
  5. 5Floor plywood
  6. 6Front wall framingFree PDF
  7. 7Back wall framingFree PDF
  8. 8Side wall framingFree PDF
  9. 9Wall top tie plates
  10. 10Rafters and collar tiesFree PDF
  11. 11Gable framing and backing
  12. 12Wall plywood
  13. 13Interior plywood
  14. 14Roof plywood
  15. 15Weather barrier
  16. 16Siding and exterior trim
  17. 17Side windows and shutters
  18. 18Door frames and plywood
  19. 19Doors and window hardware
  20. 20Roof underlay and drip edge
  21. 21Shingles and ridge capsFree PDF
  22. 22Rainwater drainage
  23. 23Door ramp

Quantities are taken from the published plan and are a guide for estimating, not a purchase list. Confirm quantities and sizing against your own site and local requirements.

Explore the 9 selected build steps.
