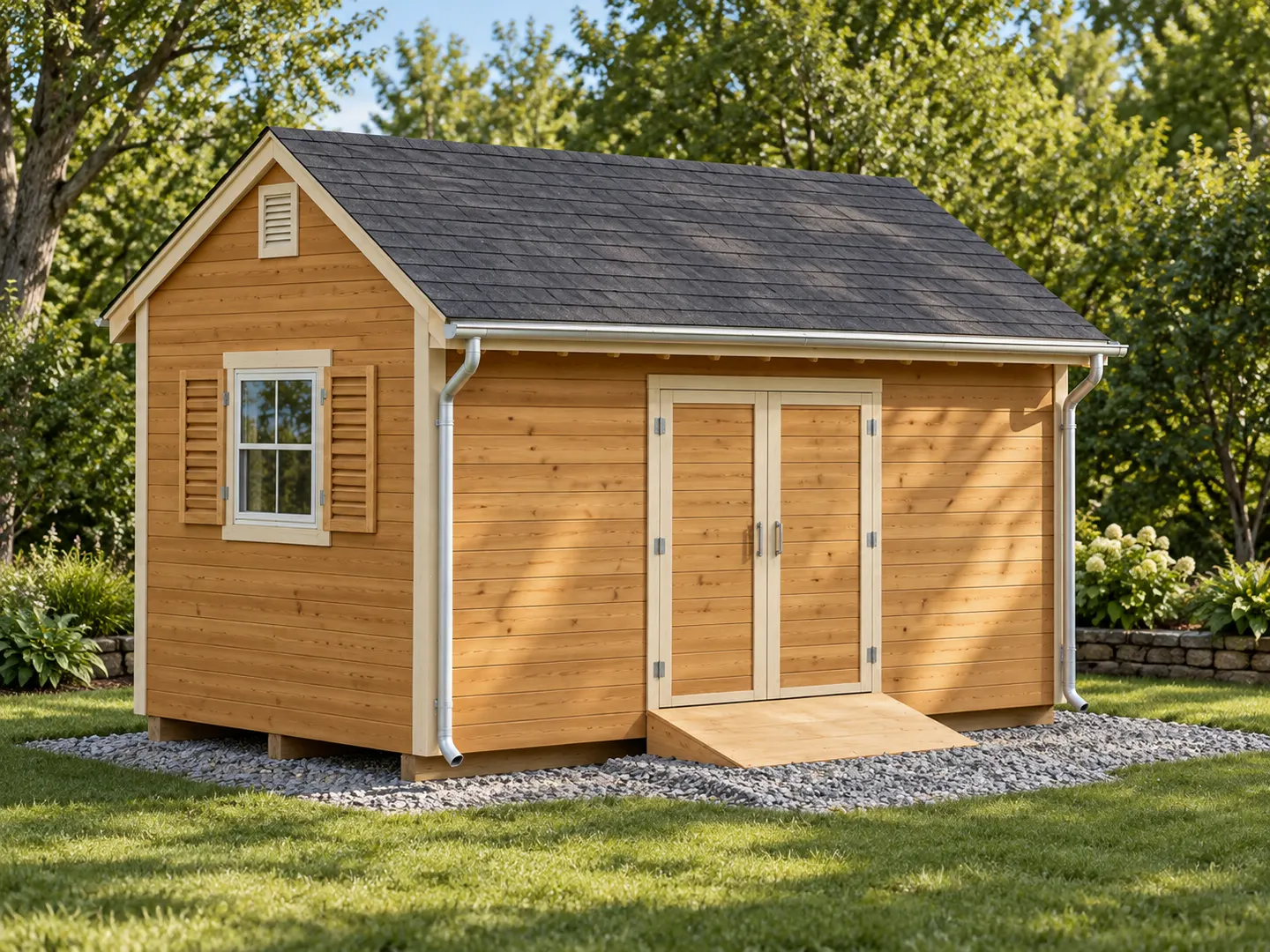

Design visualization. Landscaping and paving are not included. Select the image to enlarge it.
See actual pages from the PDFFree + premium editions
10x16 Garden Shed Plans
A garden shed with double doors, side windows and shutters, interior lining, a shingle roof and a ramp. Detailed drawings and 3D assembly views share each construction page.
Actual footprint: 192 x 120 in (16 x 10 ft)
Construction details to resolve: Check site bearing, drainage, frost, anchorage, floor and roof loads, wall bracing and connections for the intended location. The source header lacks end bearing; its capacity and end connections require design review. Select compatible anchors, connectors and fasteners for the site. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 11 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 24-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 16 | 33 |
| Illustrated build steps | 11 selected steps | All 24 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual Free and Premium PDFs, with each edition identified below. Select a page to enlarge it, or download the full free edition above.

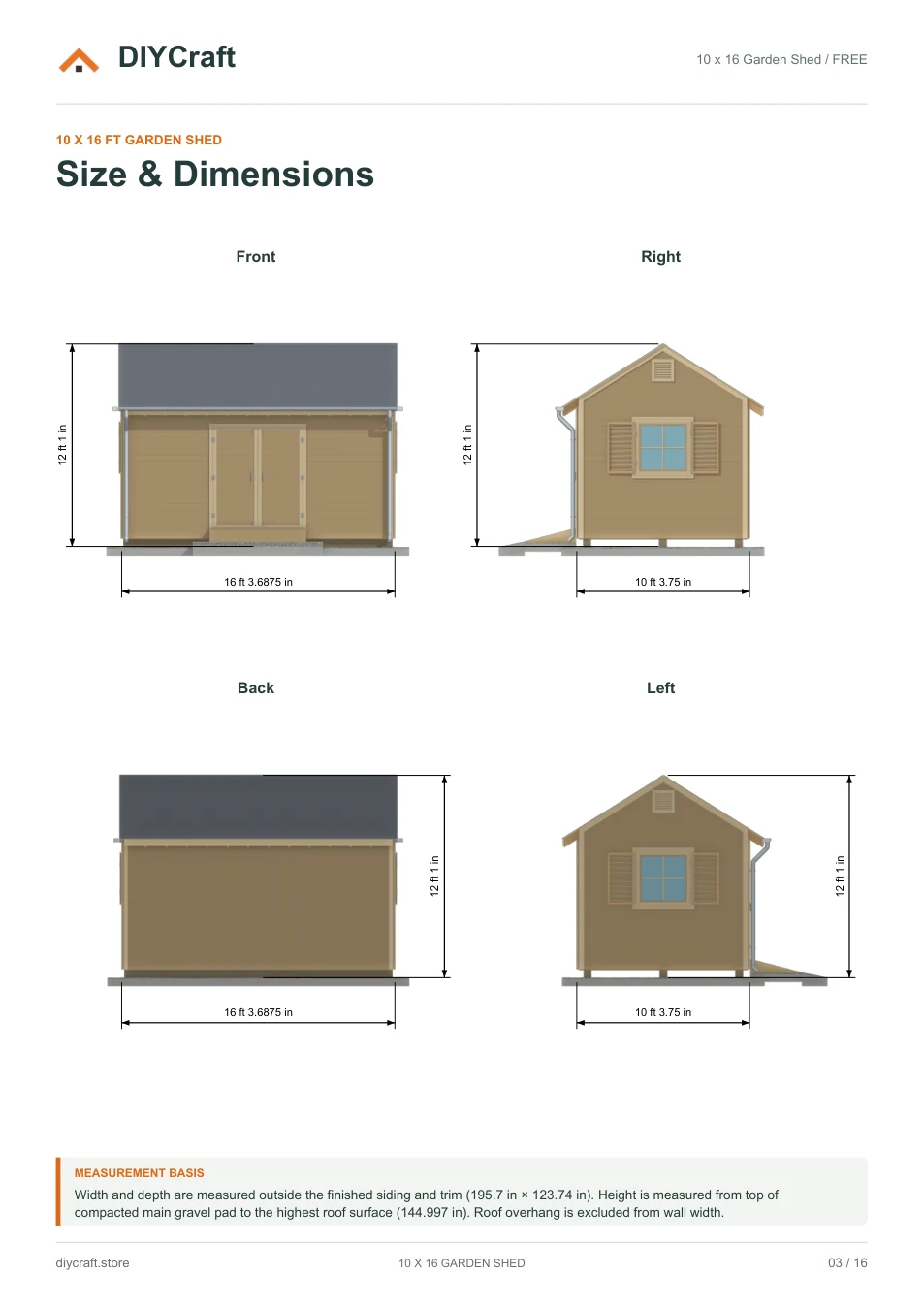

Free page 3: four shed elevations

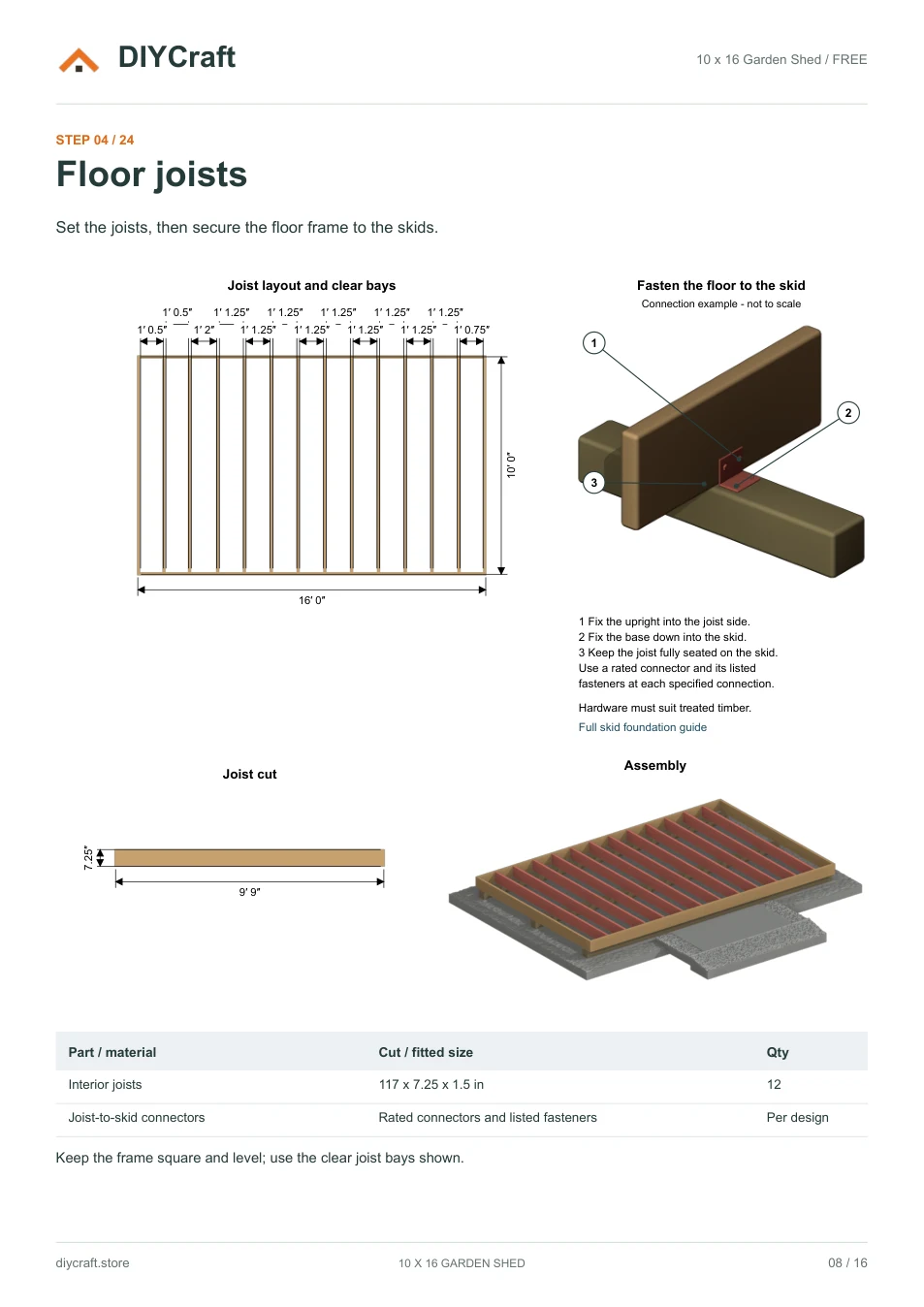

Free page 8: joist bays, cut and floor-to-skid connection

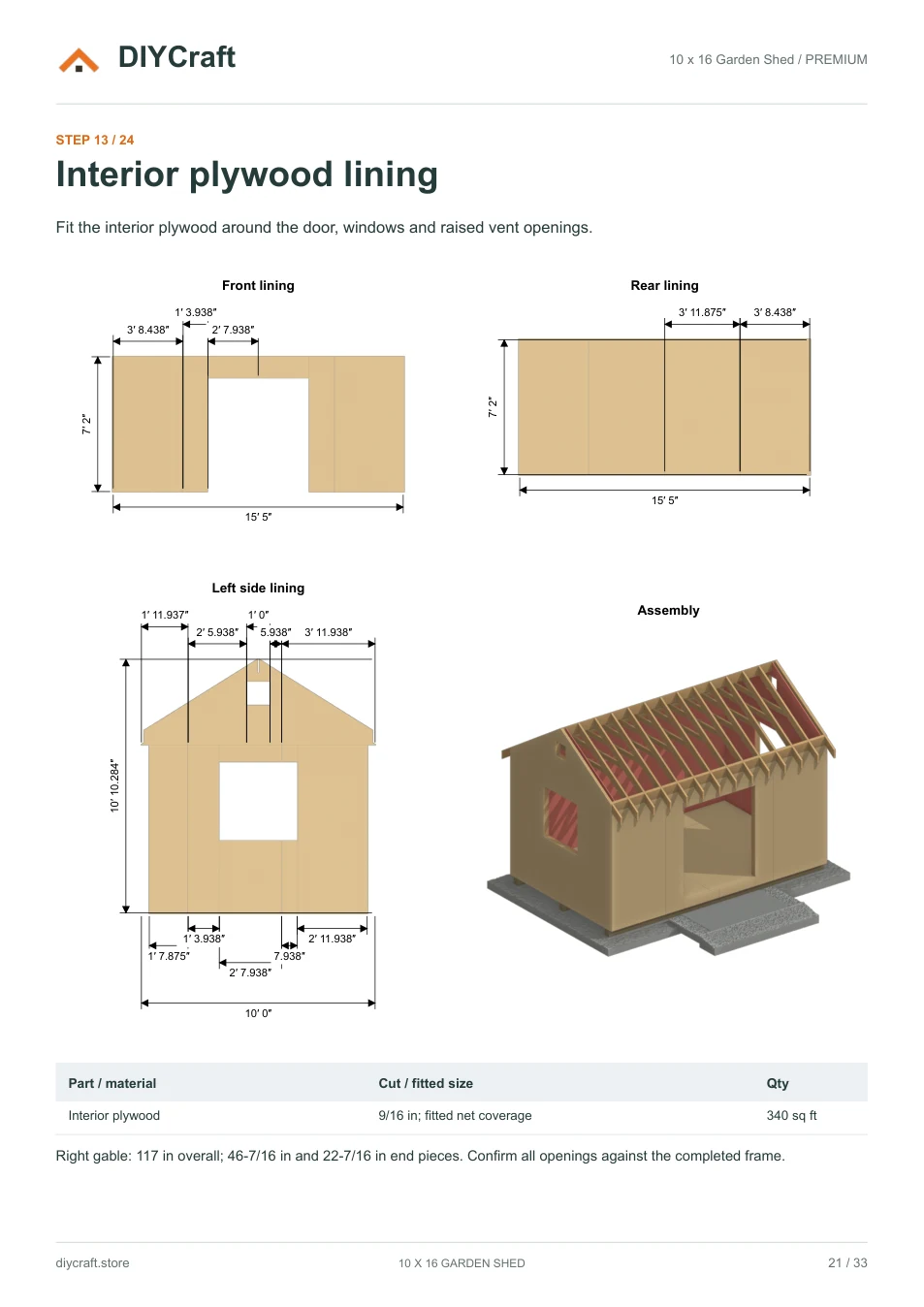

Premium page 21: larger wall drawings and assembly view
Dimensions that match the drawing
- Floor frame
- 192 x 120 in (16 x 10 ft)
- Foundation
- Three 192 in nominal 6 x 6 skids; actual 5.5 x 5.5 in
- Side windows
- Two 40 in frames with four shutters
- Roof
- 32-degree gable roof with shingles
- Revision
- October 25, 2026 / Reviewed floor joists, clearer wall plywood and larger interior-lining views
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
