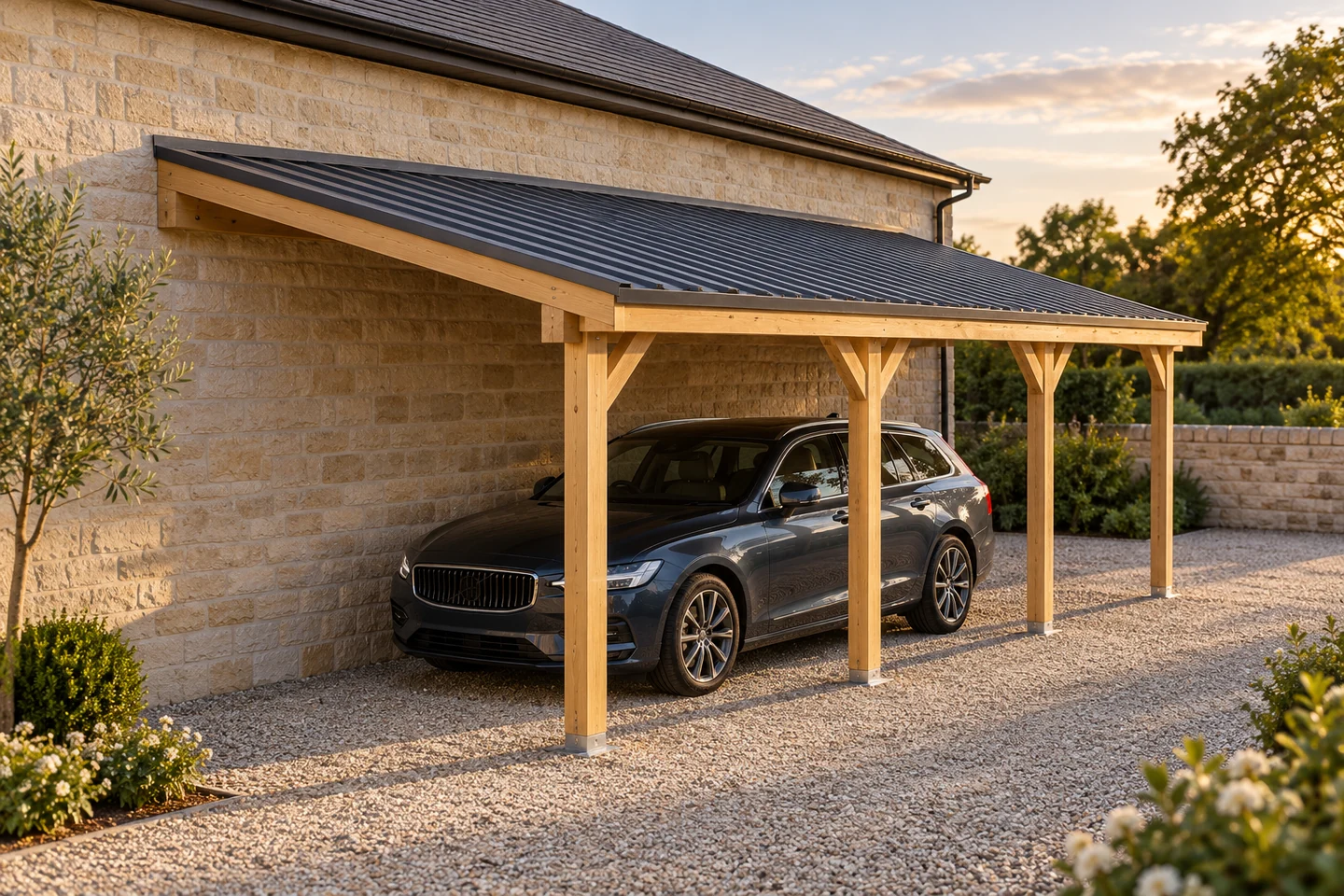

Design visualization of the 12x24 wall-attached lean-to carport described in the PDF. Select the image to enlarge it.
See actual pages from the PDFPremium PDF plan
12x24 Wall-Attached Lean-To Carport Plans
A timber lean-to carport attached to the house wall, with four outer posts and a shallow metal roof. Nine combined drawing and 3D assembly steps plus an itemized shopping list.
Nominal post-face set-out: 12 x 24 ft
Look inside the plan
Selected pages from the actual premium PDF. Select a page to enlarge it.

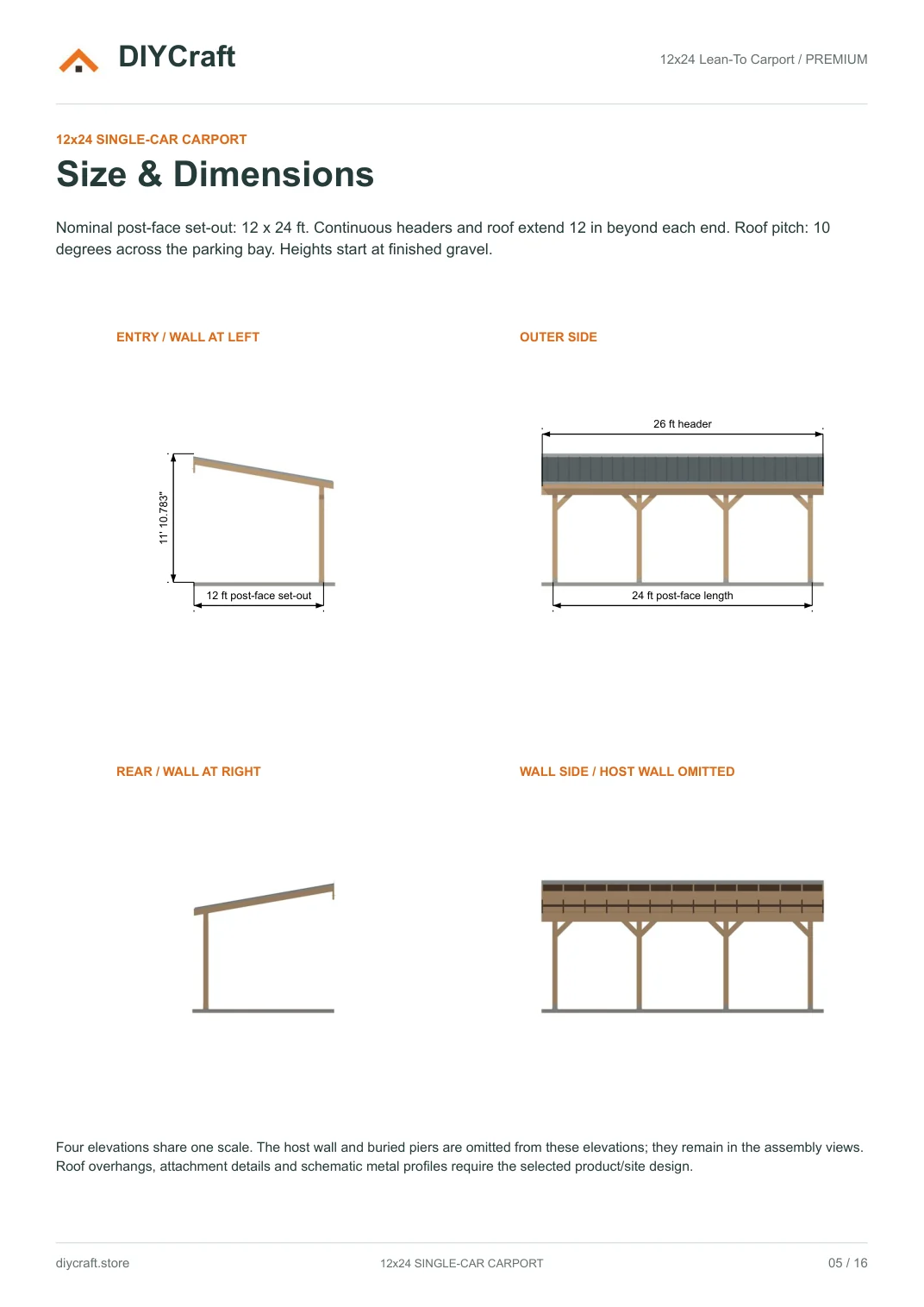

Premium page 5: four elevations and nominal set-out

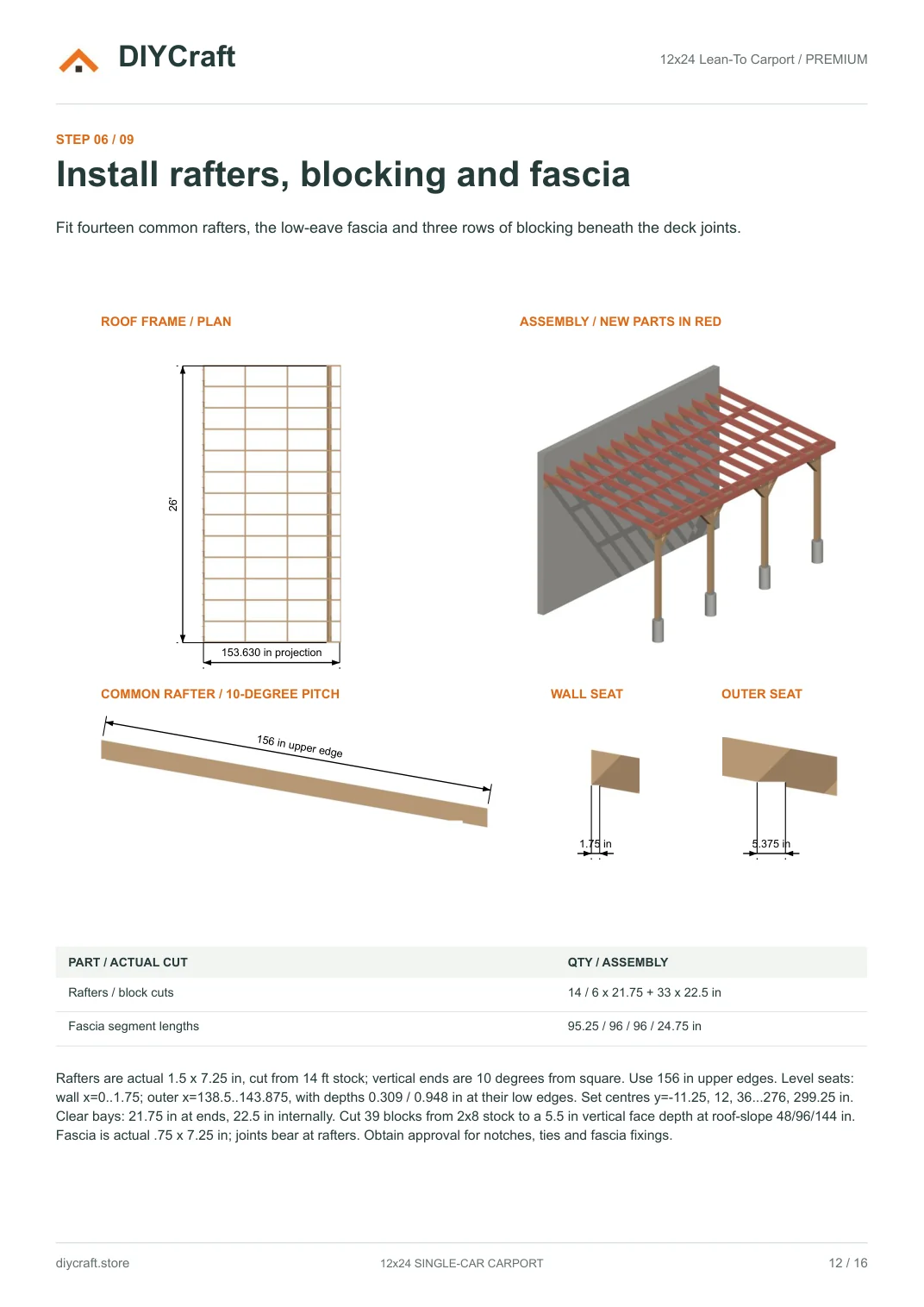

Premium page 12: fitted wall and outer bearing seats with assembly view

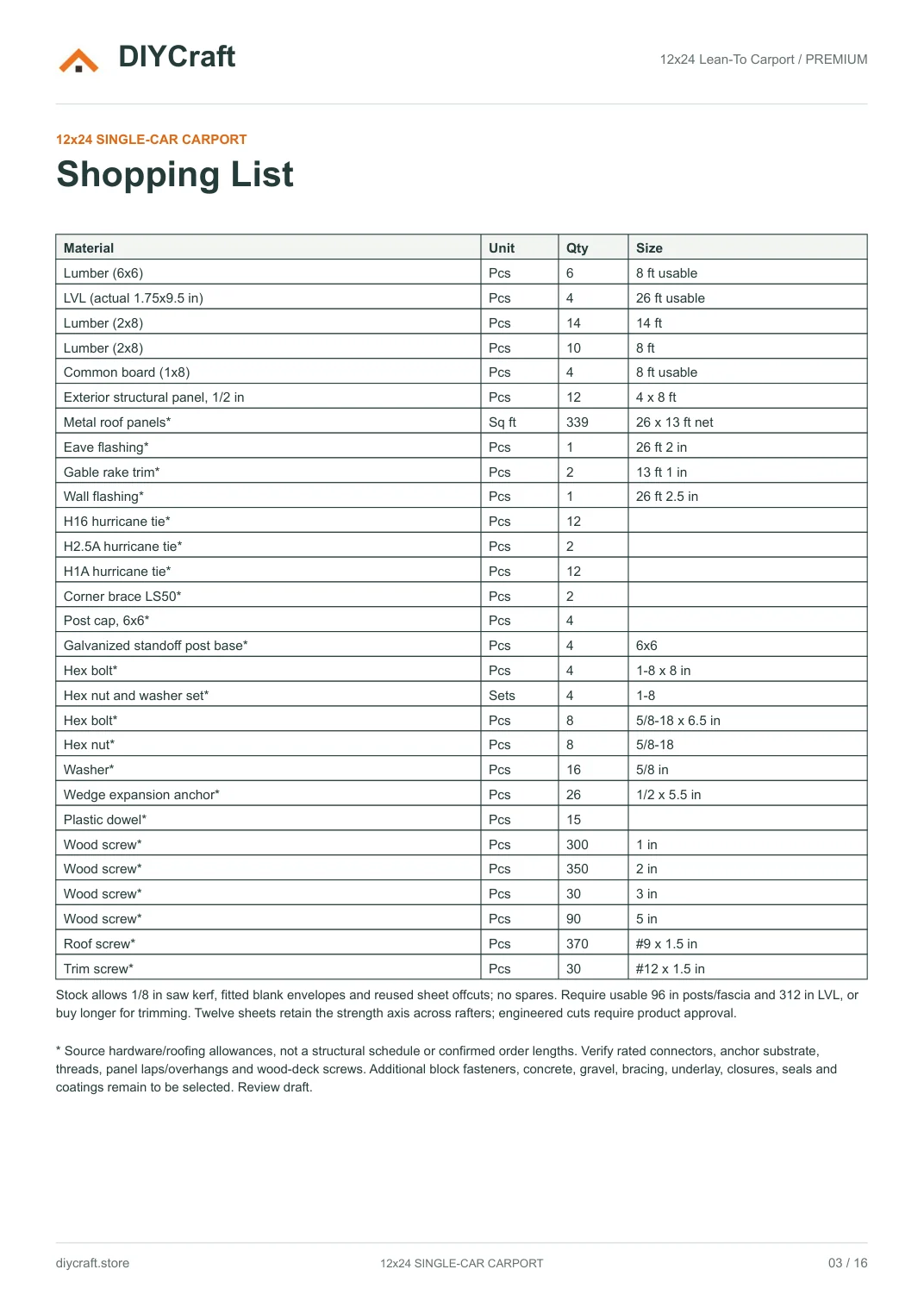

Premium page 3: compact material, unit, quantity and size table
Dimensions and features
- Nominal post-face set-out
- 12 x 24 ft
- Header and roof length
- 26 ft along the wall
- Rafter upper-edge slope length
- 156 in (13 ft)
- Roof pitch
- 10 degrees (2.116:12)
- Outer frame
- Four 6x6 posts, six braces and a triple-ply header
- Roof deck
- Twelve stock 4 x 8 ft sheets; sixteen fitted pieces
Fit and use
Verify the existing wall substrate and load path before building. Site-specific footing, frost, wind/snow, lateral restraint, member capacity/exposure, engineered cuts and rated connections require design. Hardware and roofing figures are source allowances; confirm final schedules, laps, overhangs, wall flashing and the selected roofing system.
- Dimensions are shown in inches. Measure your stock and dry-fit before fastening.
- Build time, material costs and load capacity have not been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
Revision: October 28, 2026 / Selected stone-evening cover and one-page shopping list
