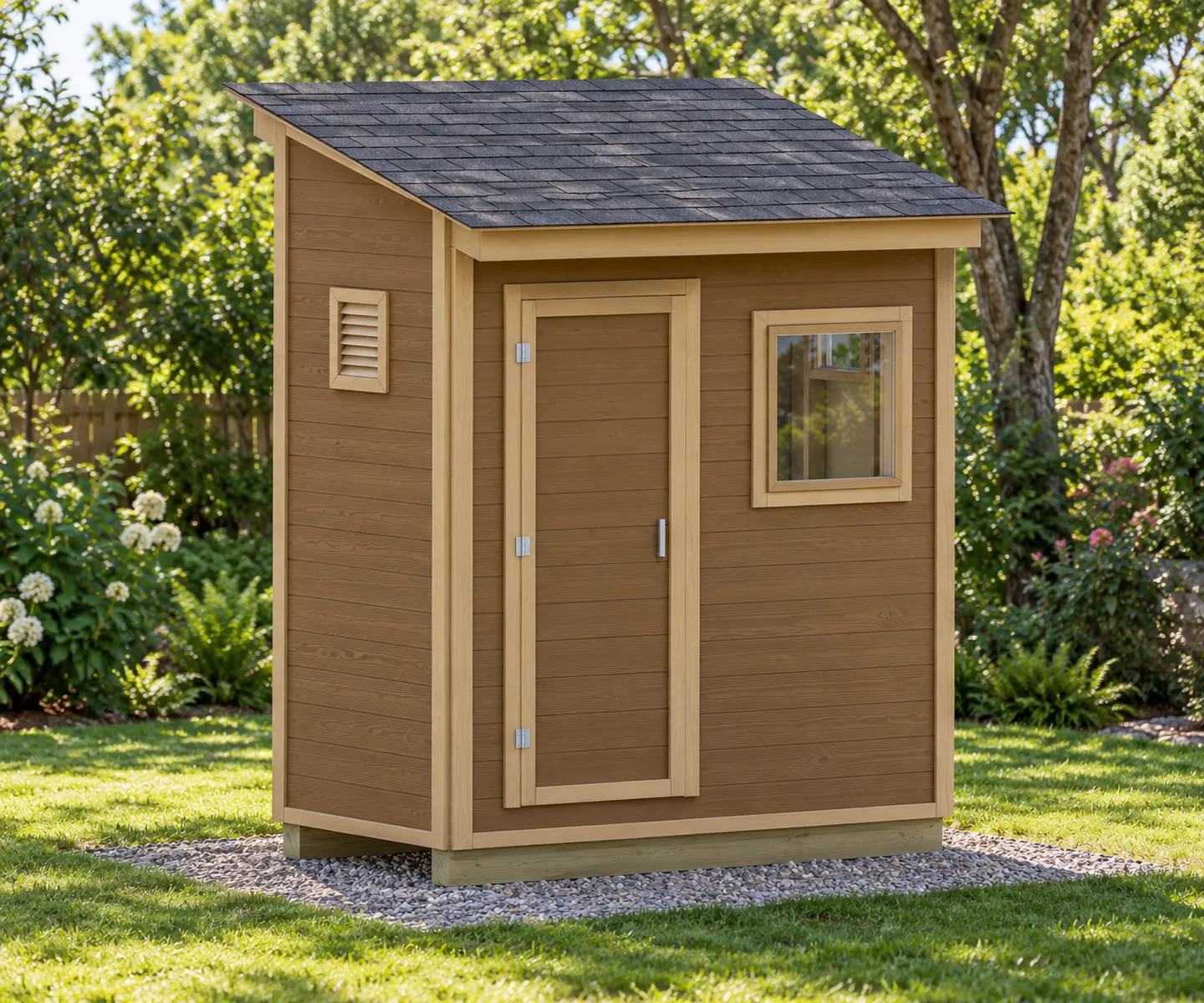

Design visualization. Landscaping and paving are not included. Select the image to enlarge it.
See actual pages from the PDFFree + premium editions
4x8 Storage Shed Plans
Compact storage with a front window, a single hinged door and a simple shingle roof. Detailed drawings and 3D assembly views share each step page.
Actual footprint: 96 x 48 in (8 x 4 ft)
Construction details to resolve: Check site bearing, drainage, frost and anchorage, floor and roof loads, wall bracing and connections for the intended location. Dry-fit the rafter seats and chosen hardware before final fixing. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 8 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 17-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 13 | 26 |
| Illustrated build steps | 8 selected steps | All 17 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

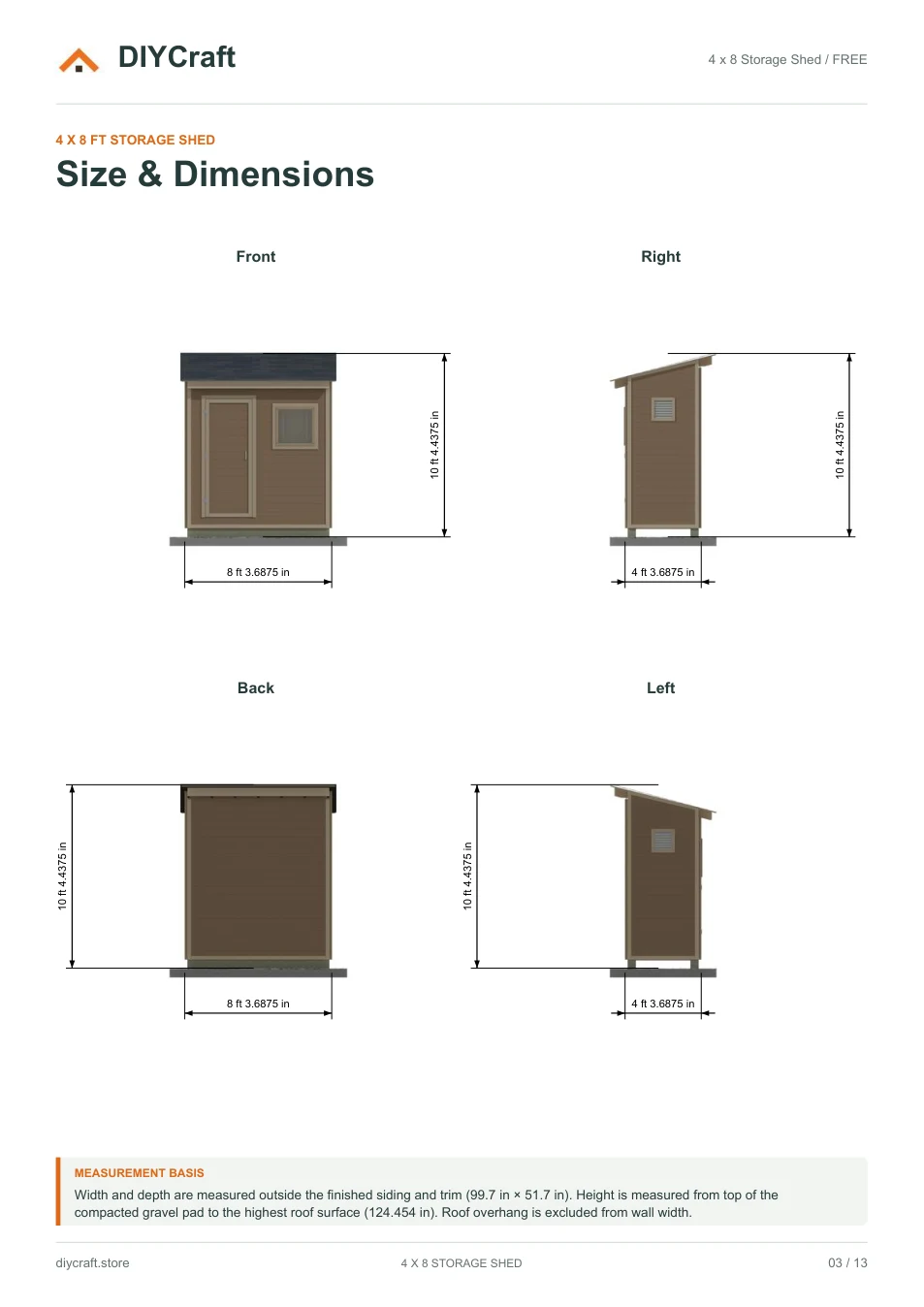

Free page 3: all four elevations

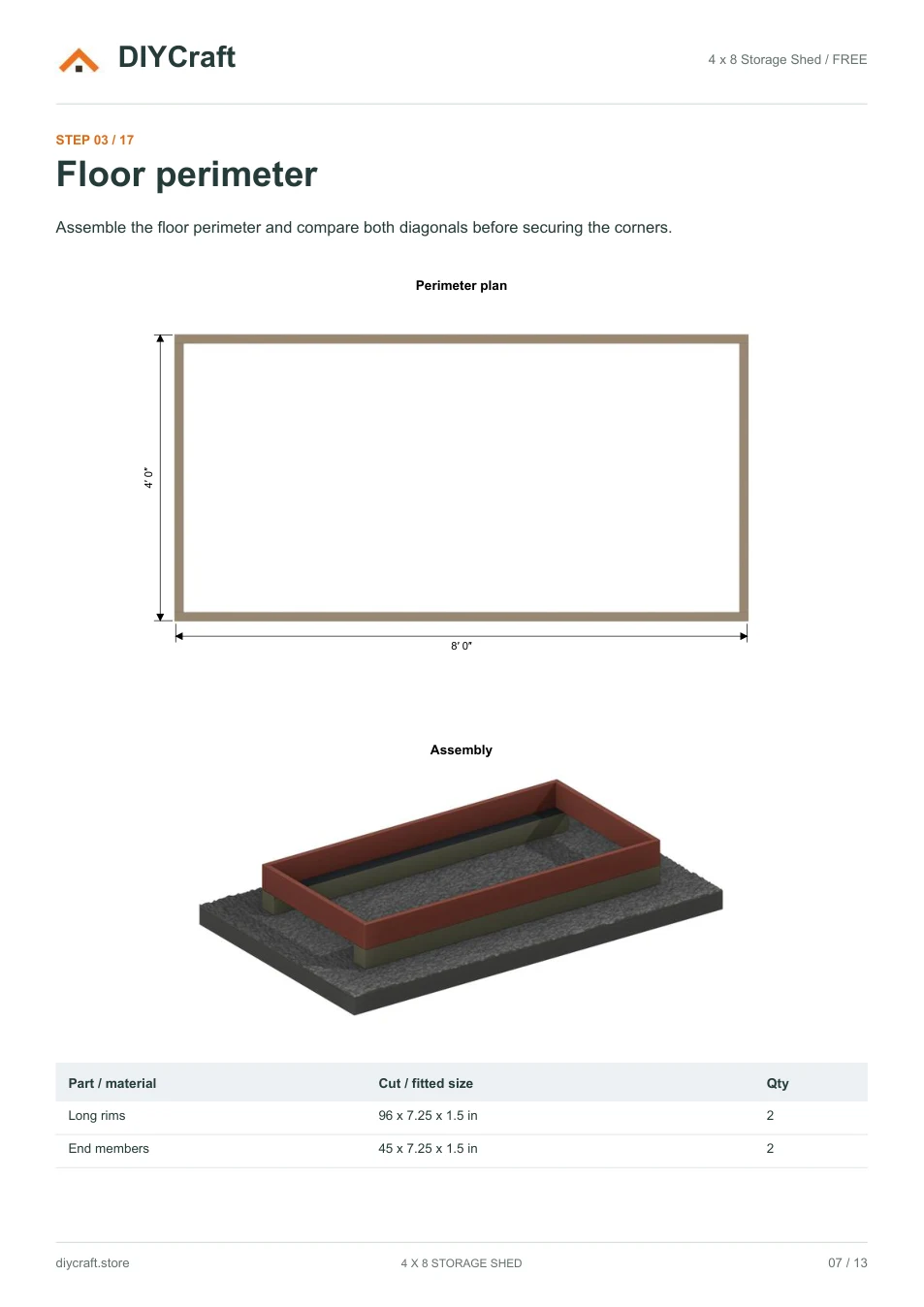

Free page 7: detailed plan and 3D assembly

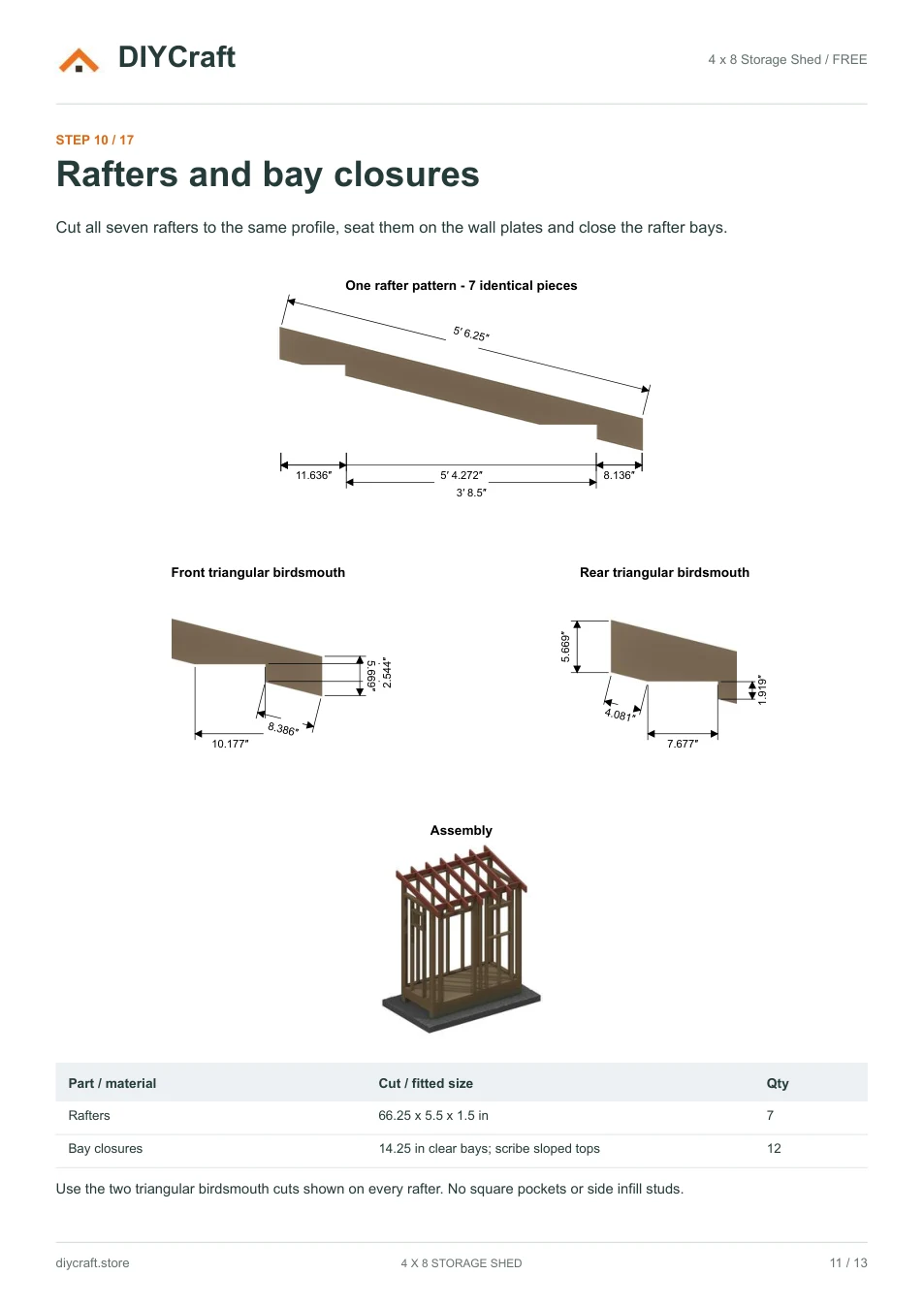

Free page 11: triangular cuts and roof assembly
Dimensions that match the drawing
- Floor frame
- 96 x 48 in (8 x 4 ft)
- Gravel pad
- 120 x 72 x 6 in
- Foundation
- Two 96 in treated skids
- Door rough opening
- 32 x 80 in
- Front window
- 26 x 26 in
- Roof
- 3:12 pitch; 104 x 73.75 in plywood deck
- Side vents
- Two 12 x 12 in clear openings
- Revision
- October 24, 2026 / Combined step pages, front and side top ties, one rafter pattern
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
