6x14 Pergola with Swing Plans
A four-post timber pergola with a 6x14 ft open roof and a suspended slatted bench swing. Ten construction steps pair dimensioned drawings with 3D assembly views.
Roof footprint: 168 x 72 in (14 x 6 ft)
Look inside the plan
Selected pages from the actual premium PDF. Select a page to enlarge it.

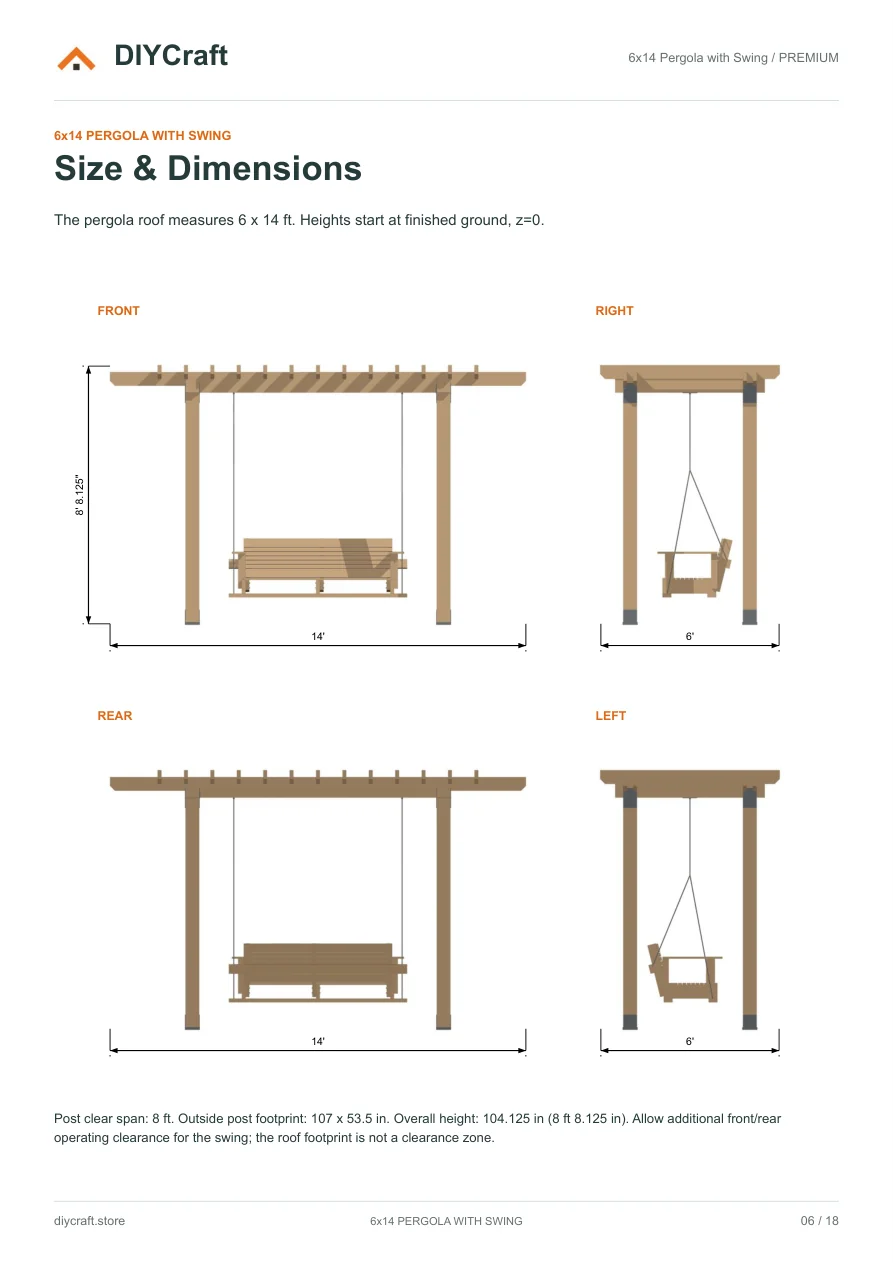

Premium page 6: four elevations and roof footprint

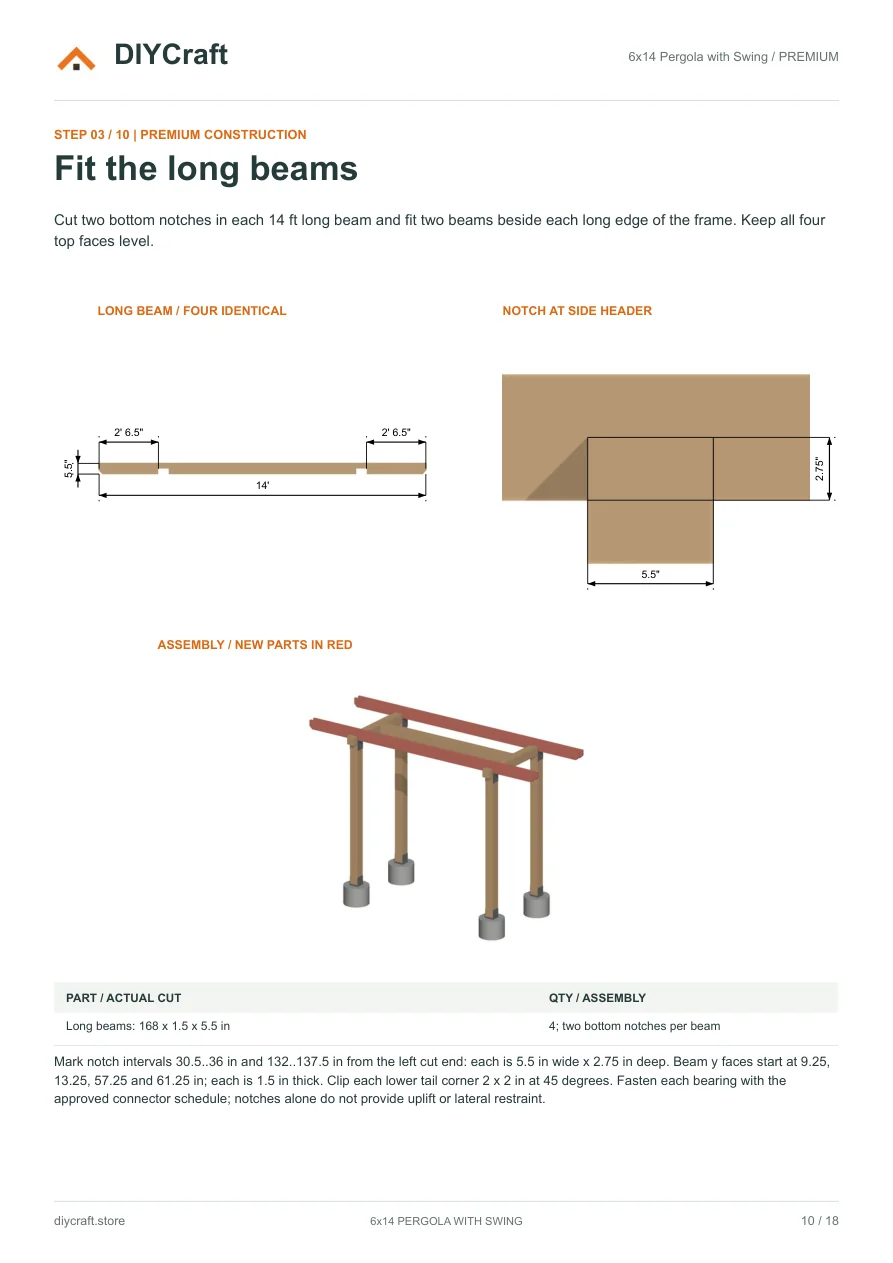

Premium page 10: beam cuts, bearing notches and assembly

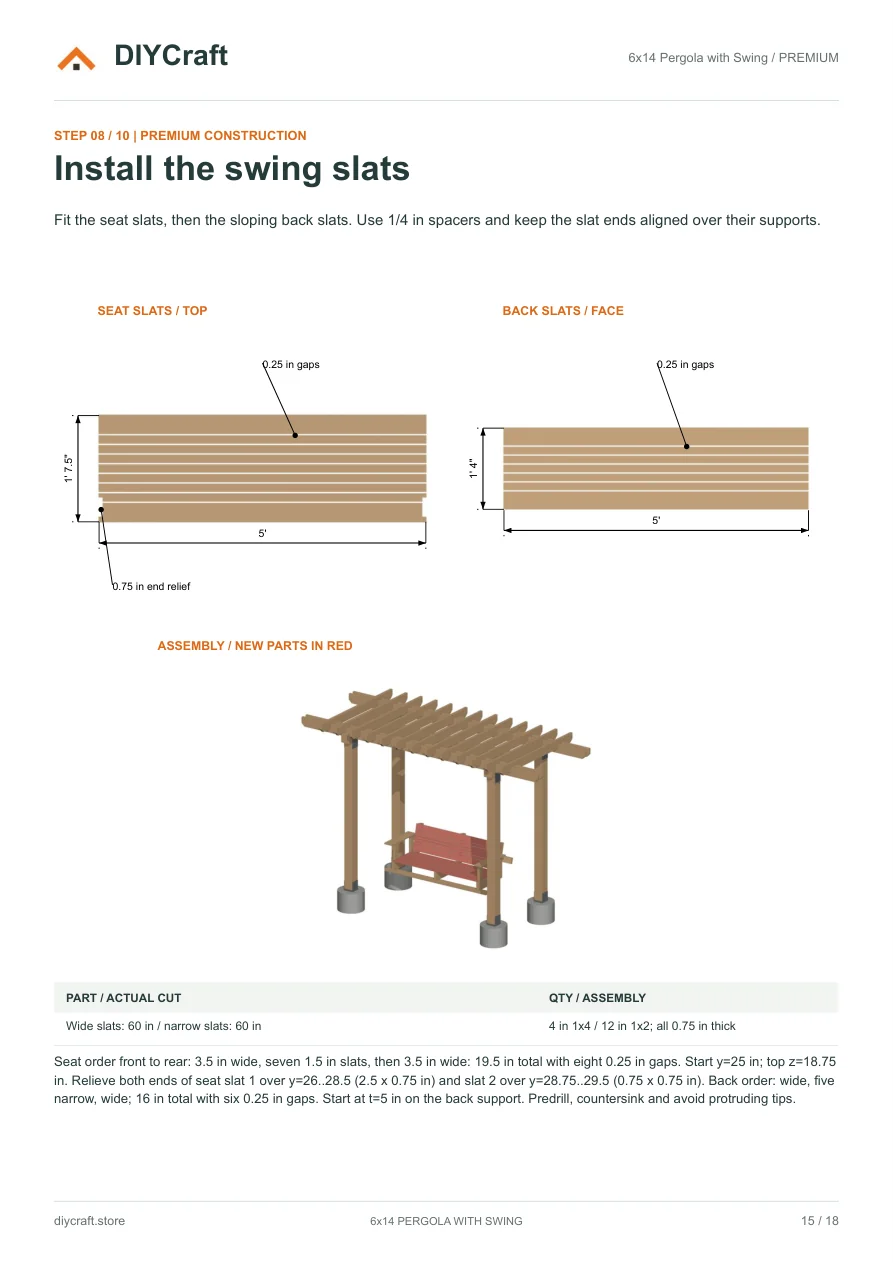

Premium page 15: seat and back slats, gaps and assembly
Dimensions and features
- Roof footprint
- 168 x 72 in (14 x 6 ft)
- Clear post span
- 96 in (8 ft)
- Outside post footprint
- 107 x 53.5 in
- Overall height
- 104.125 in
- Swing seat slats
- 60 in wide
Fit and use
Obtain site-specific footing, anchorage, lateral-restraint, timber-member and connection design. Ordinary stand-off post bases alone do not restrain frame rotation. Use rated swing hardware and its required operating clearance; no occupant load rating or safe swing-travel limit is assigned.
- Dimensions are shown in inches. Measure your stock and dry-fit before fastening.
- Build time, material costs and load capacity have not been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
Revision: October 28, 2026 / Open pergola with bench swing
