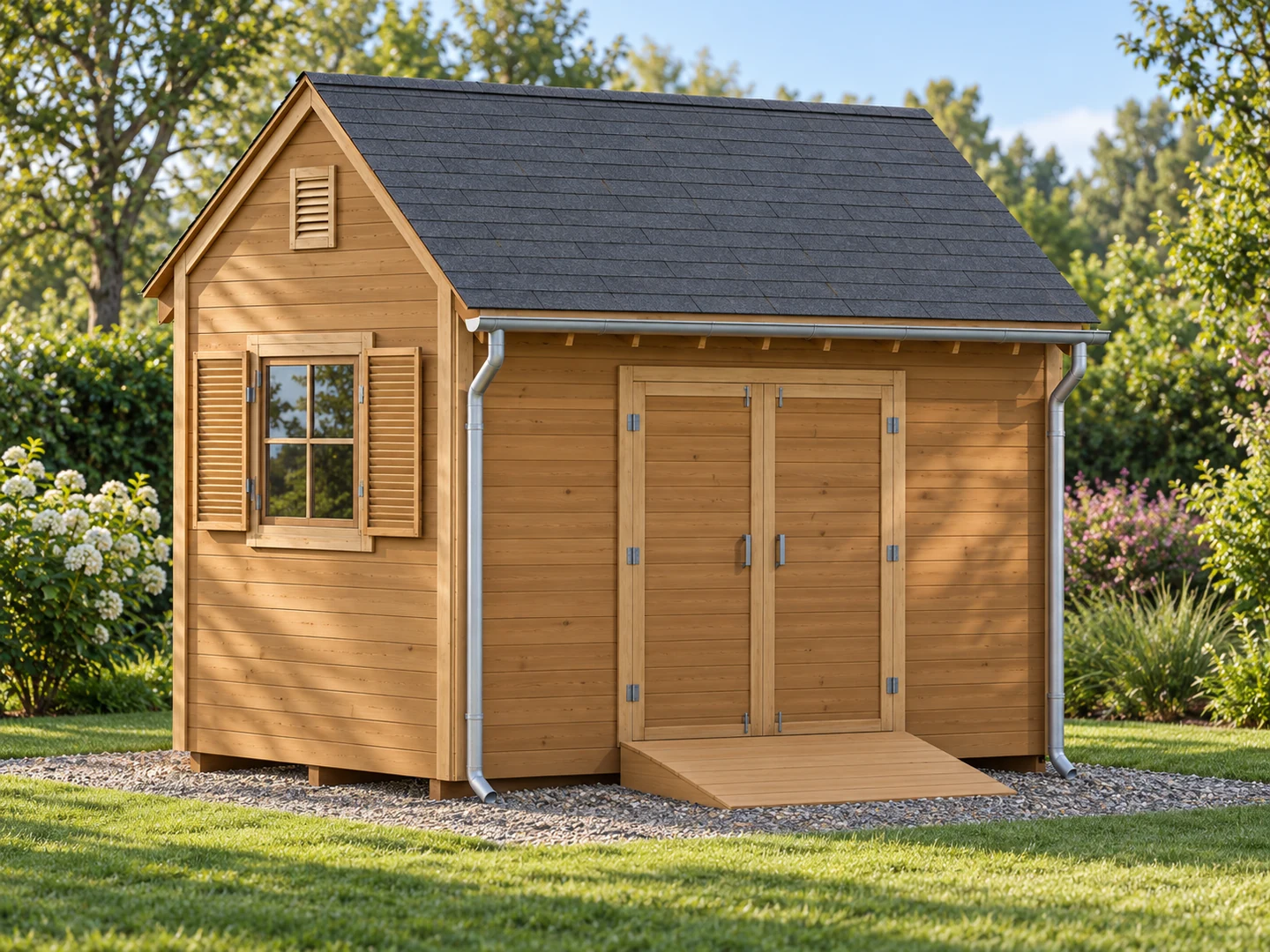

Design visualization. Landscaping and paving are not included. Select the image to enlarge it.
See actual pages from the PDFFree + premium editions
8x12 Garden Shed Plans
An 8x12 garden shed with double doors, side windows and shutters, rainwater drainage and a door ramp. Detailed 2D drawings and 3D assembly views share each step page.
Actual footprint: 144 x 96 in (12 x 8 ft)
Construction details to resolve: Check ground bearing, drainage, frost, anchorage, local loads and connections for the intended site. Select compatible fasteners and follow the chosen hardware installation instructions. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.
One design. Two levels of detail.
Free includes 11 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 23-step sequence, materials and cutting lists, tools, hardware and additional details.
| Included | Free | Premium |
|---|---|---|
| PDF pages | 16 | 32 |
| Illustrated build steps | 11 selected steps | All 23 steps |
| Dimensioned drawings and model views | Included | Included |
| Full materials and cutting list | Not included | Included |
| Tools list | Not included | Included |
| Fasteners and hardware list | Not included | Included |
| Additional construction and joint details | Not included | Included |
| Full-page lumber-size reference | Not included | Included |
| Technical support | Not included | Included |
| Structural / site-specific design | Not included | Not included |
Look inside the plan
These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

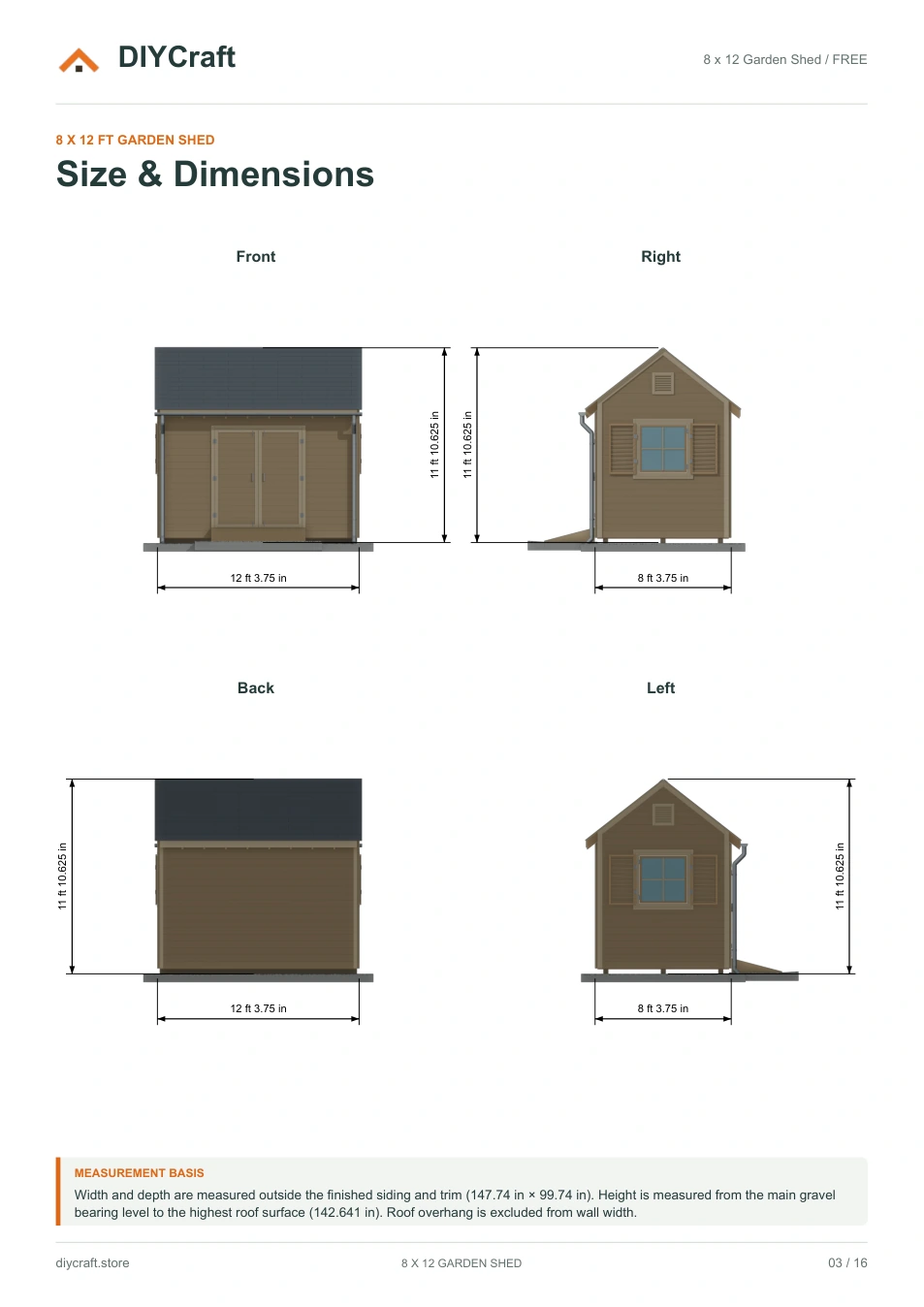

Free page 3: all four elevations

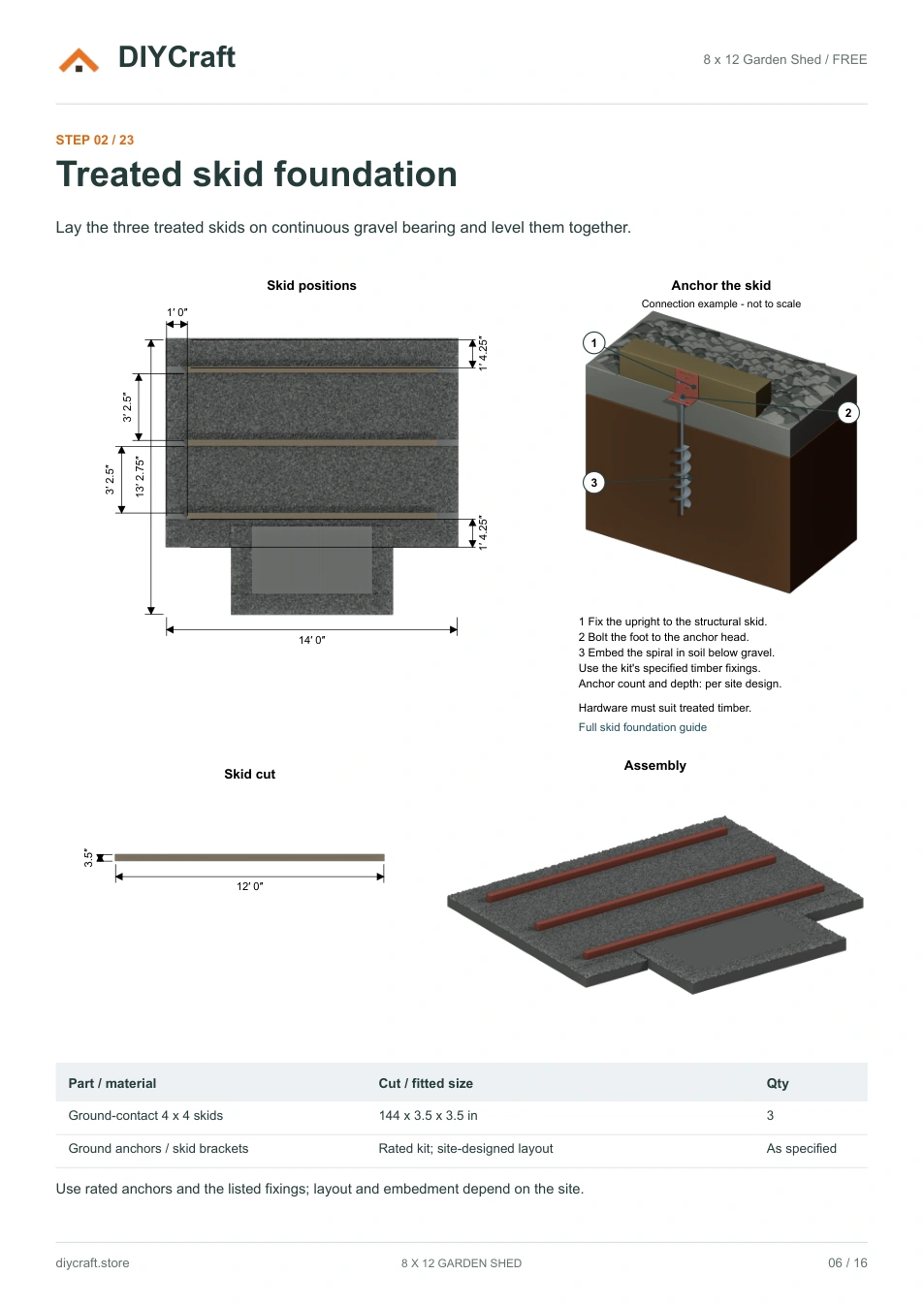

Free page 6: skid layout, cuts and anchoring example

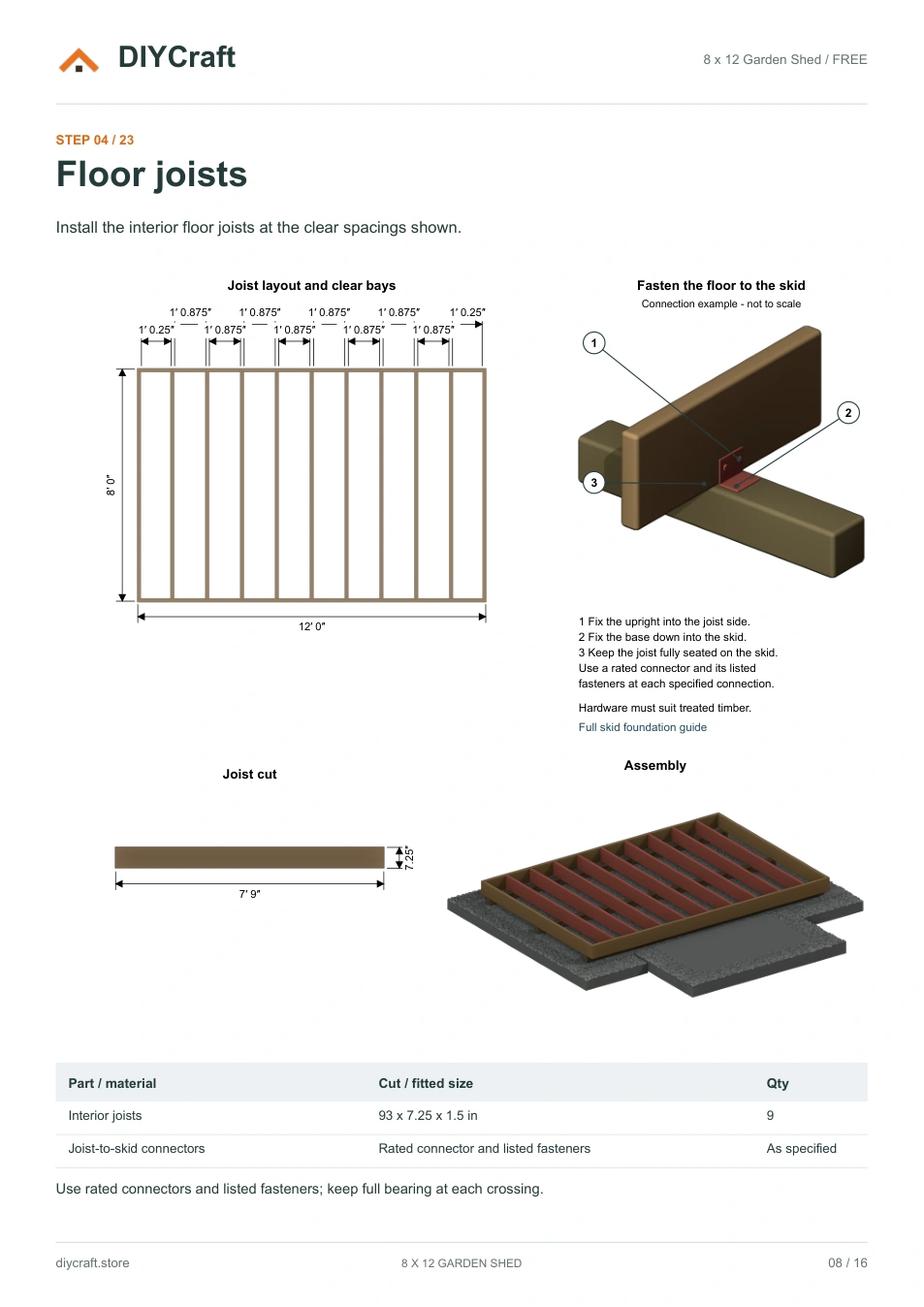

Free page 8: joist bays, cuts and skid connection example
Dimensions that match the drawing
- Floor frame
- 144 x 96 in (12 x 8 ft)
- Foundation
- Three 144 in treated 4 x 4 skids over gravel
- Floor area
- 96 sq ft
- Wall design
- Side windows and shutters
- Revision
- October 25, 2026 / Reviewed framing, combined step pages, skid connections and no bottom wall trims
Before you choose
- This is a digital PDF, not a materials kit or a finished product.
- Dimensions are shown in feet and inches.
- Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
- Build time and material budget have not yet been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
