8x16 Lean-to Storage Shed design visualization

Design visualization. Landscaping and paving are not included. Select the image to enlarge it.

See actual pages from the PDF

Free + premium editions

8x16 Lean-to Storage Shed Plans

A light-brown storage shed with double doors, a gravel-and-skid base and dark asphalt shingles.

Actual footprint: 192 x 96 in (16 x 8 ft)

Premium introductory price

$9.99$19.99 planned regular price

USD · One PDF edition · Not a previous selling price

38 pages · 21 stages
Dimensioned drawings, materials and cutting lists, tools, hardware and additional construction details.

Illustrated design package. Structural verification, a complete connection schedule and site-specific foundation design are not included.

Get premium — $9.99

Continue to Payhip for secure checkout. After payment, Payhip provides your PDF and emails your download link. Any applicable taxes are shown at checkout.

Read the free edition before buying
18 pages · 11 stages · No account or email required.

Download free plan (PDF)
Construction details to resolve: Site bearing, drainage, frost and anchors; floor and roof load ratings; wall bracing and header capacity; rafter seats, uplift and overhang connections; and the optional equipment ramp require final design. The 3:12 shingle roof needs the selected manufacturer's low-slope underlayment and flashing details. Original-reference measurements and model differences are flagged beside affected drawings. Check materials and cut sizes against the actual assembly. Have these completed by a qualified local professional before cutting, building or loading. Both PDFs identify these requirements.

One design. Two levels of detail.

Free includes 11 selected build steps, using the same instructions and dimensioned images as premium. Premium includes the complete 21-step sequence, materials and cutting lists, tools, hardware and additional details.

Compare the free and premium 8x16 Lean-to Storage Shed PDFs
IncludedFreePremium
PDF pages1838
Illustrated build steps11 selected stepsAll 21 steps
Dimensioned drawings and model viewsIncludedIncluded
Full materials and cutting listNot includedIncluded
Tools listNot includedIncluded
Fasteners and hardware listNot includedIncluded
Additional construction and joint detailsNot includedIncluded
Full-page lumber-size referenceNot includedIncluded
Technical supportNot includedIncluded
Structural / site-specific designNot includedNot included

Look inside the plan

These are selected pages from the actual free PDF. Select a page to enlarge it, or download the full free edition above.

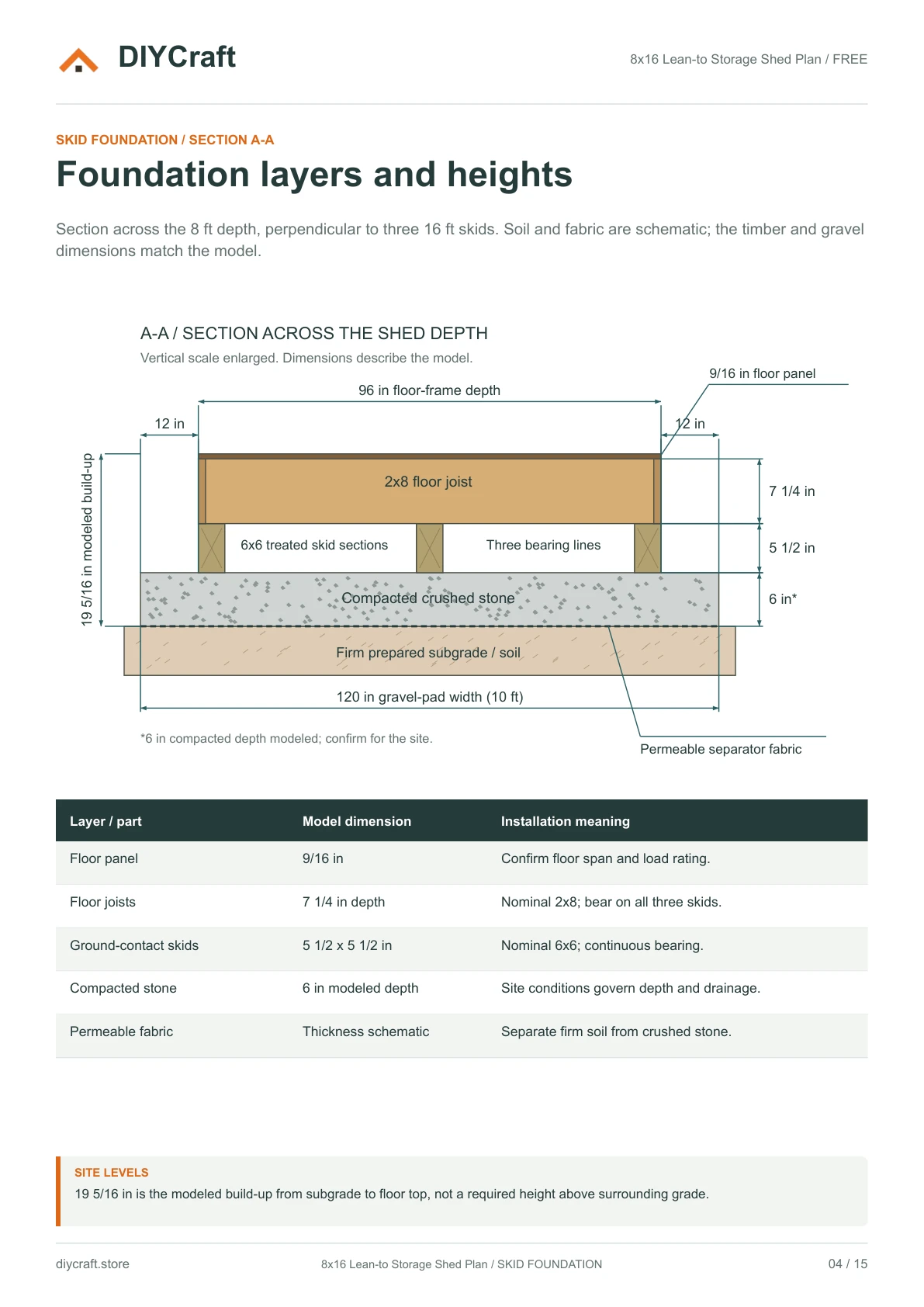

Size and dimensions: Free page 3: front, right, rear and left views from the free PDF
Size and dimensions
Free page 3: front, right, rear and left views

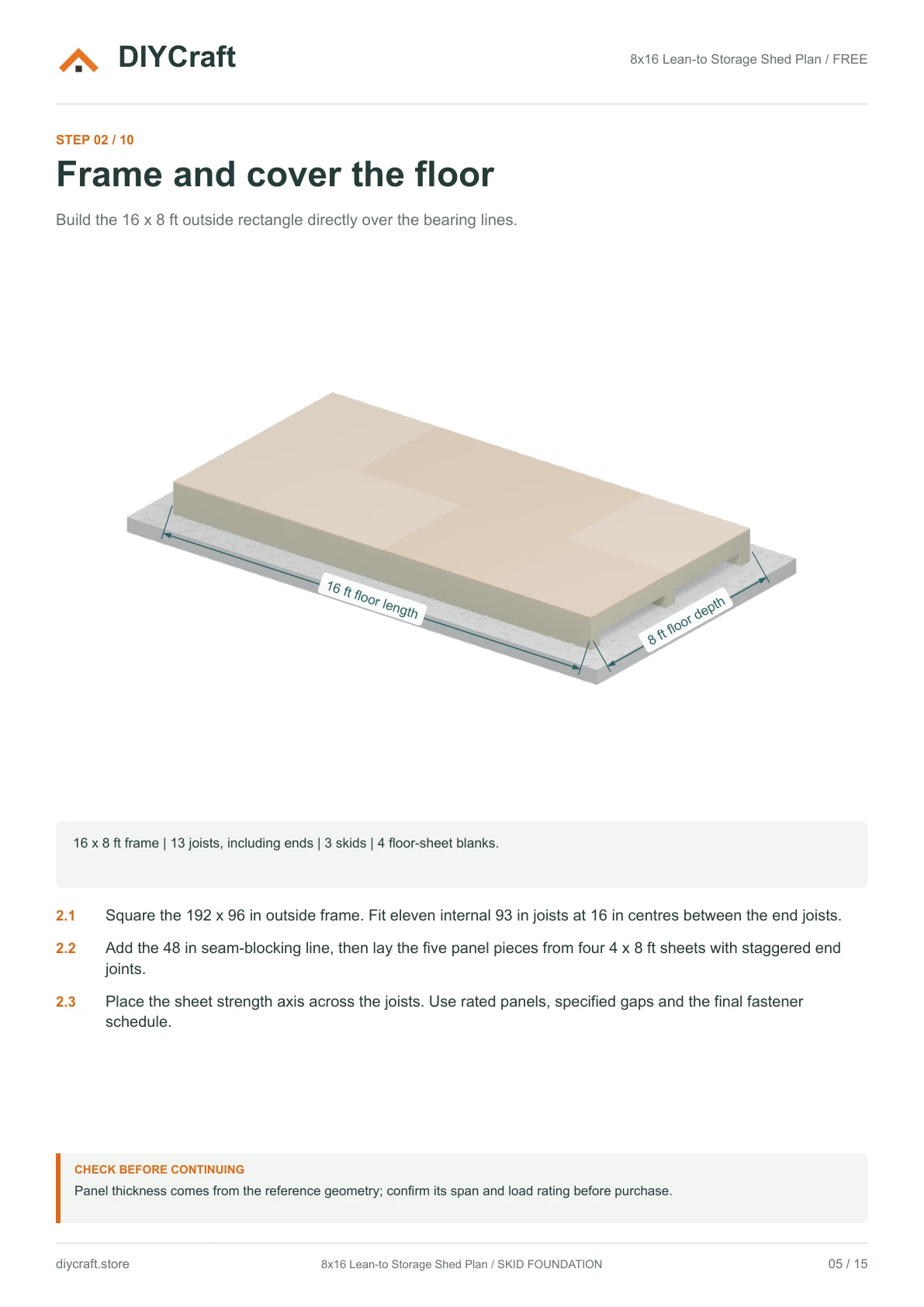

Floor perimeter: Free page 9: assemble the floor frame from the free PDF
Floor perimeter
Free page 9: assemble the floor frame

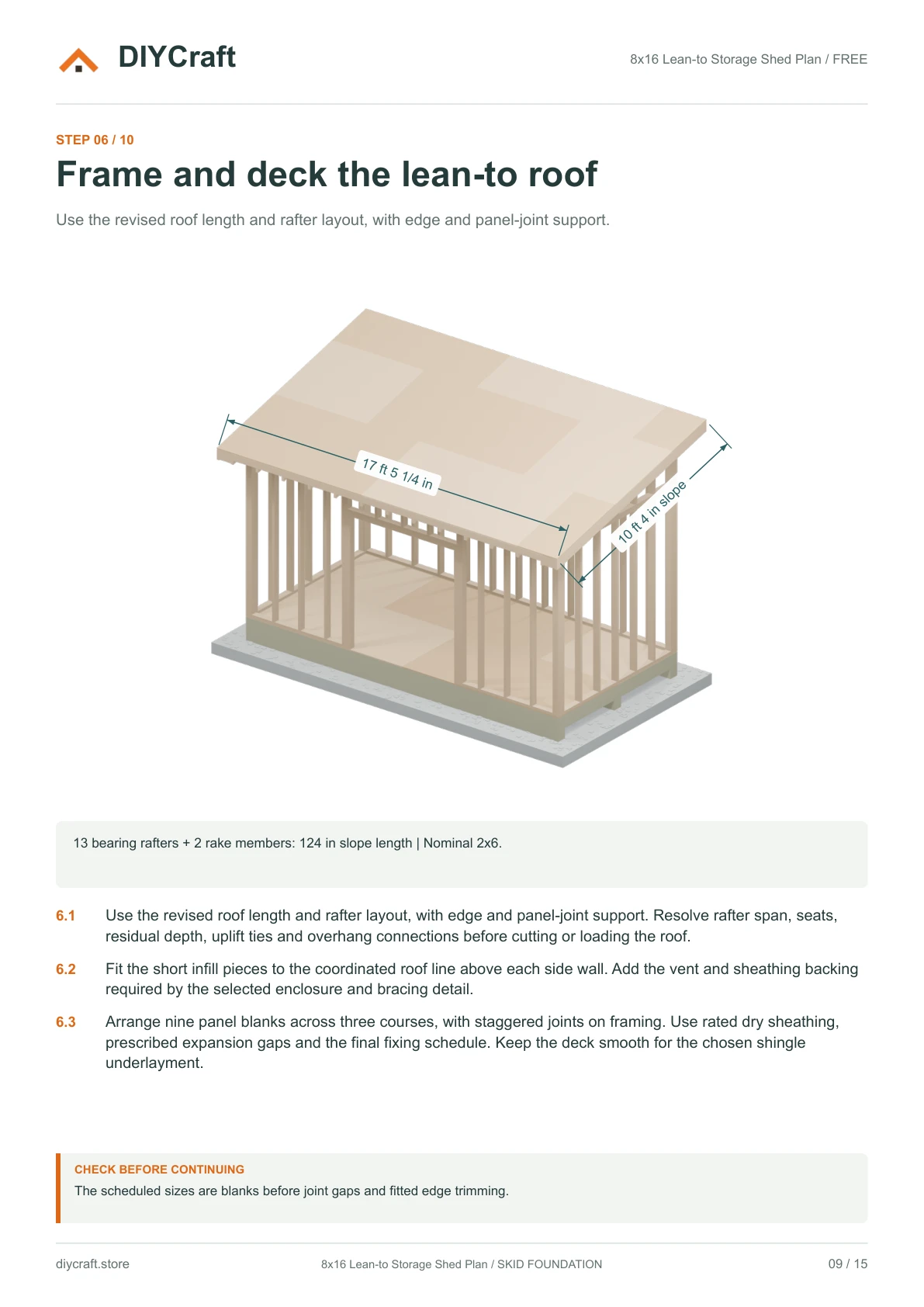

Roof frame: Free page 14: lean-to roof framing from the free PDF
Roof frame
Free page 14: lean-to roof framing

Dimensions that match the drawing

Structural floor frame
192 x 96 in (16 x 8 ft)
Gravel pad
216 x 120 in (18 x 10 ft); 6 in modeled compacted depth
Skids
Three nominal 6x6 runners, each 16 ft long
Door opening
64 x 72 in clear
Roof pitch
3:12 (14.04 degrees)
Roof plane
209 1/4 x 124 in
Roof covering
Dark asphalt shingles with specified low-slope underlayment
Optional ramp
69 in frame width; 48 in horizontal run
Revision
October 4, 2026 / Reviewed dimensions and frame-first ramp assembly

Before you choose

  • This is a digital PDF, not a materials kit or a finished product.
  • Dimensions are shown in feet and inches.
  • Not an engineered or permit-ready construction set. Foundation design, structural approval and verified load ratings are not included.
  • Build time and material budget have not yet been verified in a physical build.
  • Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
  • Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.

Explore the 11 selected build steps.
