Craft Workbench Plans
A broad craft worktop, three shelf levels and a divided bin keep tools and materials within reach. Seven steps pair dimensioned drawings with 3D assembly views.
Worktop: 99 x 41 x 0.75 in
Look inside the plan
Selected pages from the actual premium PDF. Select a page to enlarge it.

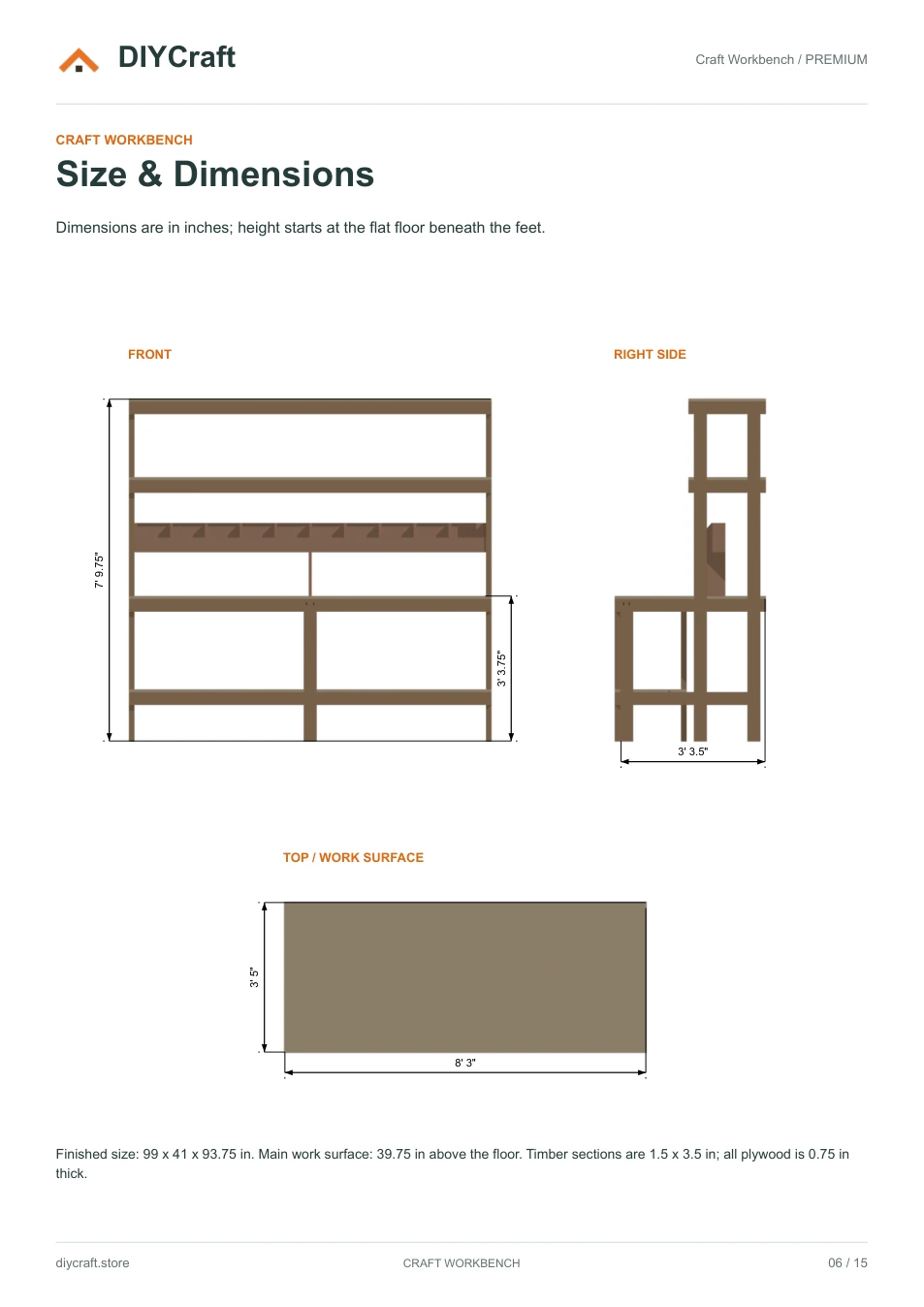

Premium page 6: overall dimensions

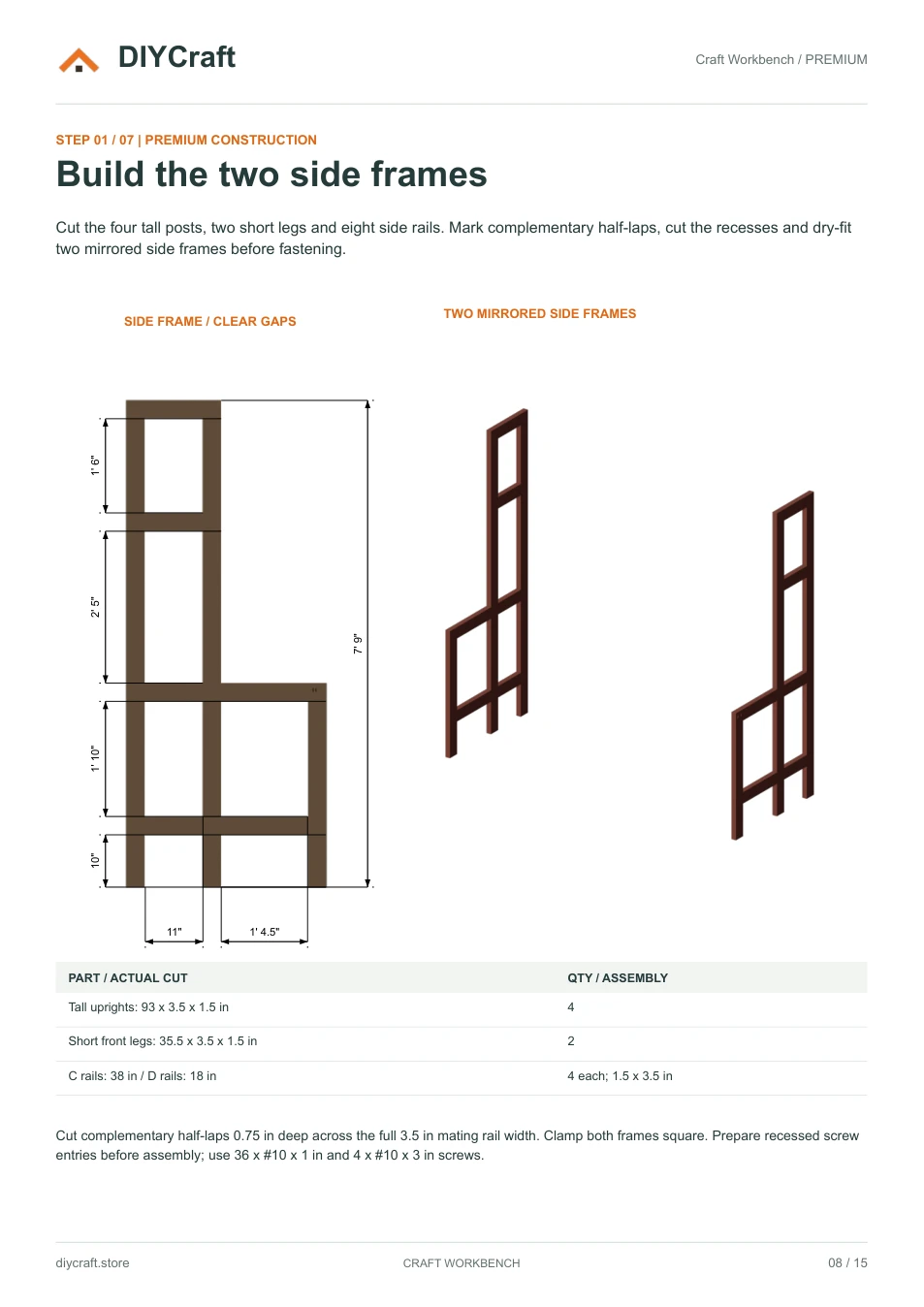

Premium page 8: half-lap joints and frame assembly

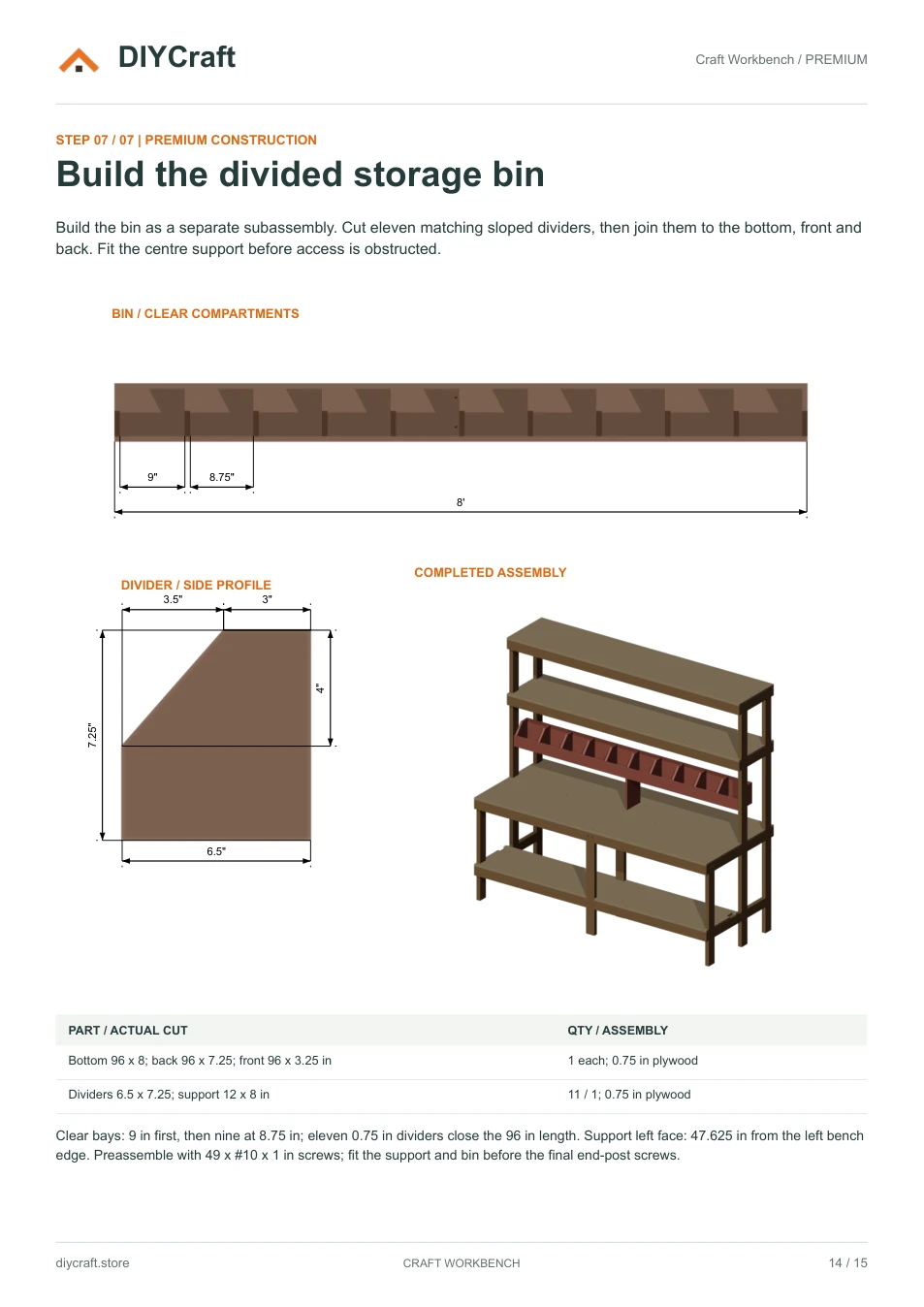

Premium page 14: bin parts, dividers and assembly
Dimensions and features
- Worktop
- 99 x 41 x 0.75 in
- Worktop height
- 39.75 in
- Overall height
- 93.75 in
- Lower shelf
- 99 x 19.5 in
- Middle and top shelves
- 99 x 21 in each
- Divided storage bin
- 96 x 8 x 8 in; ten compartments
Fit and use
Dry-fit the half-lap joints and prepare recessed screw entry points before closing the frame. Verify fastener lengths against the actual stock, check squareness and provide suitable restraint against tipping. No engineered load rating is specified.
- Dimensions are shown in inches. Measure your stock and dry-fit before fastening.
- Build time, material costs and load capacity have not been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
Revision: October 25, 2026 / Premium furniture plan
