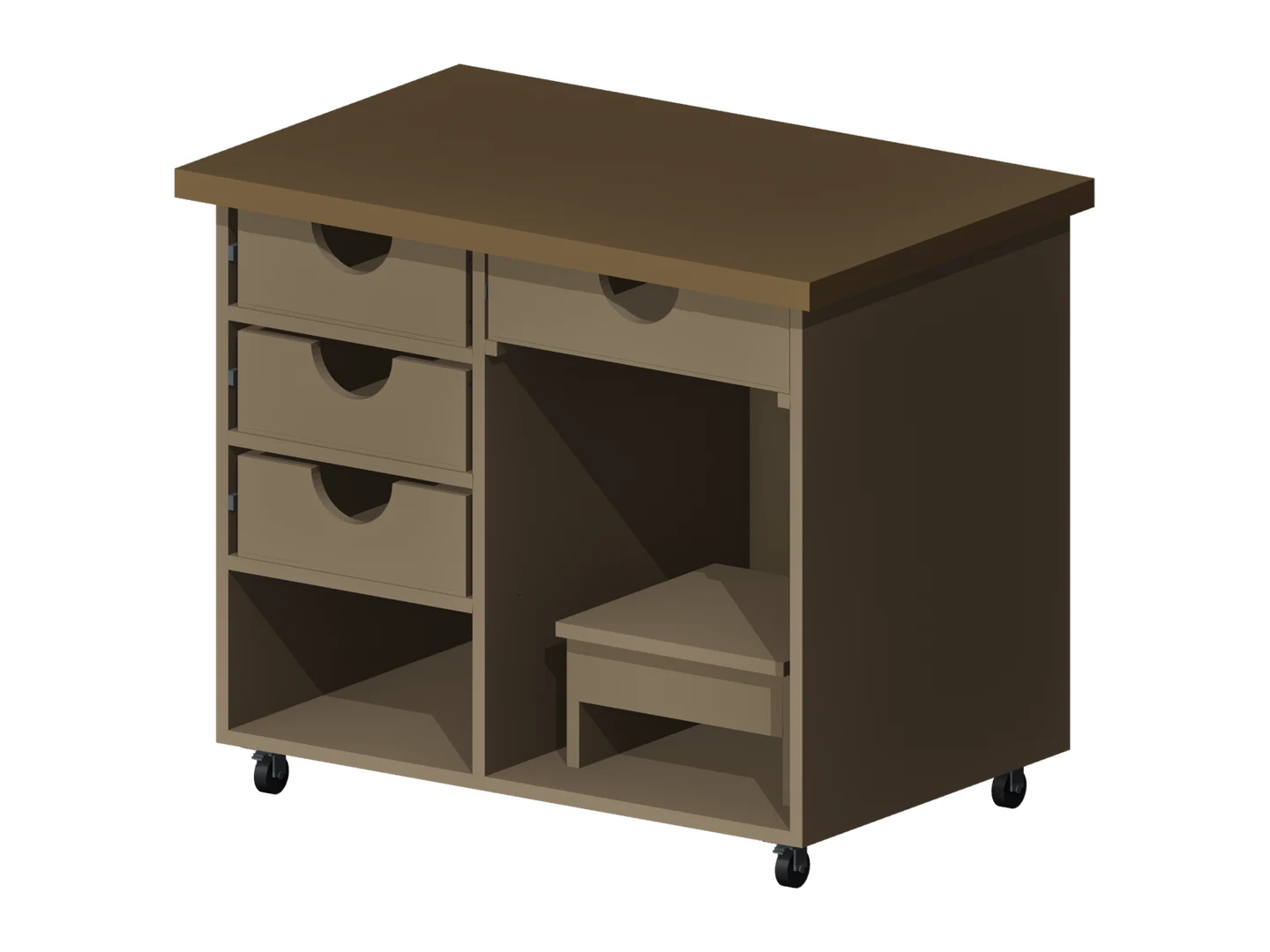

Design visualization of the workbench described in the PDF. Select the image to enlarge it.
See actual pages from the PDFPremium PDF plan
Kids' Workbench Plans
A compact plywood workbench with three storage bins, a drawer, a removable stool and locking castors. Seven illustrated steps cover the cabinet, storage and moving parts.
Worktop: 39 x 25 x 1.5 in
Look inside the plan
Selected pages from the actual premium PDF. Select a page to enlarge it.

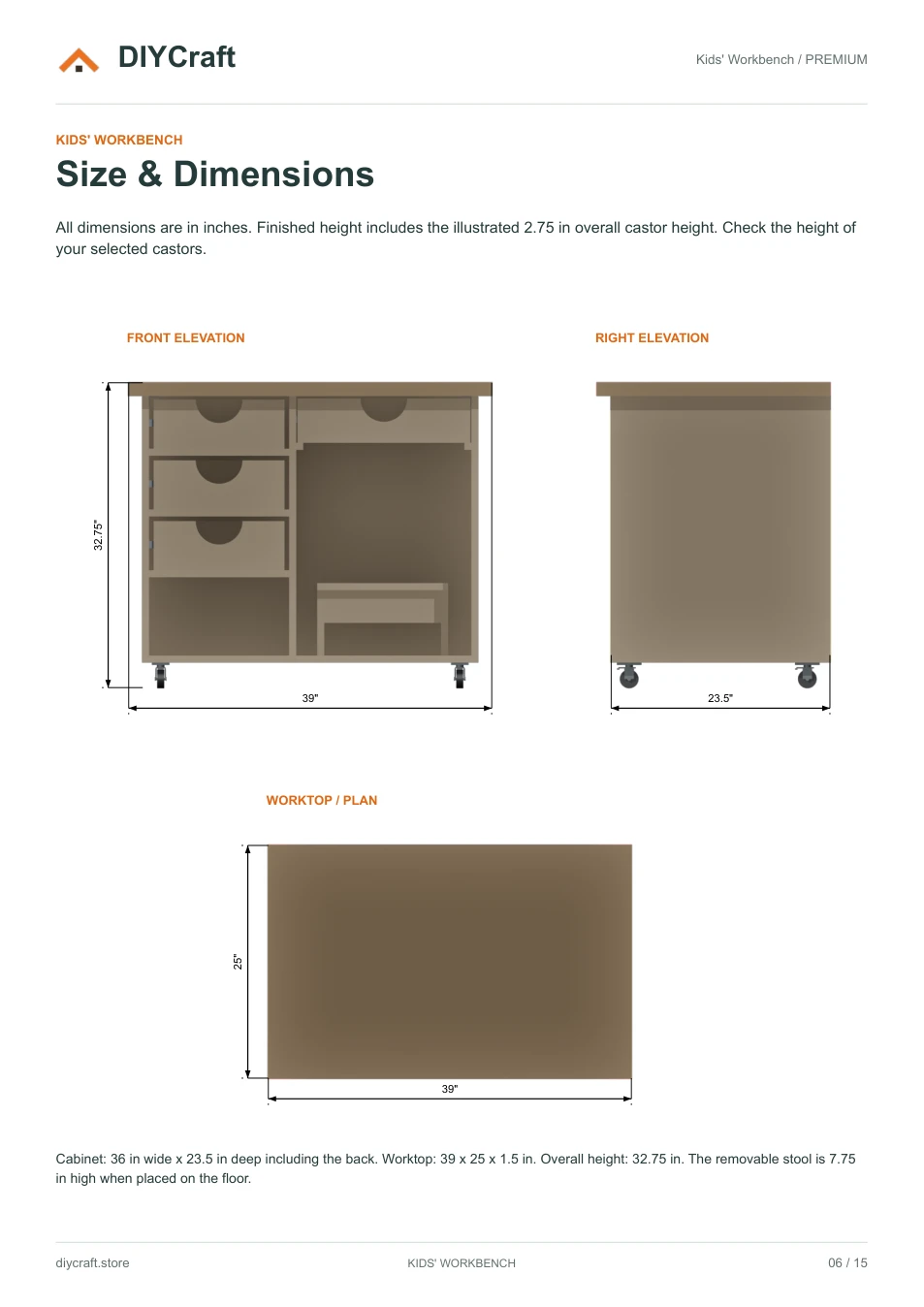

Premium page 6: overall dimensions
Premium page 8: panels and dowel layout
Premium page 13: stool parts and assembly
Dimensions and features
- Worktop
- 39 x 25 x 1.5 in
- Cabinet
- 36 in wide x 23.5 in deep including back
- Finished height
- 32.75 in with 2.75 in castor assemblies
- Storage bins
- Three; each 14 x 23 in outside footprint
- Drawer
- 18.5 x 23 in outside footprint
- Removable stool
- 14 x 14 in top; 7.75 in high
- Drawer and bin travel
- 12 in shown in the model
Fit and use
Choose hardware for the actual materials and intended use. Dry-fit the drawer and bins; install suitable stops and catches. Verify castor screws cannot protrude, lock the castors and check stability before use. Adult supervision is required; no child-safety certification or load rating is provided.
- Dimensions are shown in inches. Measure your stock and dry-fit before fastening.
- Build time, material costs and load capacity have not been verified in a physical build.
- Payhip handles payment and paid-file delivery. Keep your receipt email to recover your download.
- Personal project use, including sharing with your project tradespeople. No resale or public redistribution of the premium PDF.
